Description
Photometric solutions for lighting streets, highways, parking stations, railway platforms, pedestrian areas, parks, and bike paths and etc. Various types of power (80W up to 200W) and optical light distributions. Opening for maintenance without tools. Control: 1-10V, DALI, DSI, chronoSTEP. Housing: high-pressure die-cast aluminum, painted. Recommended mounting height: 6 – 15 m.
Do you want to know more?
Click to access our Contact Us page where you can send us an enquiry.
Product details
|
Type IRIS 2 LED
|
Power From 80 W to 200W
|
Material Heat sink: Cast aluminum, painted. Stainless steel screws
|
|
Optics Asymmetric optics lens (PMMA)
|
Optical cover Glass, thermally hardened
|
Tool-less Lid opening
Safe Maintenance Technology safety switch disconnects power on opening |
|
Protection against fogging The luminaire design incorporates a pressure-equalizing moisture/dust filter that prevents moisture condensation in the luminaire housing.
|
Installation Adjustable bracket: angle -15° +15°
Ø 42- 60mm, (Ø60-76 mm optional) |
Light source Power LED
|
|
Light color 2700K - 6500K
2700K or 3000K must be selected to meet IDA DarkSky Approved certification criteria |
Protection against light pollution 0 candela light emission above 90°
|
Chromatic tolerance (original MakAdams) Not higher than 5
|
|
Color Rendering Index Ra > 70
|
Color Grey RAL7015 or RAL7035
Black RAL9004 |
Efficacy Up to 168 lm/W
|
|
Operating temperature -40°C ≤ Ta ≤ +50°C
|
Life expectancy L/B L90 B10 >100000 h (Ta = 25°C)
|
Overvoltage with a variable surge protection N/L – 10kV, P/(N/L) - 10kV
|
|
Driver 180 – 264VAC, 176 – 280 VDC
|
Power factor (Cosφ) ≥ 0.95
|
Interfaces - one4all (DALI, DALI2, DT 6, DSI, switchDIM, corridorFUNCTION)
- near field communication (NFC) - ready2mains (configuration and dimming via mains) - U6Me2 (configuration of chronoSTEP 2 via mains) - NEMA, ZHAGA sockets (optional) |
|
Optional D4I, Zhaga, Nema, Photo Sensor, Motion Sensor.
|
CLO The light output of an LED module reduces over the course of its lifetime. The Constant Light Output (eCLO) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime.
|
Intelligent Temperature Guard (ITG) The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast.
|
|
External temperature management (ETM + NTC) ETM protects the LED module against thermal overstress. An external temperature sensor (NTC) detects the LED module temperature and the LED driver will limit the output current according to this temperature.
|
Maintenance Optical module sealed for life
No internal cleaning required |
Remarks Luminaries are ready to install
|
|

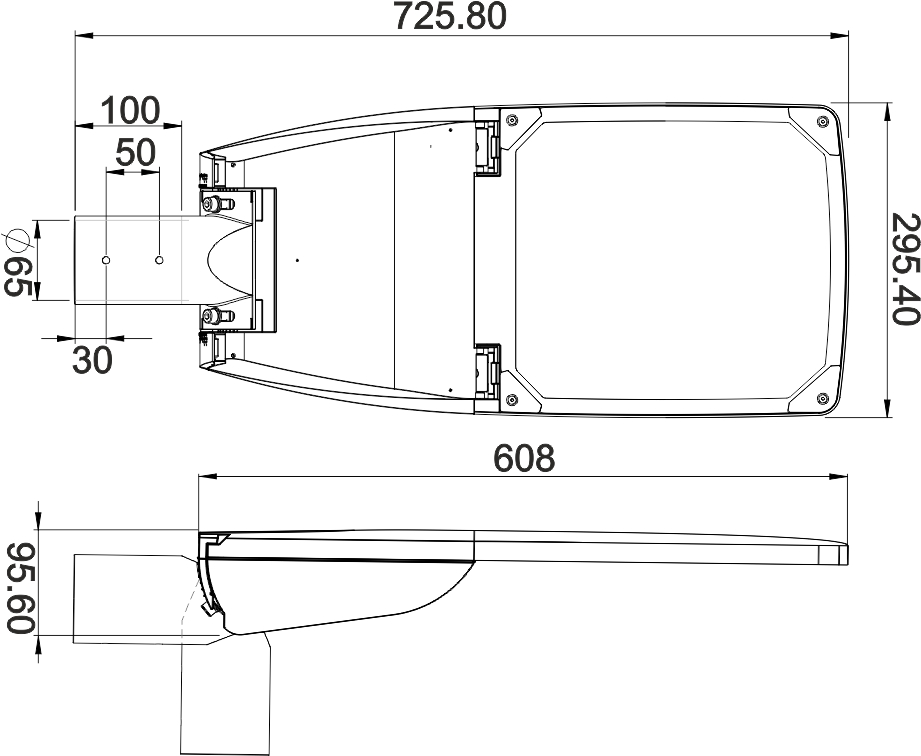

Size 608 x 295,40 x 95,60 mm
|
|
Type IRIS 2 LED
|
|
Power From 80 W to 200W
|
|
Material Heat sink: Cast aluminum, painted. Stainless steel screws
|
|
Optics Asymmetric optics lens (PMMA)
|
|
Optical cover Glass, thermally hardened
|
|
Tool-less Lid opening
Safe Maintenance Technology safety switch disconnects power on opening |
|
Protection against fogging The luminaire design incorporates a pressure-equalizing moisture/dust filter that prevents moisture condensation in the luminaire housing.
|
|
Installation Adjustable bracket: angle -15° +15°
Ø 42- 60mm, (Ø60-76 mm optional) |
|
Light source Power LED
|
|
Light color 2700K - 6500K
2700K or 3000K must be selected to meet IDA DarkSky Approved certification criteria |
|
Protection against light pollution 0 candela light emission above 90°
|
|
Chromatic tolerance (original MakAdams) Not higher than 5
|
|
Color Rendering Index Ra > 70
|
|
Color Grey RAL7015 or RAL7035
Black RAL9004 |
|
Efficacy Up to 168 lm/W
|
|
Operating temperature -40°C ≤ Ta ≤ +50°C
|
|
Life expectancy L/B L90 B10 >100000 h (Ta = 25°C)
|
|
Overvoltage with a variable surge protection N/L – 10kV, P/(N/L) - 10kV
|
|
Driver 180 – 264VAC, 176 – 280 VDC
|
|
Power factor (Cosφ) ≥ 0.95
|
|
Interfaces - one4all (DALI, DALI2, DT 6, DSI, switchDIM, corridorFUNCTION)
- near field communication (NFC) - ready2mains (configuration and dimming via mains) - U6Me2 (configuration of chronoSTEP 2 via mains) - NEMA, ZHAGA sockets (optional) |
|
Optional D4I, Zhaga, Nema, Photo Sensor, Motion Sensor.
|
|
CLO The light output of an LED module reduces over the course of its lifetime. The Constant Light Output (eCLO) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime.
|
|
Intelligent Temperature Guard (ITG) The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast.
|
|
External temperature management (ETM + NTC) ETM protects the LED module against thermal overstress. An external temperature sensor (NTC) detects the LED module temperature and the LED driver will limit the output current according to this temperature.
|
|
Maintenance Optical module sealed for life
No internal cleaning required |
|
Remarks Luminaries are ready to install
|
|
Size 608 x 295,40 x 95,60 mm
|
