Powerful and efficient Floodlight for Sport lighting. Up to 245 655 Lm / 1200-1650 W.

Reference Case with "ARENA 3"
Product configurator

Choose the info

Overview arrow
Downloads arrow
ARENA 3

Product Color

RAL 7040

Description

ARENA 3 s a premium-quality very powerful floodlight designed for large-scale indoor and outdoor applications, offering exceptional luminous efficiency of up to 165 Lm/W. Its advanced optics, durable construction and certified reliability ensure optimal performance. With superior light quality, rugged durability and easy installation, ARENA 3 is the ideal solution for professional lighting needs.

Applications

The ARENA 3 floodlight is designed for use in stadiums, arenas, golf courses and football fields. It is also suitable for large indoor and outdoor areas that require extensive illumination.

Technical information

Electrical
V
Input voltage
198–440 (VAC)
Hz
Frequency
50-60 Hz
W
Luminaire wattage
1200-1650
Cosφ
Power factor
≥ 0.95
Optical
Lm
Luminous flux
128436-245655
Lm/W
Luminous efficacy
Up to 165
CCT K
Color temperature
4000/5000/5700/6500
Ta
Performance temperature
- 40 °C ≤ Ta ≤ + 40 °C
CRI˚
Color rendering index
70, 80, 90
Number of LED’s 6X40 6X60 6X60 6X40 6X60 6X48 6X40
Power 1200 1200 1350 1500 1500 1500 1650
Luminous Flux, Lm 144000-189600 147600-194400 160650-203850 171000-223500 153615-211500 185585-243198 181500-239250
Efficacy, Lm/W 120-158 123-162 119-151 114-149 102-141 123-162 110-145
Luminaire dimensions/cm 65,2 X 66,4 X 44,9 65,2 X 66,4 X 44,9 65,2 X 66,4 X 44,9 65,2 X 66,4 X 44,9 65,2 X 66,4 X 44,9 65,2 X 66,4 X 44,9 65,2 X 66,4 X 44,9
Housing
Size
652 mm X 664 mm X 449 mm
Weight Gross
41,4 ( with driver 6.9) kg
Weight Net
39,3 ( with driver with driver 6.9) kg
Body material
Die-cast aluminium with built-in heat sink. Painted.
Installation
Adjustable bracket: angle -90° + 90°
Optics
Optical cover
Optical cover - extra clear tempered glass, thermally hardened (5 mm)
Light source
Power LED
Optics
50x50 mm (2x2), 12x12 mm (1x1),
Optics type
10°, 20°, 40°, 60°, asymmetric
Maintenance
Optical module sealed for life. No internal cleaning required
Protection against light pollution
Visor - Can be ordered separately
Driver
Input voltage
198–440 (VAC)
Apsaugos klasė
I
Surge protection
Driver standard STD (10kV).
Intelligent temperature Guard (ITG)
Over temperature protection. Tc: 93 °C at 230 VAC & 100 % load
Interfaces
DALI-2; DMX-RDM
Remarks
CLO
The light output of an LED module decreases over the course of its lifetime. The Constant Light Output (CLO) function compensates for this natural decline by continuously increasing the output current of the LED driver throughout its lifetime
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25°C)
Warranty
5 year
Recommended mounting height
up to 45 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
MET512
Rotating base
Code
Name
MET490
ARENA Visor
Code
Name
S180000/LASER
ARENA Positioning laser

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
SPORT LIGHTS 10˚
SPORT LIGHTS 17˚
SPORT LIGHTS 20˚
SPORT LIGHTS 23˚
SPORT LIGHTS 32˚
SPORT LIGHTS 40˚
SPORT LIGHTS 59˚
SPORT LIGHTS 60˚
SPORT LIGHTS AS83
SPORT LIGHTS AS84
SPORT LIGHTS AS85
SPORT LIGHTS AS104
SPORT LIGHTS AS105

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

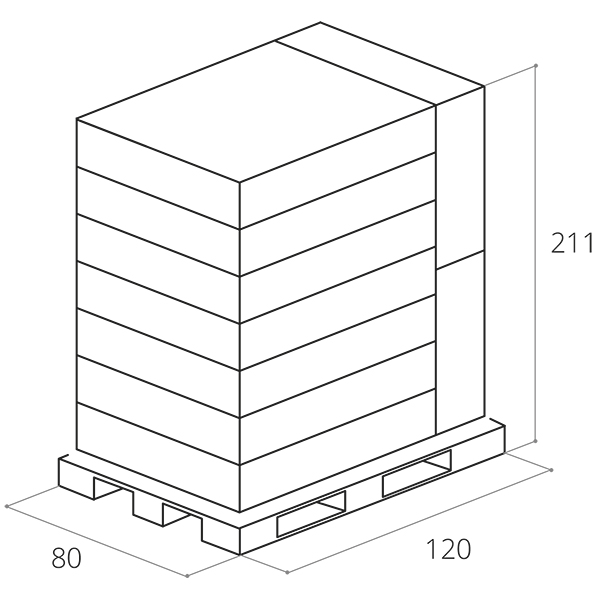

Standart pallet
Standart pallet
Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
120 X 80 X 211 1 7 9 353.7 373 2,026 0.4
