ARENA 1

Gallery navigation
Gallery navigation

Powerful and efficient Floodlight for Sport lighting. Up to 81 885 Lm / 400-550 W.

Reference Case with "ARENA 1"
Product configurator

Choose the info

Overview arrow
Downloads arrow
ARENA 1

Product Color

RAL 7040

Description

ARENA 1 is a premium-quality floodlight designed for large-scale indoor and outdoor applications, offering exceptional luminous efficiency of up to 165 Lm/W. Its advanced optics, durable construction and certified reliability ensure optimal performance. With superior light quality, rugged durability and easy installation, ARENA 1 is the ideal solution for professional lighting needs.

Applications

The ARENA1 floodlight is designed for use in stadiums, arenas, golf courses and football fields. It is also suitable for large indoor and outdoor areas that require extensive illumination.

Technical information

Electrical
V
Input voltage
198– 528 (VAC)
Hz
Rated voltage
50-60 Hz
W
Luminaire wattage
400-550
Cosφ
Power factor
≥ 0.95
Optical
Lm
Luminous flux
42800-81885
Lm/W
Luminous efficacy
Up to 165
CCT K
Color temperature
4000/5000/5700/6500
Ta
Performance temperature
- 40 °C ≤ Ta ≤ + 40 °C
CRI˚
Color rendering index
70, 80, 90
Number of LED’s 2X48 ir 2X60
Power 400-550
Luminous Flux, Lm 42812-81885
Efficacy, Lm/W 107-164
Housing

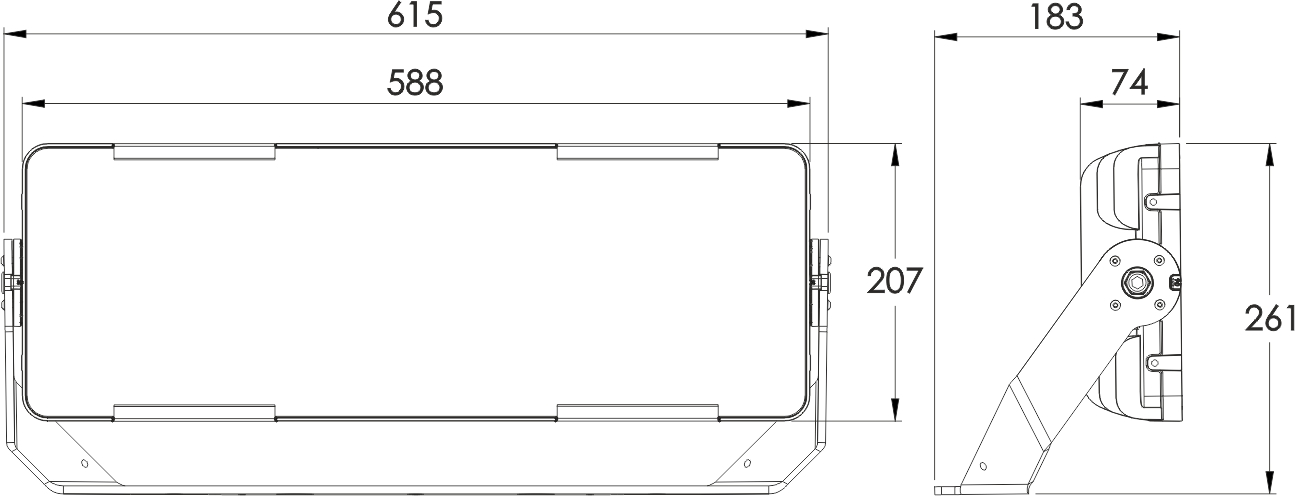

Size
615 mm x 261 mm x 183 mm
Weight Gross
15,5 ( with a 3,8 kg driver) kg
Weight Net
14,4 ( with a 3,8 kg driver) kg
Body material
Heat sink: Cast aluminum, painted
Protection against fogging
IK09
Installation
Adjustable bracket: angle -90° + 90°
Optics
Optical cover
Glass, thermally hardened, 4 mm
Light source
Power LED
Optics
50X50mm (2x2)
Optics type
10°, 20°, 40°, 60°, asymmetric
Maintenance
Optical module sealed for life. No internal cleaning required
Protection against light pollution
Visor - Can be ordered separately
Driver
Input voltage
198– 528 (VAC)
Surge protection
10 kV/6kV
Intelligent temperature Guard (ITG)
Over temperature protection. Tc: 93 °C at 230 VAC & 100 % load
Overvoltage with a variable surge protection
Built-in surge protection 10 kV
Interfaces
DALI-2; DMX-RDM
Remarks
CLO
The light output of an LED module decreases over the course of its lifetime. The Constant Light Output (CLO) function compensates for this natural decline by continuously increasing the output current of the LED driver throughout its lifetime
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25°C)
Warranty
5 year
Recommended mounting height
up to 45 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
MET512
Rotating base
Code
Name
MET490
ARENA Visor
Code
Name
S180000/LASER
ARENA Positioning laser

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
SPORT LIGHTS 10˚
SPORT LIGHTS 17˚
SPORT LIGHTS 20˚
SPORT LIGHTS 23˚
SPORT LIGHTS 32˚
SPORT LIGHTS 40˚
SPORT LIGHTS 59˚
SPORT LIGHTS 60˚
SPORT LIGHTS AS83
SPORT LIGHTS AS84
SPORT LIGHTS AS85
SPORT LIGHTS AS104
SPORT LIGHTS AS105

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Standart pallet
Standart pallet
Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
120 X 80 X 190 3 12 36 518 556.6 1.824 0.4
