Energy efficient solution for Street lighting. Up to 17760 Lm / 10-120 W.

Reference Case with "MPL"
Product configurator

Choose the info

Overview arrow
Downloads arrow
MPL

Product Color

RAL 7035
RAL 7015
RAL 9004

Description

MPL is an outdoor lighting solution for streets, highways, parking lots and more. It offers certified quality and high-efficiency LEDs for maximum performance. Available in power options ranging from 10W to 120W, it ensures precise lighting with adaptable optics. Built for durability (100,000 hours) and corrosion resistance (C4), MPL includes safety features and energy-saving dimming profiles. Eco-friendly with a low carbon footprint, it’s the perfect choice for sustainable outdoor lighting.

Applications

MPL is the perfect lighting solution for diverse outdoor environments, including streets, highways, parking lots, railway platforms, pedestrian zones, parks and bike paths.

Technical information

Electrical
V
Input voltage
180-264VAC
Hz
Rated voltage
50-60 Hz
W
Luminaire wattage
10 to 120
Cosφ
Power factor
≥ 0.95
Optical
Lm
Luminous flux
1339-17760
Lm/W
Luminous efficacy
Up to 170
CCT K
Color temperature
2700/3000/4000 and 5700 for pedestrian crossing
Ta
Performance temperature
-40°C ≤ Ta ≤ +50 °C 10-100 W -40 °C ≤ Ta ≤ +40 °C 110-120 W
CRI˚
Color rendering index
≥70
Number of LED’s 8 16 24 32
Power 10W 20W 20W 30W 40W 50W 30W 40W 50W 60W 70W 30W 40W 50W 60W 70W 80W 90W 100W 110W 120W
Luminous Flux, Lm 1340-1630 2420-2920 2640-3220 4140-4920 5320-6360 6350-7700 4200-4980 5560-6560 6750-8050 7860-9420 8890-10780 4230-5100 5600-6720 6850-8300 8100-9840 9310-11340 10480-12720 11610-13950 12600-15400 13310-16500 14280-17760
Efficacy, Lm/W 134-163 121-146 132-161 138-164 133-159 127-154 140-166 139-164 135-161 131-157 127-154 141-170 140-168 137-166 135-164 133-162 131-159 129-155 126-154 121-150 119-148
Housing

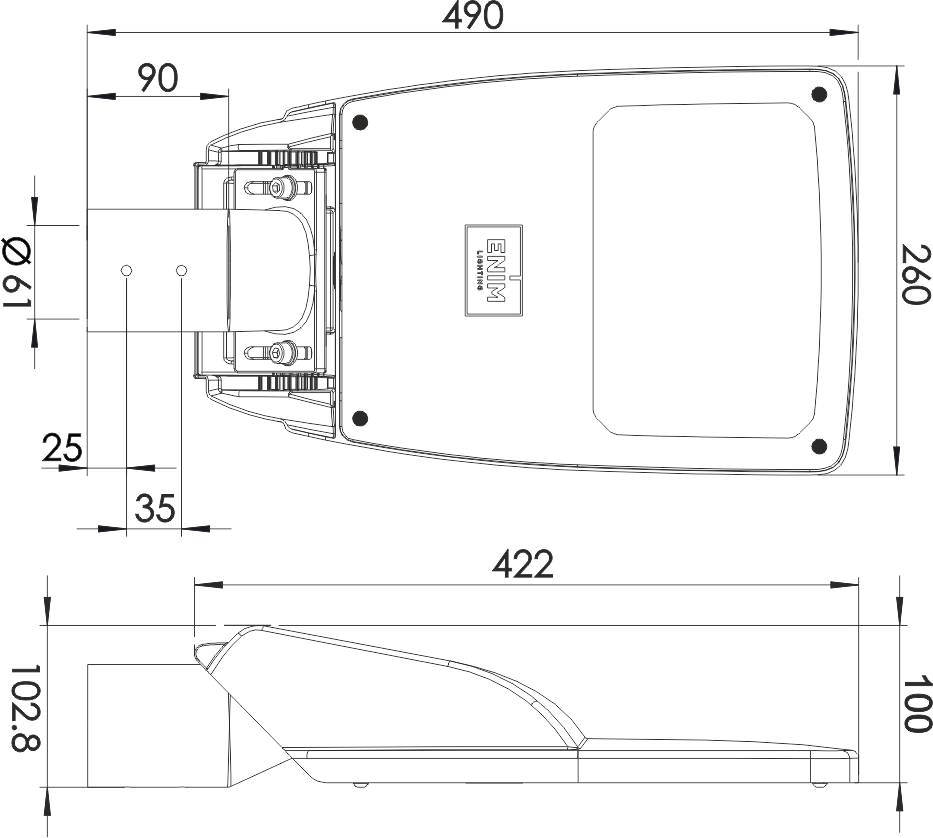

Size
422 mm x 260 mm x 100 mm
Weight Gross
5,3
Weight Net
5
Body material
Heat sink: cast aluminium, painted
Protection against fogging
0 candela light emission above 90°
Installation
Adjustable bracket: angle -20˚to +20˚/25˚, Ø 60-76 mm, Ø 42-60 mm
Optics
Optical cover
Tempered safety glass
Light source
OSRAM/LUMILEDS
Optics
Asymmetric optics lens
Optics type
Very carefully selected optics suppliers, the optics are transparent to ensure minimal light loss
Maintenance
Optical module sealed for life. No internal cleaning required
Protection against light pollution
0 candela light emission above 90°
Driver
Input voltage
180 – 264VAC
Surge protection
10 kV/6kV
Intelligent temperature Guard (ITG)
The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast
Overvoltage with a variable surge protection
N/L – 10 kV, P/(N/L) - 10 kV
Interfaces
One4all (DALI, DALI2, DT 6, DSI, switchDIM, corridorFUNCTION) - near field communication (NFC) - ready2mains (configuration and dimming via mains) - U6Me2 (configuration of chronoSTEP 2 via mains time dimming function), midnightdimming profiles
Sockets for various smart control sensors
D4I ZHAGA TOP-BOTTOM / D4I ZHAGA BOTTOM / D4I ZHAGA TOP / NEMA TOP
Remarks
CLO
The light output of an LED module reduces over the course of its lifetime. The Constant Light Output (eCLO) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
6 – 12 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
MET0169-1
MPL bracket Ø76mm RAL7035
MET0169-2
MPL bracket Ø76mm RAL7015
MET0169-3
MPL bracket Ø76mm RAL9005

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
OPTIC AS6
OPTIC AS8
OPTIC AS9
OPTIC AS14
OPTIC AS16
OPTIC AS17
OPTIC AS18
OPTIC AS19
OPTIC AS27
OPTIC AS28
OPTIC AS29
OPTIC AS30
OPTIC AS31
OPTIC AS32
OPTIC AS34
OPTIC AS37
OPTIC AS38
OPTIC AS40
OPTIC AS53
OPTIC AS54
OPTIC AS55
OPTIC AS56
OPTIC AS57
OPTIC AS58
OPTIC AS60
OPTIC AS61
OPTIC AS62
OPTIC AS65
OPTIC AS68
OPTIC AS69
OPTIC AS70
OPTIC AS71
OPTIC AS73
OPTIC AS74
OPTIC AS75
OPTIC AS76
OPTIC AS78
OPTIC AS81
OPTIC AS87
OPTIC AS91
OPTIC AS93

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Standart pallet
Standart pallet
Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
120 X 80 X 195 6 12 72 360 380.2 1.872 0.4
