Premium-class solution for Street lighting. Up to 10780 Lm / 10-70 W.

Reference Case with "IRIS 0"
Product configurator

Choose the info

Overview arrow
Downloads arrow
IRIS 0

Product Color

RAL 7035
RAL 7015
RAL 9004

Description

The IRIS 0 is a premium solution for public and residential street lighting, ensuring top-quality with all necessary EU certifications. Featuring high-efficiency LEDs and 41 optic options, it provides precise illumination. With a robust aliuminium housing, corrosion resistance class C4 (C5 additional) and a lifetime of up to 100,000 hours (L95 B10), IRIS 0 ensures long-lasting performance even in harsh environments. Its tool-free opening allows quick and cost-effective maintenance, while power options from 10W to 70W offer adaptability for diverse applications. Ideal for creating energy-efficient, eco – friendly, visually comfortable lighting.

Applications

IRIS 0 is ideal for a wide range of outdoor applications: streets, highway roads, parking lots, railway platforms, pedestrian areas, parks and bike paths, also for urban infrastructure or recreational spaces.

Technical information

Electrical
V
Input voltage
220-240
Hz
Rated voltage
50-60
W
Luminaire wattage
10 to 70
Cosφ
Power factor
≥0.95
Optical
Lm
Luminous flux
1350-10780
Lm/W
Luminous efficacy
Up to 170
CCT K
Color temperature
2700/3000/4000 and 5700 for pedestrian crossing
Ta
Performance temperature
10-60 W: -40°C ≤ Ta ≤ +50°C; 70 W: -40°C ≤ Ta ≤ +40°C
CRI˚
Color rendering index
≥70
Number of LED’s 8 16 24
Power 10W 20W 10W 20W 30W 40W 50W 30W 40W 50W 60W 70W
Luminous Flux, Lm 1350-1680 2400-3020 1270-1560 2760-3320 4080-4980 5200-6440 6400-7800 4140-5100 5400-6640 6650-8300 7740-9600 8820-10780
Efficacy, Lm/W 135-168 120-151 127-156 138-166 136-166 130-161 128-156 138-170 135-166 133-166 129-160 126-154
Housing

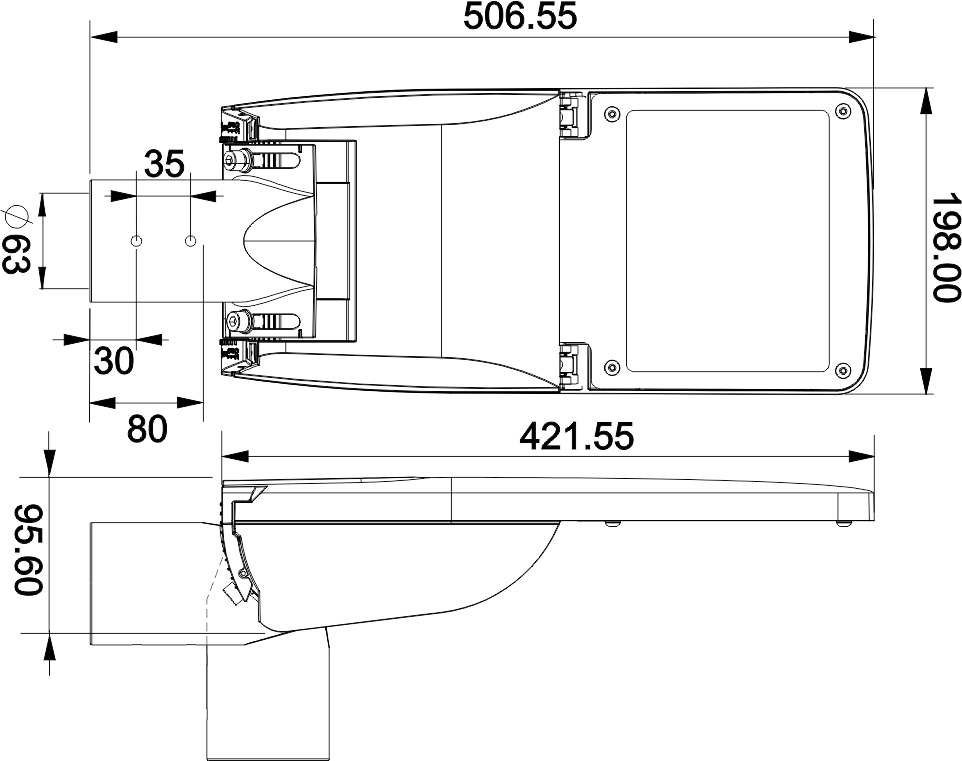

Size
421,6 x 198 x 95,6 mm
Weight Gross
3,9 kg
Weight Net
3,6 kg
Body material
Heat sink: cast aluminium, painted
Tool-less
Lid opening and driver change
Protection against fogging
The luminaire design incorporates a pressure-equalizing moisture/dust filter that prevents moisture condensation in the luminaire housing
Installation
Adjustable bracket: angle - 20 + 25 , Ø 60-76 mm, Ø 42-60 mm
Optics
Optical cover
Glass, thermally hardened (4 mm)
Light source
OSRAM/LUMILEDS
Optics
Asymmetric optics lens
Optics type
Very carefully selected optics suppliers, the optics are transparent to ensure minimal light loss
Maintenance
Optical module sealed for life. No internal cleaning required
Protection against light pollution
0 candela light emission above 90°
Driver
Input voltage
Input 180-264 VAC, 100-305 VAC, 176-280 VDC (depending on the driver in use)
Surge protection
10 kV/6 kV
Intelligent temperature Guard (ITG)
The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast. Depending on the luminaire design, the ITG operates at about 5 to 10 °C above tc temperature. If temperature threshold values are exceeded, the LED output current is limited.
Overvoltage with a variable surge protection
N/L – 10kV, P/(N/L) - 10kV
Interfaces
one4all (DALI, DALI2, DT 6, DSI, switchDIM, corridorFUNCTION) - near field communication (NFC) - ready2mains (configuration and dimming via mains) - U6Me2 (configuration of chronoSTEP 2 via mains time dimming function), midnight dimming profiles
Sockets for various smart control sensors
D4I ZHAGA TOP-BOTTOM / D4I ZHAGA BOTTOM / D4I ZHAGA TOP / NEMA TOP
Remarks
CLO
The light output of an LED module reduces over the course of its lifetime. The Constant Light Output (eCLO) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime
Power factor (Cosφ)
≥0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
4-12 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
MET474-1
IRIS 0 bracket Ø76mm RAL7035
MET474-2
IRIS 0 bracket Ø76mm RAL7015
MET474-3
IRIS 0 bracket Ø76mm RAL9004

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

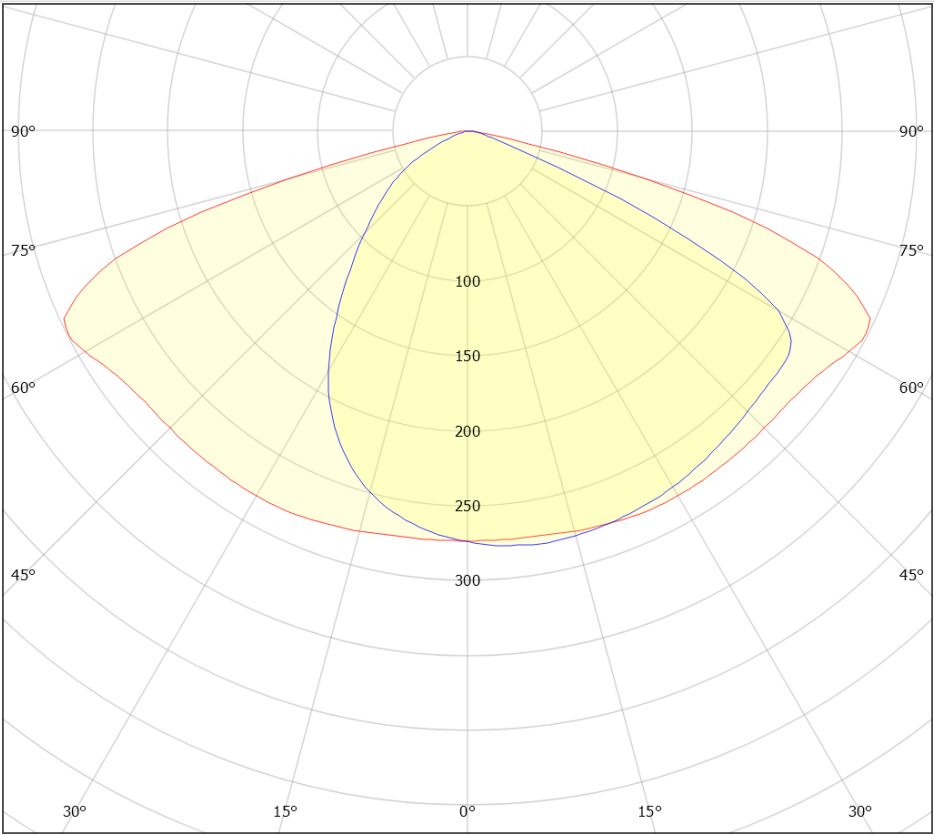

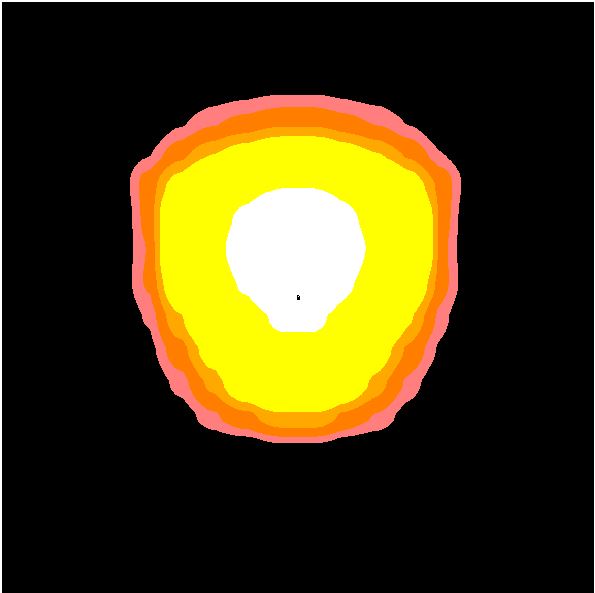

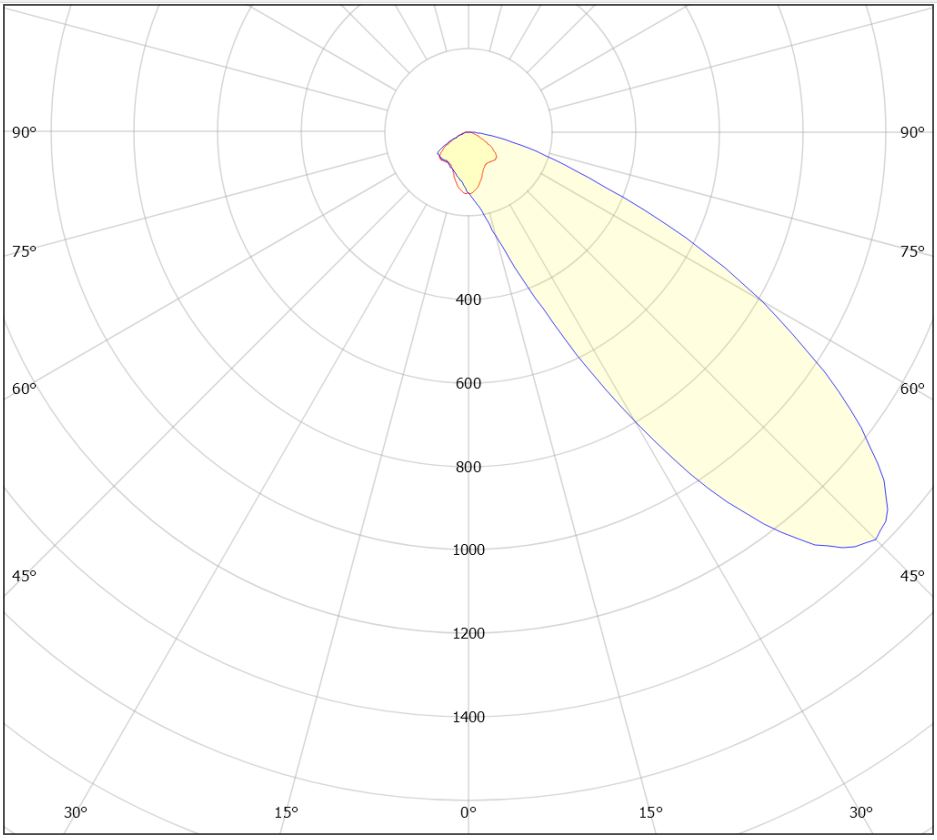

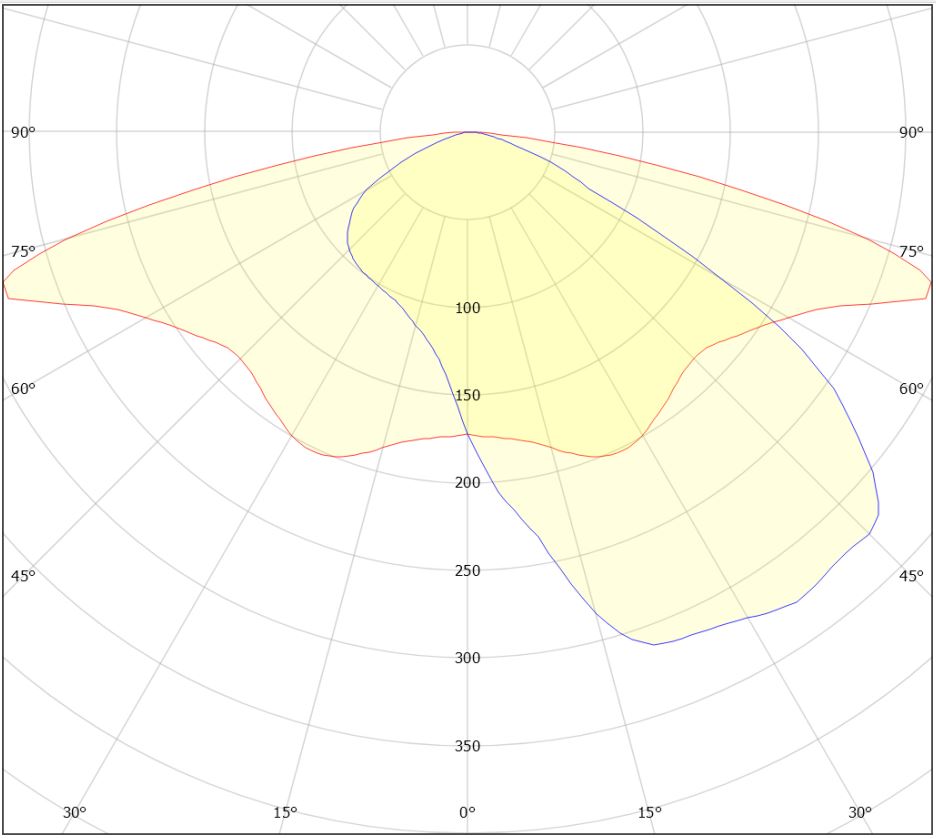

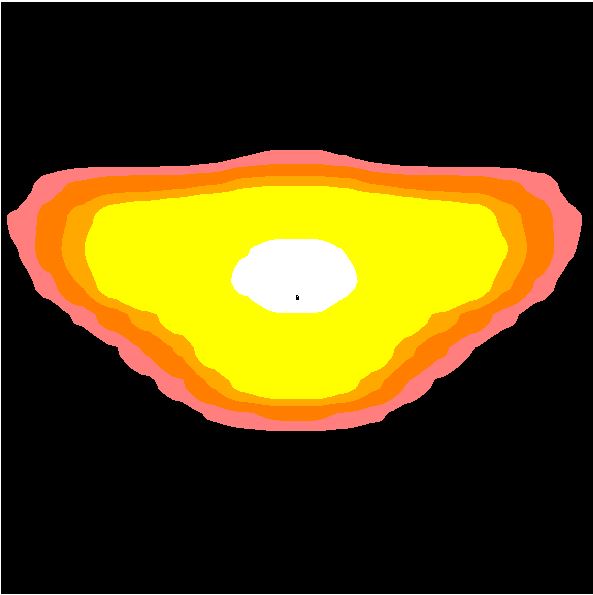

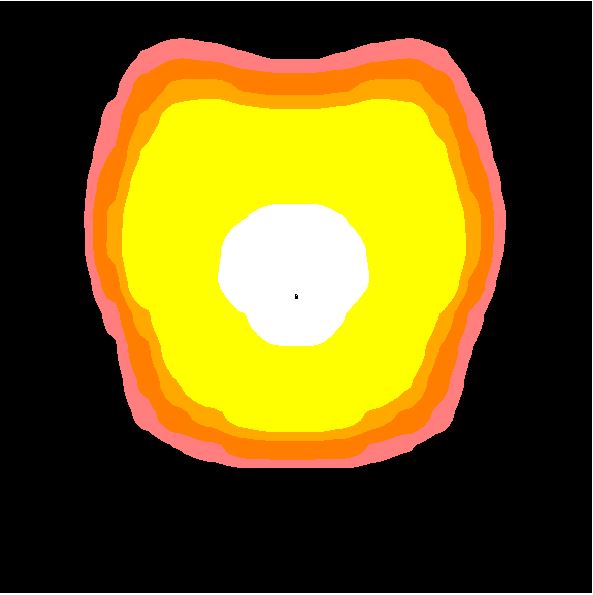

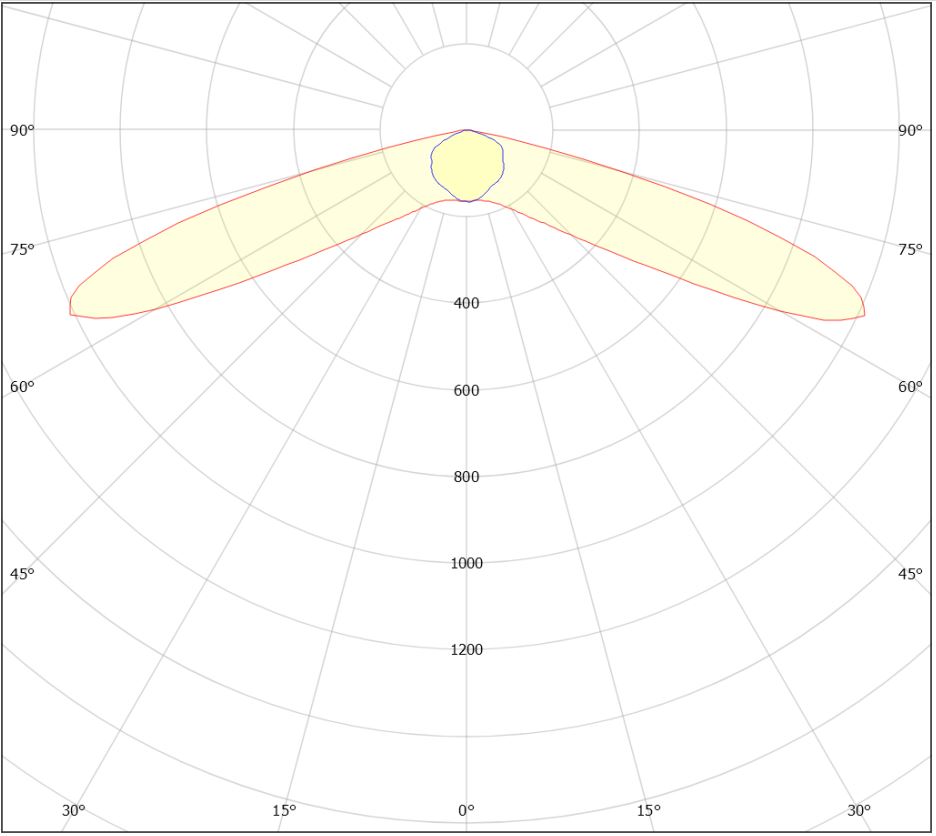

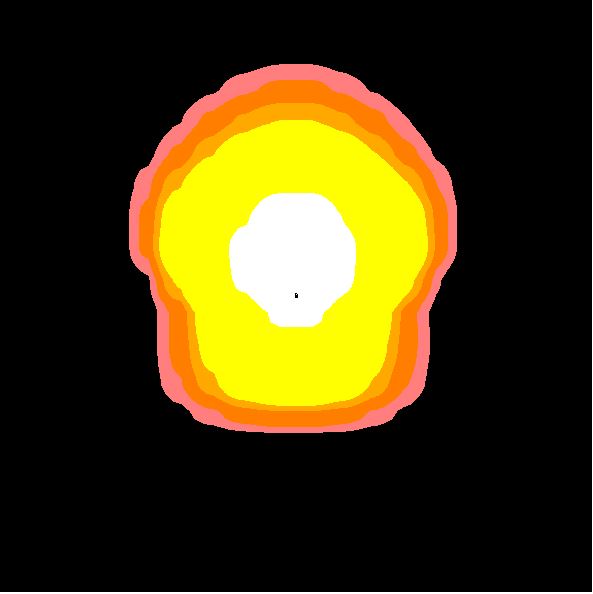

OPTIC AS6
OPTIC AS8
OPTIC AS9
OPTIC AS14
OPTIC AS16
OPTIC AS17
OPTIC AS18
OPTIC AS19
OPTIC AS27
OPTIC AS28
OPTIC AS29
OPTIC AS30
OPTIC AS31
OPTIC AS32
OPTIC AS34
OPTIC AS37
OPTIC AS38
OPTIC AS40
OPTIC AS53
OPTIC AS54
OPTIC AS55
OPTIC AS56
OPTIC AS57
OPTIC AS58
OPTIC AS60
OPTIC AS61
OPTIC AS62
OPTIC AS65
OPTIC AS68
OPTIC AS69
OPTIC AS70
OPTIC AS71
OPTIC AS73
OPTIC AS74
OPTIC AS75
OPTIC AS76
OPTIC AS78
OPTIC AS81
OPTIC AS87
OPTIC AS91
OPTIC AS93

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

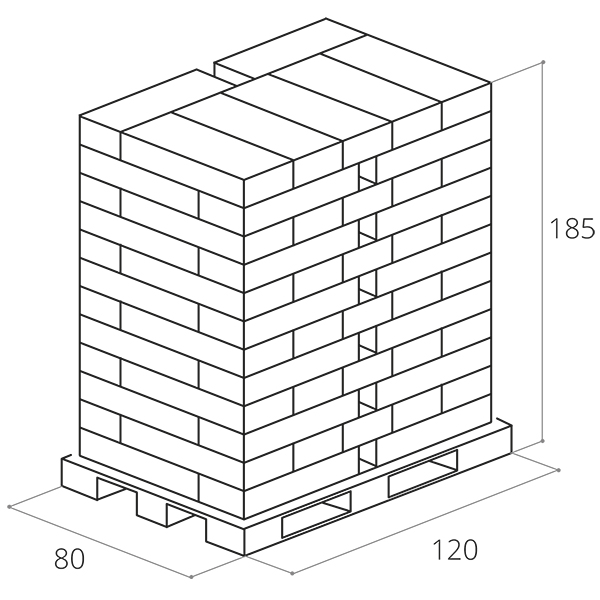

Standart pallet
Standart pallet
Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
120 X 80 X 185 7 12 84 302.4 323.8 1.776 0.4
