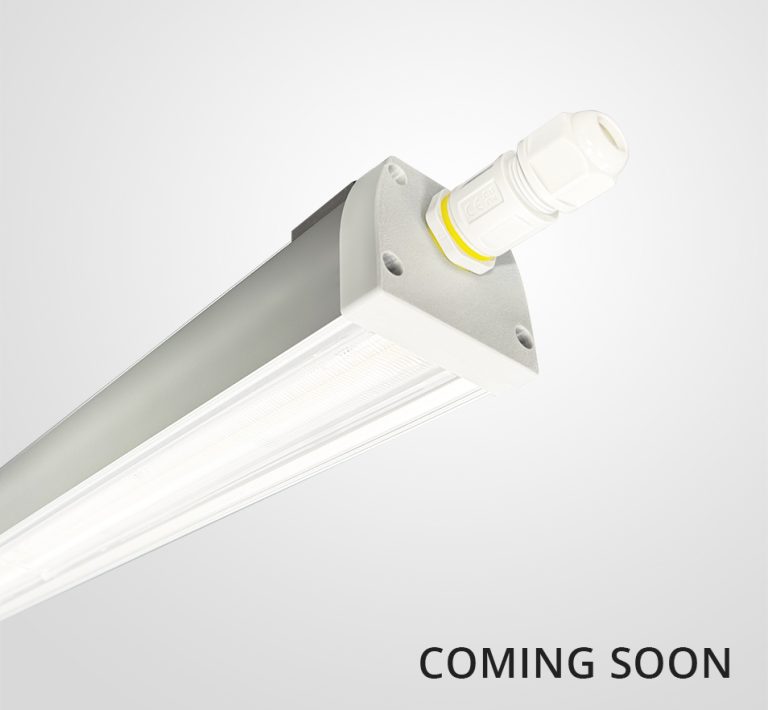

INDUS 2 EVO OPT44
Industrial IP44 luminare for replacement of traditional light sources or for low bay applications
Choose the info
Product Color
Description
Industrial low-bay luminaire INDUS 2 EVO OPT44 designed for energy-efficient and precise lighting. With DALI control, an IP44 protection rating and operation in temperatures ranging from -20°C to +50°C, it delivers durability and performance in demanding environments. Available in a range of 33 W to 83 W, INDUS 2 EVO OPT44 easily adapts to different lighting requirements and offers flexible installation options, both pendant (with optional extended cable) and floor mounting.
Applications
INDUS 2 EVO OPT44 luminaires are used across various industrial and commercial environments, including warehouses, terminals, industrial refrigerators, shops, food and medical facilities, furniture manufacturing, car-care centers and parking areas.
Technical information
| Number of LED’s | 2X45 | 3X45 | 4X45 | 5X45 | 6X45 | 7X45 | ||||||||||||||||||
| Power | 19 | 38 | 21 | 42 | 29 | 57 | 32 | 63 | 38 | 76 | 42 | 84 | 48 | 95 | 53 | 105 | 57 | 114 | 53 | 127 | 67 | 133 | 74 | 148 |
| Luminous Flux, Lm | 3211 | 6156 | 3612 | 7014 | 4901 | 9234 | 5504 | 10521 | 6422 | 12312 | 7224 | 14028 | 8064 | 15295 | 9063 | 17430 | 9519 | 18240 | 9010 | 20955 | 11122 | 21147 | 12506 | 24272 |
| Efficacy, Lm/W | 169 | 162 | 172 | 167 | 169 | 162 | 172 | 167 | 169 | 162 | 172 | 167 | 168 | 161 | 171 | 166 | 167 | 160 | 170 | 165 | 166 | 159 | 169 | 164 |
| Luminaire dimensions/cm | 60,4x6,5x6,0 | 60,4x6,5x6,0 | 60,4x6,5x6,0 | 60,4x6,5x6,0 | 89,4x6,5x6,0 | 89,4x6,5x6,0 | 89,4x6,5x6,0 | 89,4x6,5x6,0 | 118,4x6,5x6,0 | 118,4x6,5x6,0 | 118,4x6,5x6,0 | 118,4x6,5x6,0 | 144,2x6,5x6,0 | 144,2x6,5x6,0 | 144,2x6,5x6,0 | 144,2x6,5x6,0 | 176,4x6,5x6,0 | 176,4x6,5x6,0 | 176,4x6,5x6,0 | 176,4x6,5x6,0 | 205,4x6,5x6,0 | 205,4x6,5x6,0 | 205,4x6,5x6,0 | 205,4x6,5x6,0 |
| Luminaire dimensions/ cm | Pallet size/cm L*W*H | Luminaires per row, units | Number of rows on the pallet | QTY per pallet/pcs | Kg per pallet | Volume per pallet, m3 | LDM, m | ||
| Net | Gross | ||||||||
| I | 60,4x6,5x6,0 | 120x80x180 | 10 | 17 | 170 | 287 | 338 | 1.72 | 0,4 |
| II | 89,4x6,5x6,0 | 120x80x170 | 10 | 17 | 170 | 304 | 372 | 1.64 | 0,4 |
| III | 118,4x6,5x6,0 | 120x80x150 | 10 | 15 | 150 | 330 | 390 | 1.44 | 0,4 |
| IIII | 147,4x6,5x6,0 | 150x80x140 | 10 | 14 | 140 | 393 | 561 | 1.68 | 0.5 |
| Package size/cm L*W*H | Kg per package | Volume per package, m3 | ||
| Net | Gross | |||
| I | 64,8X9,0X8,0 | 1,6 | 1,9 | 0,0047 |
| II | 94,7X9,0X8,0 | 1,7 | 2,1 | 0,0069 |
| III | 123,6X9,0X8,0 | 2,1 | 2,5 | 0,0089 |
| IIII | 152,5X9,0X8,0 | 2,7 | 3,3 | 0,0110 |
| IIIII | 181,4X9,0X8,0 | 3,3 | 3,9 | 0,0131 |
| IIIIII | 210,3X9,0X8,0 | 3,8 | 4,7 | 0,0152 |
