CYBER FL

DSCF0361
DSCF0351
DSCF0353
DSCF0360
DSCF0361
Gallery navigation
Gallery navigation

Premium quality Floodlight. From 1200 to 11360Lm and 10W - 80W.

Reference Case with "CYBER FL"
Product configurator

Choose the info

Overview arrow
Downloads arrow
CYBER FL

Product Color

RAL 7035
RAL 7015
RAL 9004

Description

The CYBER FL floodlights offer premium quality, exceptional up to 162 lm/W efficiency and a 10-80W power range. Designed for durability, they feature corrosion resistance class C4 (optional C5) and a robust aluminum housing, ensuring reliable performance in harsh conditions. With a 100,000-hour lifespan and EPD certification, CYBER FL floodlights provide a sustainable, low-maintenance lighting solution for large-scale outdoor and industrial applications.

Applications

The CYBER FL floodlights excel in providing powerful and and reliable illumination in airports, seaports, parking lots, playgrounds, stadiums, tunnels and underground passages, large warehouses and industrial areas.

Technical information

Electrical
V
Input voltage
220-240
Hz
Frequency
50-60 Hz
W
Luminaire wattage
10-80
Cosφ
Power factor
≥ 0.95
Optical
Lm
Luminous flux
1200-12500
Lm/W
Luminous efficacy
Up to 162
CCT K
Color temperature
2700/3000/4000/5000/5700/6500
Ta
Performance temperature
- 40 °C ≤ Ta ≤ + 50 °C
CRI˚
Color rendering index
≥70
Number of LED’s 8 16 24
Power 10W 20W 30W 40W 50W 60W 70W 80W
Luminous Flux, Lm 1310-1430 2480-2700 3720-4350 4720-5360 5600-6900 7440-8100 8400-9100 9440-10160
Efficacy, Lm/W 131-143 124-135 124-145 118-134 112-138 124-135 120-130 118-127
Luminaire dimensions/cm 22,7 x 29,7 x 9,1 22,7 x 29,7 x 9,1 22,7 x 29,7 x 9,1 22,7 x 29,7 x 9,1 22,7 x 29,7 x 9,1 22,7 x 29,7 x 9,1 22,7 x 29,7 x 9,1 22,7 x 29,7 x 9,1
Housing

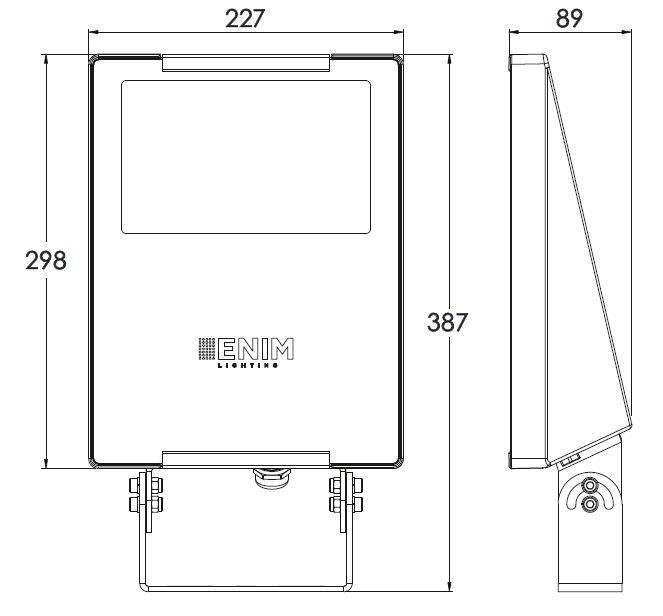

Size
227 mm x 297 mm x 91 mm
Weight Gross
5.5 kg
Weight Net
5.0 kg
Body material
Heat sink: Cast aluminum, painted
Installation
Adjustable bracket: angle -90° + 90°
Optics
Optical cover
Tempered Glass. 5mm.
Light source
LED
Maintenance
Optical module sealed for life No internal cleaning required
Driver
Input voltage
220-240
Intelligent temperature Guard (ITG)
The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast
Remarks
CLO
Additional option: the light output of an LED module reduces over the course of its lifetime. The Constant Light Output (CLO) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime.
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 3
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
Up to 12 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
CYBER FL AS27
CYBER FL AS32
CYBER FL AS71
CYBER FL AS73
CYBER FL AS75
CYBER FL AS81

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Luminaire dimensions/ cm Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
22,7 x 29,7 x 9,1 120x80x180 4 15 60 276 306 1,728 0,96
Package size/cm L*W*H Kg per package Volume per package, m3
Net Gross
26.0 x 34.0 x 12.0 4.6 5.1 0.0107
