ZLISS

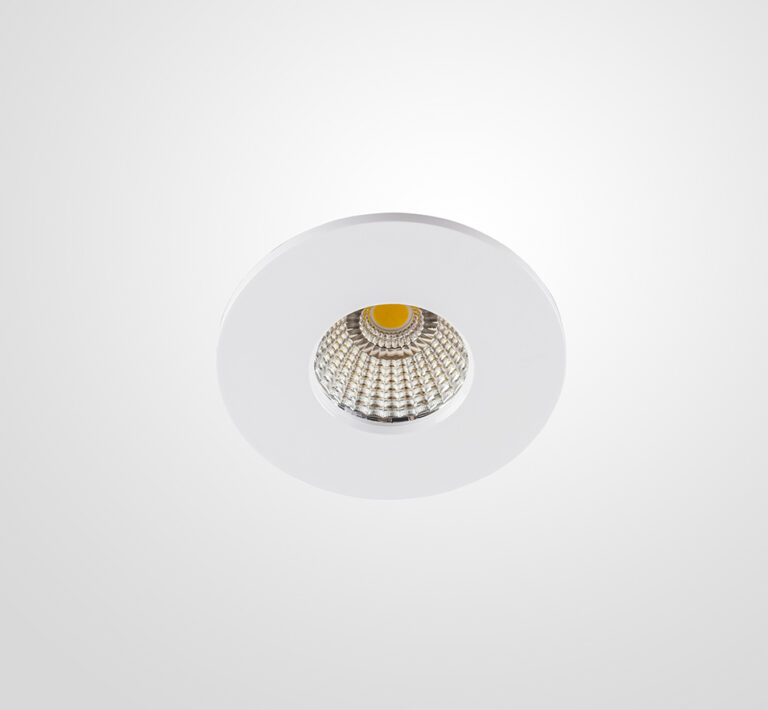

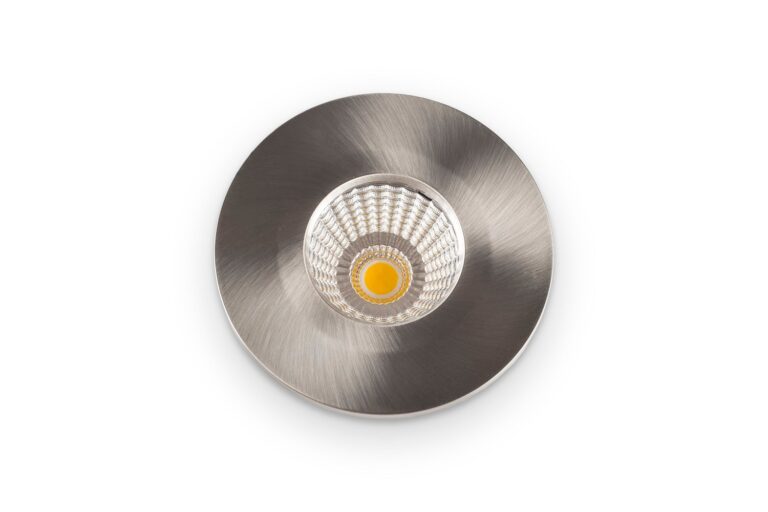

ZLISS – IP65 rated downlight for wet premises
Choose the info
Overview
Overview
Dimensions
Accessories
Photometry
Logistic info
Downloads
Product Color
Description
Shallow depth of the product to fit small spaces, IP65 rated (from the bottom side), mains dimming and 1-10V dimming applications, perfect for standard ceiling height as well as vaulted ceilings.
Applications
ZLISS is a downlight installed into a hollow opening in a ceiling, directing a beam of light downward as either a broad floodlight or a narrow spotlight. This downlights use LED technology for energy efficiency and are available in recessed, surface-mounted, or adjustable designs to suit various architectural needs.
Technical information
Electrical
V
Input voltage
220-240
Hz
Frequency
50-60 Hz
W
Luminaire wattage
8,3
Cosφ
Power factor
≥ 0,95
Optical
Lm
Luminous flux
up to 847
Lm/W
Luminous efficacy
102
CCT K
Color temperature
4000
Ta
Performance temperature
-25°C ≤ Ta ≤ +50°C
CRI˚
Color rendering index
≥80
| Number of LED’s | 1 |
| Power | 8,3 |
| Luminous Flux, Lm | 847 |
| Efficacy, Lm/W | 102 |
| Luminaire dimensions/cm | 8,8x8,8x5,0 |
Housing
Size
88x88x50 mm
Weight Gross
0,30
Weight Net
0,25
Body material
CASING - electrostatically painted aluminium; standard colour - white
DIFFUSER - PC
Installation
Into suspended ceilings
Optics
Light source
COB
Optics
Symmetric optics lens
Optics type
60°
Maintenance
Optical module sealed for life. No internal cleaning required

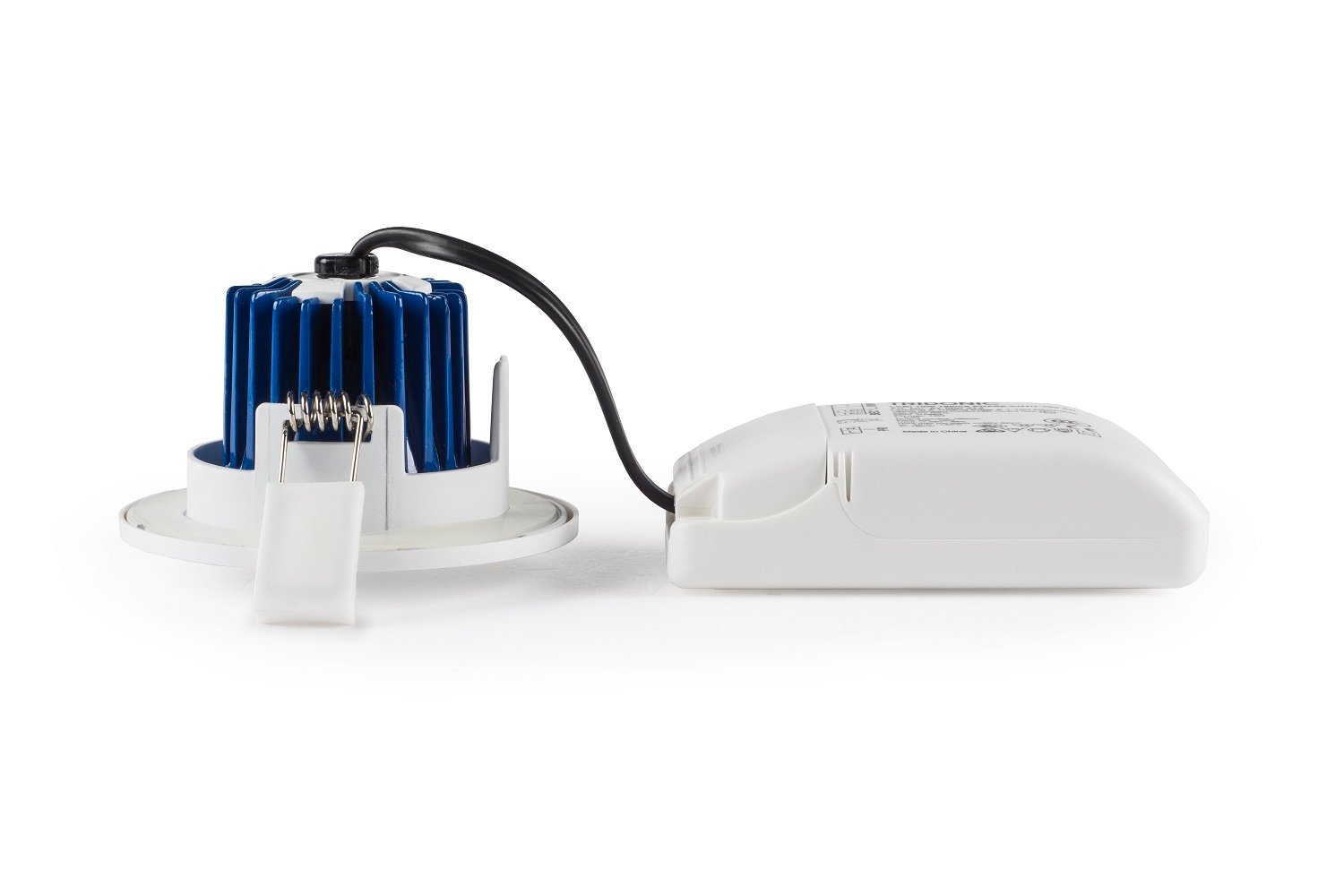

Driver
Input voltage
220-240
Interfaces
0-100% DIMMABLE
Remarks
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 3
Life expectancy L/B
L90 B10 by 70000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
1-3
Downloads
Downloads
Downloads

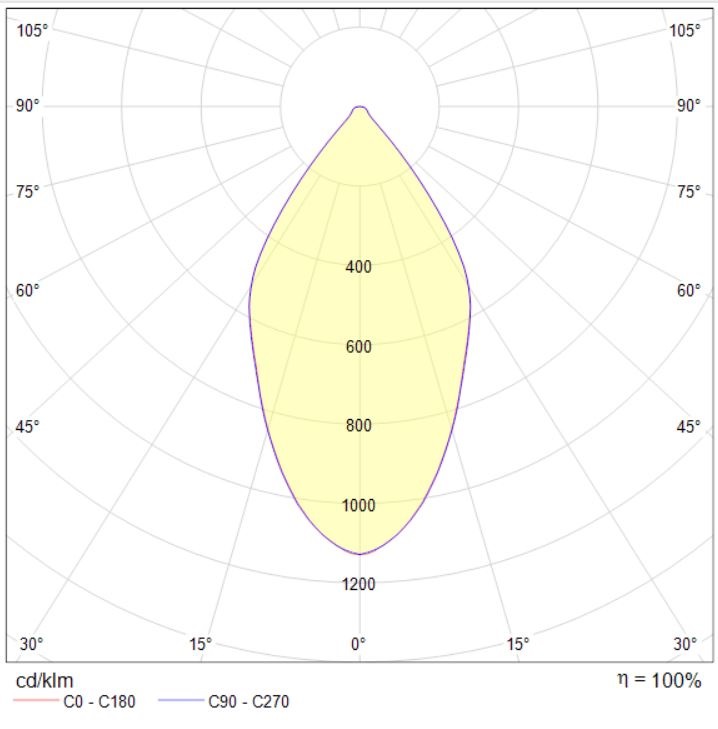

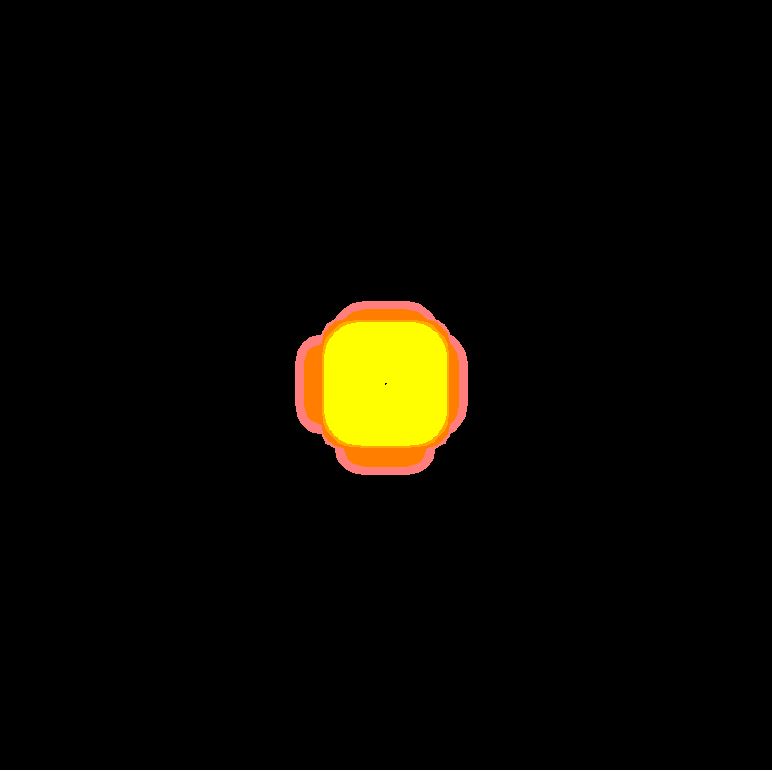

ZLISS 60°
Downloads
| Luminaire dimensions/ cm | Pallet size/cm L*W*H | Luminaires per row, units | Number of rows on the pallet | QTY per pallet/pcs | Kg per pallet | Volume per pallet, m3 | LDM, m | |
| Net | Gross | |||||||
| 10 x 10 x 10 | 120 x 80 x 180 | 50 | 15 | 750 | 188 | 225 | 1.72 | 0.4 |
