Premium quality Park LED luminaires. From 1200 to 12000Lm and 10W - 100W.

More detailed information is being prepared. Please contact us to find out more

Choose the info

Overview arrow
Downloads arrow

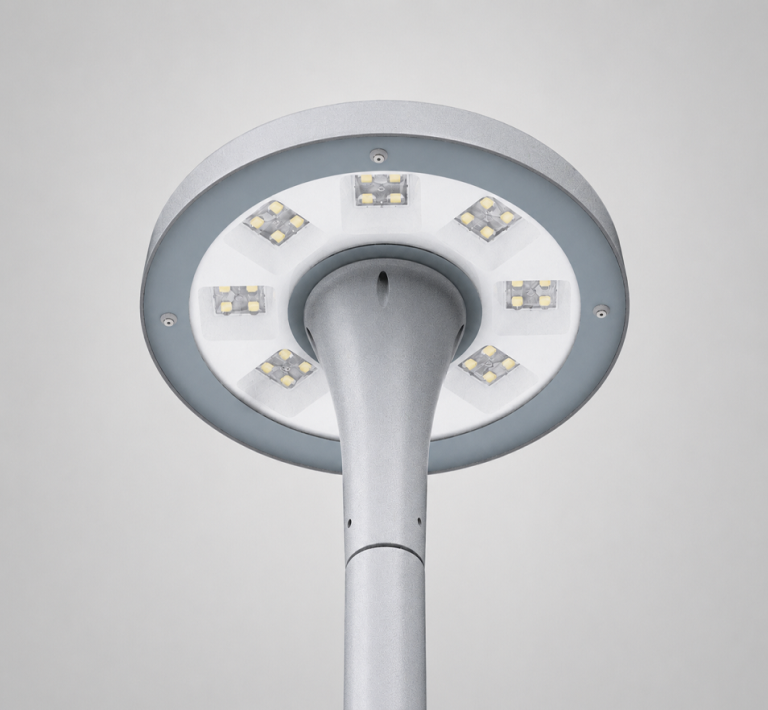

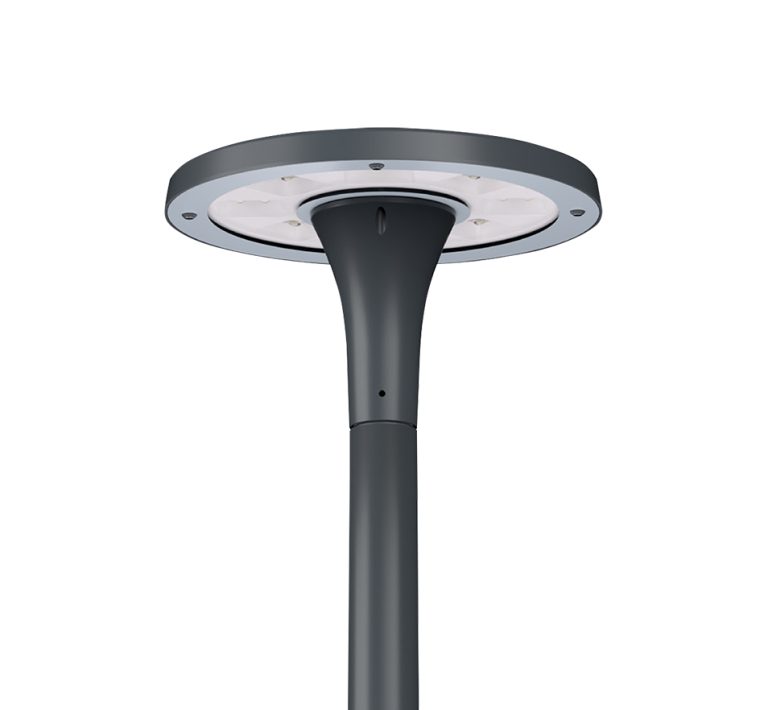

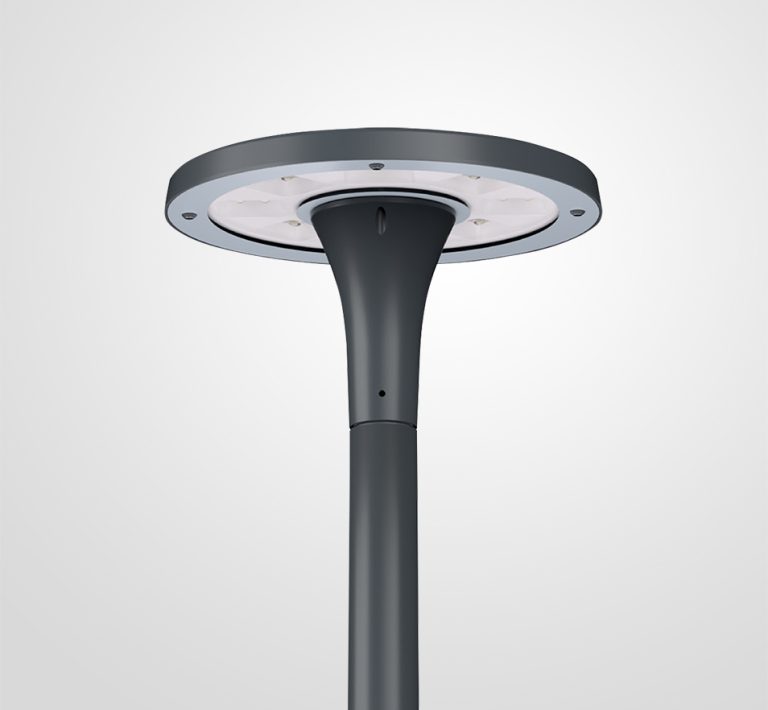

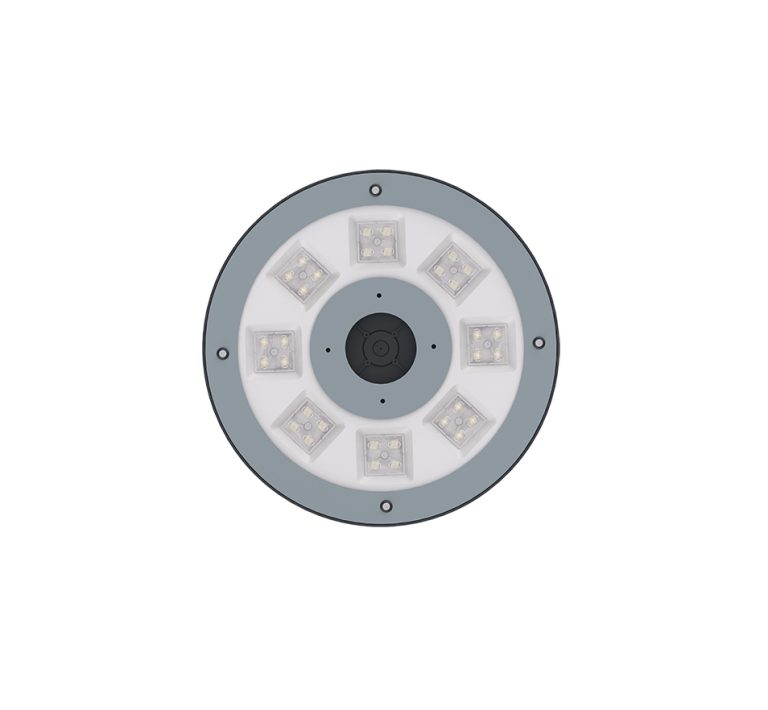

TERA

Product Color

RAL 7016

Description

TERA LED luminaires are designed to illuminate pedestrian paths, squares, parks, and other public spaces, combining aesthetics with high energy efficiency. They feature the following key characteristics. The die-cast aluminum housing, LEDs, and technological solutions ensure a long service life. Options for different color temperatures and color rendering indexes (CRI) are available. Standard power ranges from 10W to 100W.

Applications

TERA LED luminaires are designed to enhance the environment with their aesthetic appearance while ensuring uniform, shadow-free lighting.

Technical information

Electrical
V
Input voltage
220-240
Hz
Frequency
50-60 Hz
W
Luminaire wattage
10-100
Cosφ
Power factor
≥ 0.95
Optical
Lm
Luminous flux
1200-12000
Lm/W
Luminous efficacy
Up to 120
CCT K
Color temperature
2700/3000/4000/5000/5700/6500
Ta
Performance temperature
- 40 °C ≤ Ta ≤ + 50 °C
CRI˚
Color rendering index
≥70
Housing
Size
450mm x H269 mm x 60 mm
Weight Gross
5,5 kg
Weight Net
6,5 kg
Body material
Die-cast aluminium housing. Clear PC diffuser.
Protection against fogging
IP65
Optics
Optical cover
Clear PC diffuser.
Light source
LED
Maintenance
Optical module sealed for life No internal cleaning required
Remarks
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Luminaire dimensions/ cm Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
45,0 x H55,0 x 6,0 120x80x180 6 2 12 81 93 1,728 0,4
Package size/cm L*W*H Kg per package Volume per package, m3
Net Gross
60.0 x H70.0 x 15,0 5,5 6,5 0,063
