Universal lighting solution for small Streets. Up to 7300 Lm / 10-50 W .

Reference Case with "SPL-G"
Product configurator

Choose the info

Overview arrow
Downloads arrow
SPL-G

Product Color

RAL 7035
RAL 7015
RAL 9004

Description

The SPL-G outdoor lighting fixture stands out for its versatility and suitability for various locations, especially small streets in residential areas. Designed to meet all EU road standards, it features adjustable power (10W–50W), adaptable optics and high-efficiency LEDs for precise, energy-saving illumination. With a 100,000-hour lifespan, corrosion-resistant housing and an EPD certification, it ensures long-term durability and sustainability at an excellent price-to-quality ratio.



Applications

The SPL-G is a versatile outdoor lighting solution ideal for small residential streets and various applications. It could be successfully used in: streets, highway roads, parking lots, railway platforms, pedestrian areas, parks and bike paths, as well as urban infrastructure or recreational spaces.

Technical information

Electrical
V
Input voltage
220-240
Hz
Rated voltage
50-60 Hz
W
Luminaire wattage
10 to 50
Cosφ
Power factor
≥ 0.95
Optical
Lm
Luminous flux
1386-7300
Lm/W
Luminous efficacy
Up to 166
CCT K
Color temperature
2700/3000/4000/5000
Ta
Performance temperature
-40 °C ≤ Ta ≤ +50 °C 10-40 W -40 °C ≤ Ta ≤ +45 °C 45-50 W
CRI˚
Color rendering index
≥70
Number of LED’s 8 16
Power 10W 20W 10W 20W 30W 40W 50W
Luminous Flux, Lm 1390-1660 2580-3080 1400-1710 2720-3320 3990-4830 5040-6160 6050-7300
Efficacy, Lm/W 139-166 129-154 140-171 136-166 133-161 126-154 121-146
Housing

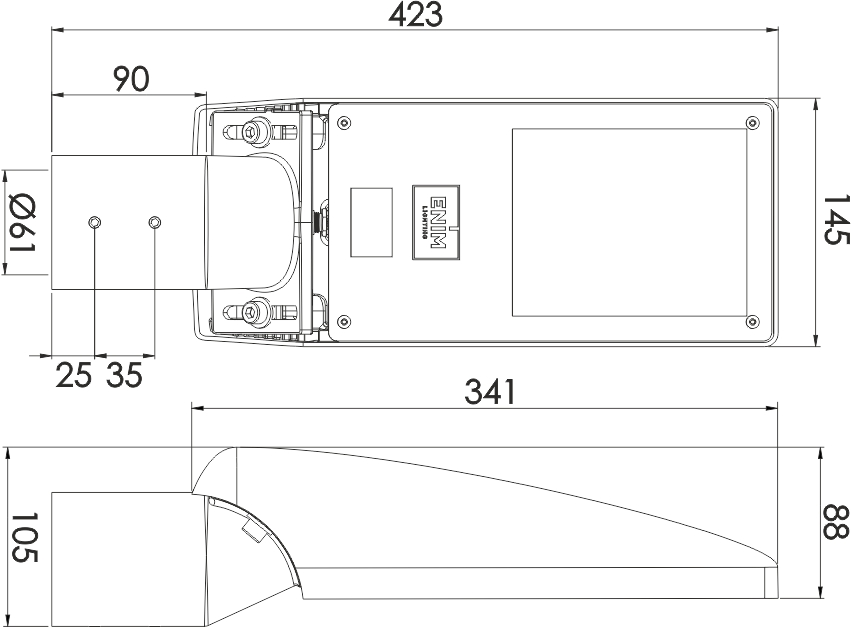

Size
341 mm x 145 mm x 88 mm
Weight Gross
3,4
Weight Net
3,2
Body material
Heat sink: cast aluminium, painted
Installation
Adjustable bracket: angle -5° +15°, Ø 42-60 mm, (60-76 mm optional)
Optics
Optical cover
Glass, thermally hardened
Light source
Power LED
Optics
Asymmetric optics lens
Maintenance
No internal cleaning required
Protection against light pollution
0 candela light emission above 90°
Driver
Input voltage
180 – 264VAC, 176 – 280 VDC
Surge protection
10 kV/6kV
Intelligent temperature Guard (ITG)
The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast. Depending on the luminaire design, the ITG operates at about 5 to 10 °C above tc temperature. If temperature threshold values are exceeded, the LED output current is limited
Overvoltage with a variable surge protection
N/L – 10kV, P/(N/L) - 10kV
Interfaces
One4all (DALI, DALI2, DT6, DSI, switchDIM, corridorFunction), NFC connection, Ready2mains (configuration and dimming via the mains), U6Me2 programming protocol, Chronostep – automatic luminaire dimming, Power-on level
Remarks
CLO
The light output of an LED module reduces over the course of its lifetime. The Constant Light Output (eCLO) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
max 10 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
MET0169-1
SPL-G bracket Ø76mm RAL7035
MET0169-2
SPL-G bracket Ø76mm RAL7015
MET0169-3
SPL-G bracket Ø76mm RAL9005

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
OPTIC AS6
OPTIC AS8
OPTIC AS9
OPTIC AS14
OPTIC AS16
OPTIC AS17
OPTIC AS18
OPTIC AS19
OPTIC AS27
OPTIC AS28
OPTIC AS29
OPTIC AS30
OPTIC AS31
OPTIC AS32
OPTIC AS34
OPTIC AS37
OPTIC AS38
OPTIC AS40
OPTIC AS53
OPTIC AS54
OPTIC AS55
OPTIC AS56
OPTIC AS57
OPTIC AS60
OPTIC AS61
OPTIC AS62
OPTIC AS65
OPTIC AS68
OPTIC AS69
OPTIC AS70
OPTIC AS71
OPTIC AS73
OPTIC AS74
OPTIC AS75
OPTIC AS78
OPTIC AS81
OPTIC AS87
OPTIC AS91
OPTIC AS93

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Standart pallet
Standart pallet
Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
120 X 80 X 190 10 10 100 320 343 1.824 0.4
