SIRIUS 1 – IP67

DSCF0376

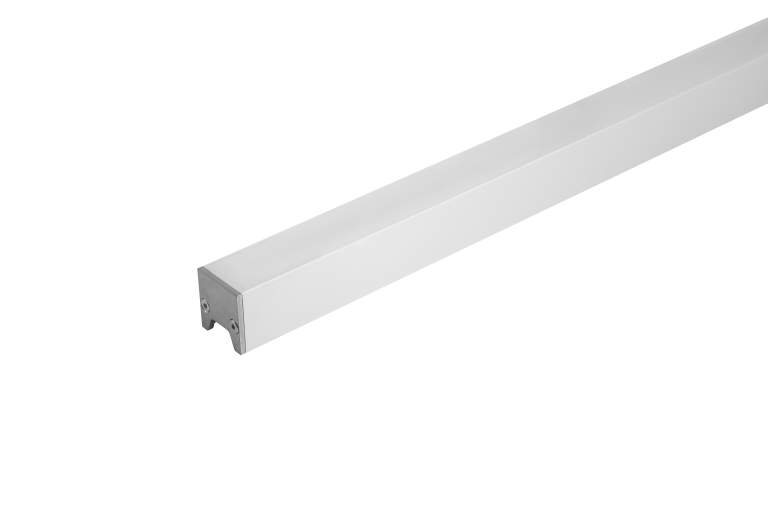

DSCF0385

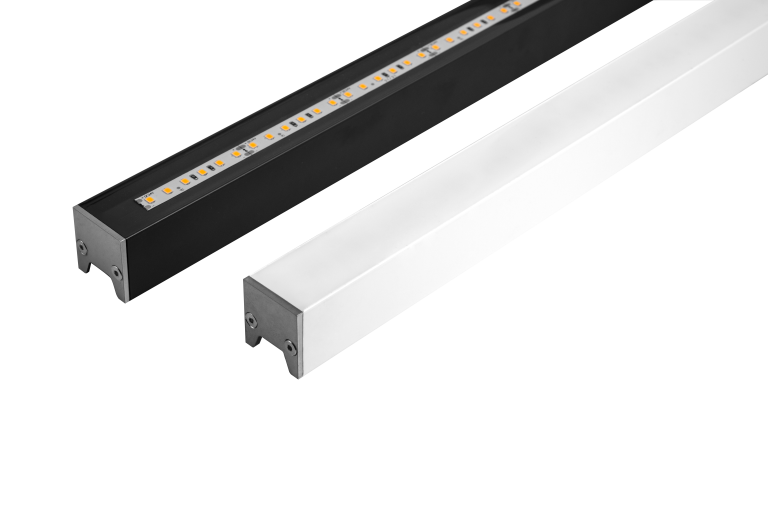

DSCF0391
Gallery navigation
Gallery navigation

SIRIUS-1 IP67 is a linear LED lighting system with an extremely high level of protection against moisture and mechanical impact.

More detailed information is being prepared. Please contact us to find out more

Choose the info

Overview arrow
Downloads arrow
SIRIUS 1 - IP67

Product Color

RAL 7015
RAL 9003

Description

SIRIUS 1-IP67 is a linear LED lighting system with an extremely high level of protection against moisture and mechanical impact. This LED product is suitable for illuminating complex architectural solutions. The SIRIUS 1- IP67 operates on 12-24V DC constant current and is designed for maximum efficiency, durability, and convenience.

Applications

The high ingress protection rating (IP67) and durable construction mean SIRIUS 1-IP67 can be used in demanding indoor and outdoor scenarios.

Technical information

Electrical
V
Input voltage
12-24V DC
Hz
Frequency
50-60 Hz
W
Luminaire wattage
4,8W/m - 28W/m
Optical
Lm
Luminous flux
576 lm/m - 3360 lm/m
Lm/W
Luminous efficacy
Up to 120
CCT K
Color temperature
2700/3000/4000/5000/6500
Ta
Performance temperature
-20°C ≤ Ta ≤ +50°C
CRI˚
Color rendering index
≥80
Housing
Size
38 mm x 27 mm x 1000 mm
Weight Gross
1.04 kg
Weight Net
0.89 kg
Body material
Heat sink: aluminum extrusion, coated; mounting bracket: steel, ensuring durability
Installation
Surface mounting
Optics
Light source
Mid power LEDs
Maintenance
Optical module sealed for life. No internal cleaning required
Protection against light pollution
0 candela light emission above 90°
Driver
Input voltage
12 - 24 V DC
Remarks
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L90 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
INDUS 110°
S-LINE 30°
S-LINE 60°
S-LINE 90°

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Luminaire dimensions/ cm Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
3,8 x 2,7 x 100 120x80x180 16 30 480 427 499 1.72 0.4
