Waterproof (IP66, IP68) LED luminaire for industry. Multiple lengths and light levels available.

Reference Case with "LEDIS"
Product configurator

Choose the info

Overview arrow
Downloads arrow
LEDIS

Product Color

RAL 7035

Description

Polycarbonate case with matt and clear diffusers. Through-wiring possible. General lighting for industries, shops, warehouses, parking places and similar premises. Suitable in the food – processing industry. Possible with secondary optics with narrow, medium and wide beam. Mounting brackets from spring steel or stainless steel. Brackets can be positioned over full length of luminaire.

Applications

LEDIS luminaires are used across various industrial and commercial environments, including warehouses, terminals, industrial refrigerators, shops, food and medical facilities, furniture manufacturing, car-care centers and parking areas.

Technical information

Electrical
V
Input voltage
220-240
Hz
Frequency
50-60 Hz
W
Luminaire wattage
20-80
Cosφ
Power factor
≥ 0,95
Optical
Lm
Luminous flux
2520-9760
Lm/W
Luminous efficacy
122-127
CCT K
Color temperature
4000K
Ta
Performance temperature
-25°C ≤ Ta ≤ +35°C
CRI˚
Color rendering index
≥80
Number of LED’s 80 160 160 200
Power 20 40 60 80
Luminous Flux, Lm 2520 5080 7380 9760
Efficacy, Lm/W 126 127 123 122

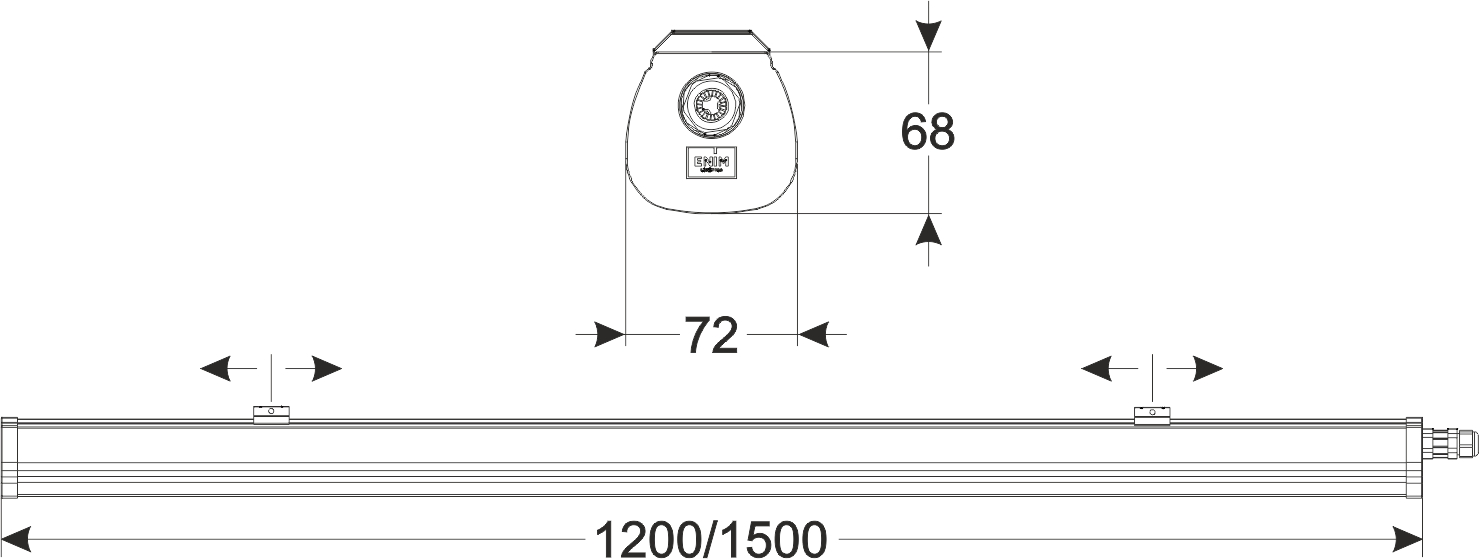

Luminaire dimensions/cm 60,0X7,2X6,8 120,0X7,2X6,8 120,0X7,2X6,8 150,0X7,2X6,8
Housing
Size
650 X 72 X 68 mm (20W); 1250 X 72 X 68 mm (40W, 60W); 1550 X 72 X 68 mm (80W);
Weight Gross
1.6-1.9
Weight Net
1.2-1.5
Body material
Housing - PC, cover - PC. Mounting bracket - spring steel
Installation
Ceiling mounting/Pendant (optional)
Optics
Light source
OSRAM/SAMSUNG/LUMILEDS
Maintenance
Optical module sealed for life. No internal cleaning required
Driver
Input voltage
220-240 V
Overvoltage with a variable surge protection
2kV/1kV (industry 4kV/4kV)
Interfaces
ON-OFF; DALI; Corridor FUNCTION; SwitchDIM; 1-10V
Remarks
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L90 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
2,5-10 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
MET520
Bracket_fix
Code
Name
MET521
Bracket_fix_45 deg
