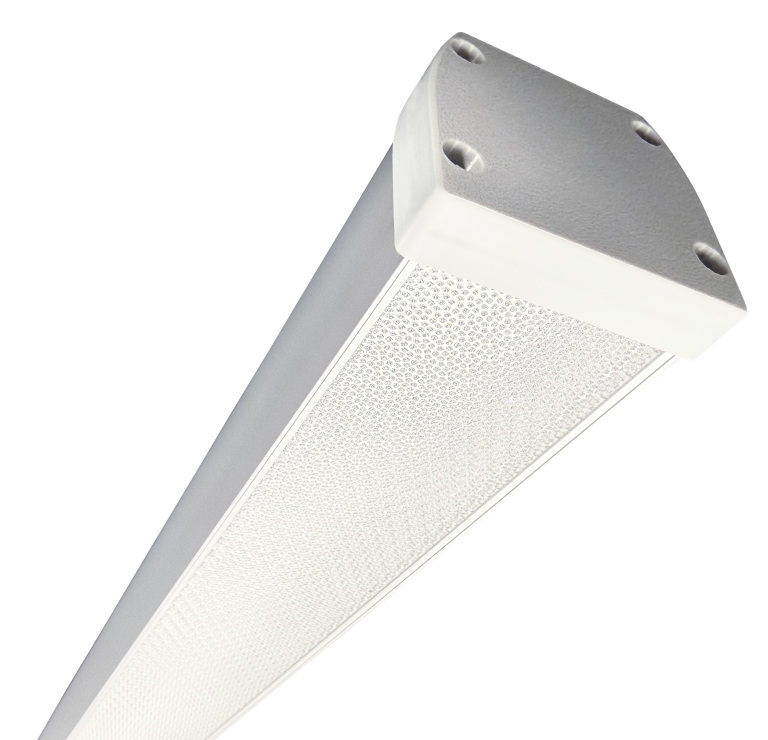

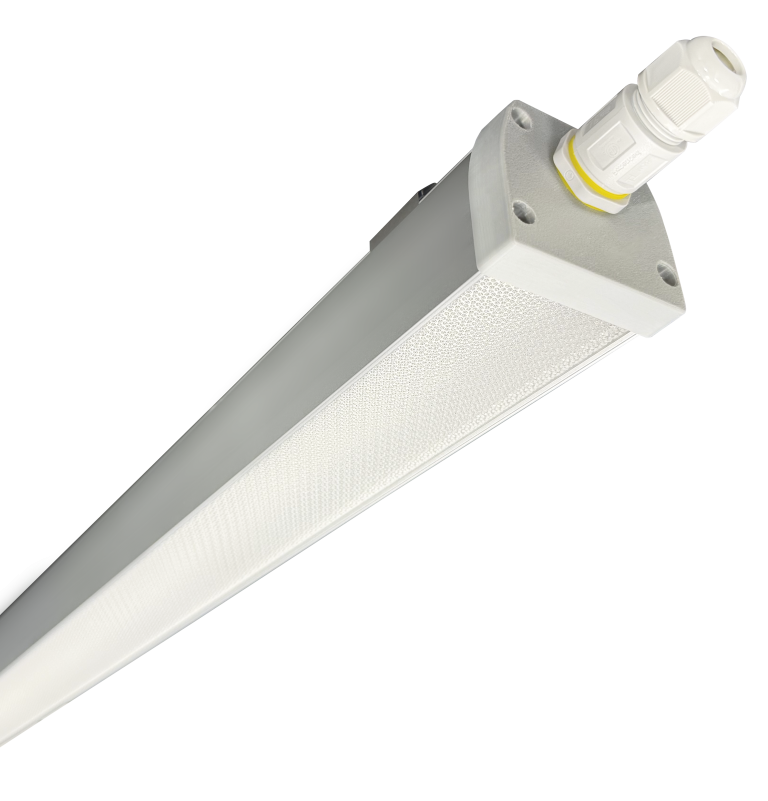

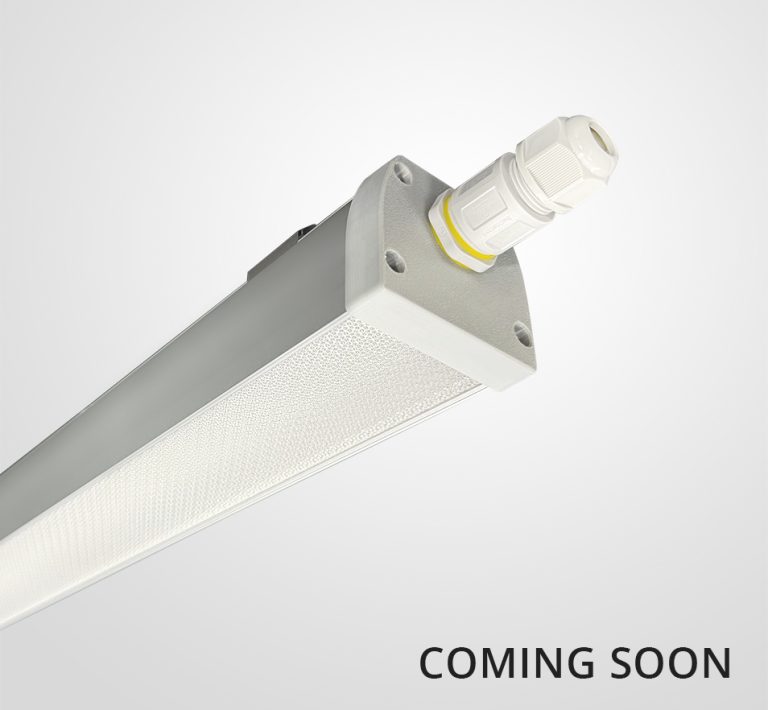

INDUS 2 EVO PC1

Industrial IP66 luminare for replacement of traditional light sources or for low bay applications

Reference Case with "INDUS 2 EVO PC1"

Product configurator

Choose the info

Product Color

ALU

Description

Industrial low-bay luminaire INDUS 2 EVO PC1 designed for energy-efficient and precise lighting. With DALI control, an IP66 protection rating and operation in temperatures ranging from -25°C to +50°C, it delivers durability and performance in demanding environments. Available in a range of 20 W to 133 W, INDUS 2 EVO PC1 easily adapts to different lighting requirements and offers flexible installation options, both pendant (with optional extended cable) and floor mounting.

Applications

INDUS 2 EVO PC1 luminaires are used across various industrial and commercial environments, including warehouses, terminals, industrial refrigerators, shops, food and medical facilities, furniture manufacturing, car-care centers and parking areas.

Technical information

Electrical

Input voltage

220-240

Frequency

50-60 Hz

Luminaire wattage

20-133

Cosφ

Power factor

≥ 0,95

Optical

Luminous flux

6240-14560

Lm/W

Luminous efficacy

Up to 160

CCT K

Color temperature

2700-6500

Performance temperature

-25°C ≤ Ta ≤ +50°C

CRI˚

Color rendering index

≥80

Number of LED’s	2X72		3X72		4X72		5X72		6X72		7X72
Power	20	39	29	57	37	74	45	90	57	114	67	133
Luminous Flux, Lm	3160	5889	4582	8607	5846	11174	7065	13500	8892	16986	10385	19684
Efficacy, Lm/W	158	151	158	151	158	151	157	150	156	149	155	148
Luminaire dimensions/cm	58,6x6,5x6,0	58,6x6,5x6,0	86,7x6,5x6,0	86,7x6,5x6,0	114,8x6,5x6,0	114,8x6,5x6,0	142,9x6,5x6,0	142,9x6,5x6,0	171,0x6,5x6,0	171,0x6,5x6,0	199,1x6,5x6,0	199,1x6,5x6,0

Housing

Size

586 X 65 X 60 mm (20W, 39W); 867 X 65 X 60 mm (29W, 57W); 1148 X 65 X 60 mm (37W, 74W); 1429 X 65X 60 mm (45W, 90W);1710 X 65X 60 mm (57W, 114W); 1991 X 65X 60 mm (57W, 114W);

Weight Gross

1.9- 4.7 kg

Weight Net

1.6-3.8 kg

Body material

Die-cast aluminium with built-in heat sink. Mounting bracket: steel

Installation

Ceiling mounting/Pendant (optional)

Optics

Optical cover

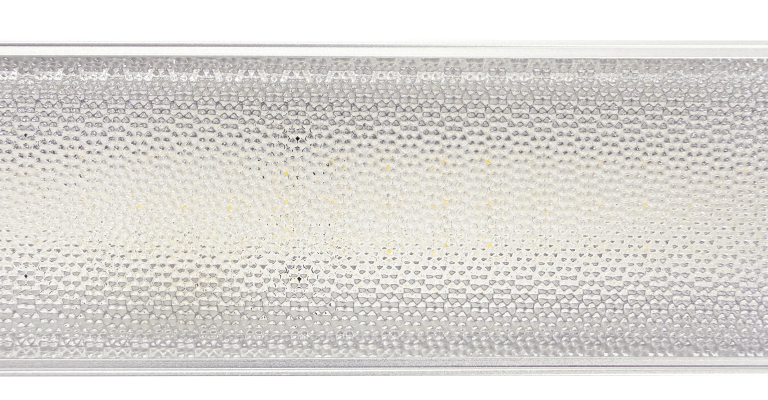

PC1 optical cover

Light source

OSRAM/SAMSUNG/LUMILEDS/BRIDGELUX

Maintenance

Optical module sealed for life. No internal cleaning required

Driver

Input voltage

220-240 V

Interfaces

ON-OFF (standard). DALI; Corridor FUNCTION; SwitchDIM; 1-10V (optional)

Remarks

Power factor (Cosφ)

≥ 0.95

Chromatic tolerance (original MacAdam)

Not higher than 3

Life expectancy L/B

L90 B10 by 100000 hrs (Ta = 25 °C)

Warranty

5 year

Recommended mounting height

2,5-8 m

Downloads

INDUS 2 EVO CE EN

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Downloads

INDUS 2 EVO CE EN

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Downloads

INDUS 2 EVO CE EN

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

INDUS 2 EVO PC1

Downloads

INDUS 2 EVO CE EN

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

	Luminaire dimensions/ cm	Pallet size/cm LWH	Luminaires per row, units	Number of rows on the pallet	QTY per pallet/pcs	Kg per pallet		Volume per pallet, m³	LDM, m
	Luminaire dimensions/ cm	Pallet size/cm LWH	Luminaires per row, units	Number of rows on the pallet	QTY per pallet/pcs	Net	Gross	Volume per pallet, m³	LDM, m
I	57,9x6,7x6,1	120x80x180	10	17	170	287	330	1,72	0,4
II	86,0x6,7x6,1	120x80x180	10	17	170	304	364	1,72	0,4
III	114,1x6,7x6,1	120x80x180	10	17	170	364	398	1,72	0,4
IIII	142,2x6,7x6,1	146x80x180	10	16	160	447	511	2,10	0,49

	Package size/cm LWH	Kg per package		Volume per package, m³
	Package size/cm LWH	Net	Gross	Volume per package, m³
I	63.0X9.0X8.0	1.6	1.9	0.0046
II	92.0X9.0X8.0	1.7	2.1	0.0067
III	120.0X9.0X8.0	2.1	2.5	0.0087
IIII	148.0X9.0X8.0	2.7	3.3	0.0107
IIIII	176.0X9.0X8.0	3.3	3.9	0.0127
IIIIII	204.0X9.0X8.0	3.8	4.7	0.0147
