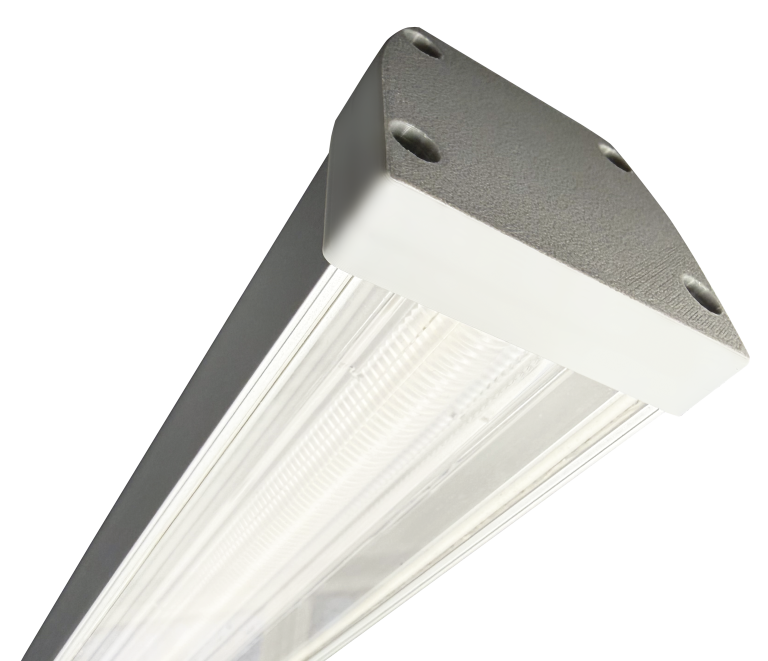

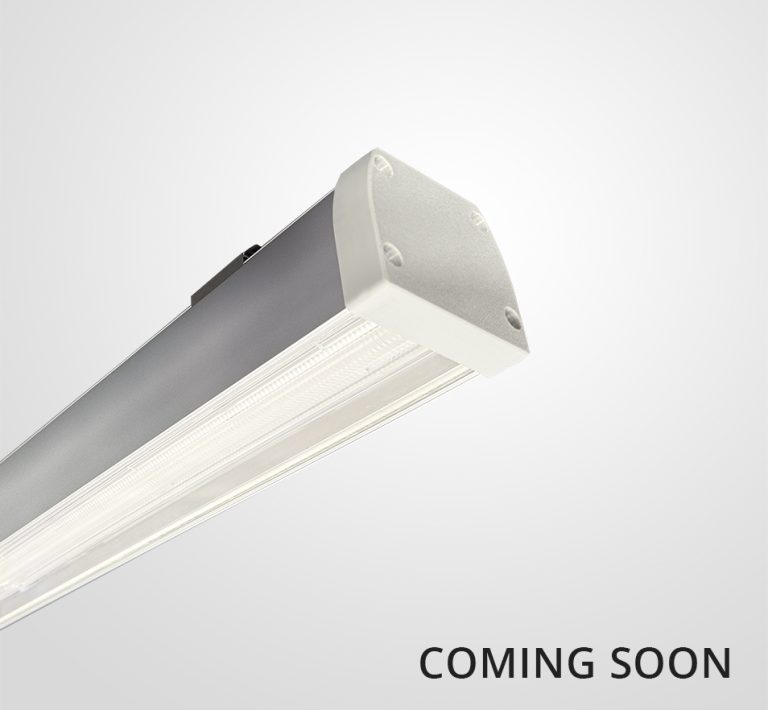

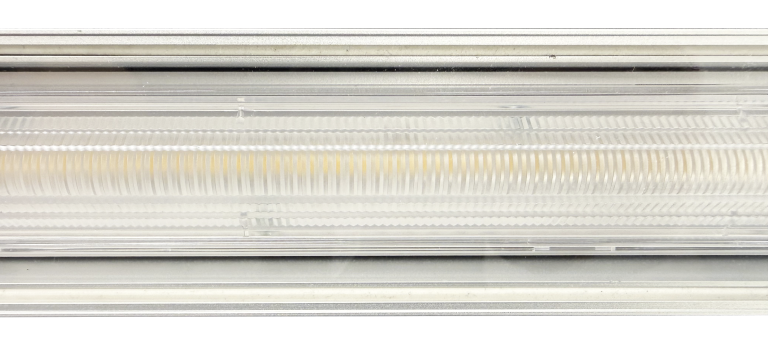

INDUS 2 EVO OPT66
Industrial IP66 luminare for replacement of traditional light sources or for low bay applications
Choose the info
Product Color
Description
Industrial low-bay luminaire INDUS 2 EVO OPT66 designed for energy-efficient and precise lighting. With DALI control, an IP66 protection rating and operation in temperatures ranging from -20°C to +50°C, it delivers durability and performance in demanding environments. Available in a range of 33 W to 83 W, INDUS 2 EVO OPT66 easily adapts to different lighting requirements and offers flexible installation options, both pendant (with optional extended cable) and floor mounting.
Applications
INDUS 2 EVO OPT66 luminaires are used across various industrial and commercial environments, including warehouses, terminals, industrial refrigerators, shops, food and medical facilities, furniture manufacturing, car-care centers and parking areas.
Technical information
| Number of LED’s | 2X45 | 3X45 | 4X45 | 5X45 | 6X45 | 7X45 | ||||||||||||||||||
| Power | 19 | 38 | 21 | 42 | 29 | 57 | 32 | 63 | 38 | 76 | 42 | 84 | 48 | 95 | 53 | 105 | 57 | 114 | 63 | 127 | 67 | 133 | 74 | 148 |
| Luminous Flux, Lm | 3021 | 5776 | 3402 | 6594 | 4611 | 8664 | 5184 | 9891 | 6042 | 11552 | 6804 | 13188 | 7584 | 14345 | 8533 | 16380 | 8949 | 17100 | 10080 | 19685 | 10452 | 19817 | 11544 | 22792 |
| Efficacy, Lm/W | 159 | 152 | 162 | 157 | 159 | 152 | 162 | 157 | 159 | 152 | 162 | 157 | 158 | 151 | 161 | 156 | 157 | 150 | 160 | 155 | 156 | 149 | 156 | 154 |
| Luminaire dimensions/cm | 60,4x6,5x6,0 | 60,4x6,5x6,0 | 60,4x6,5x6,0 | 60,4x6,5x6,0 | 89,4x6,5x6,0 | 89,4x6,5x6,0 | 89,4x6,5x6,0 | 89,4x6,5x6,0 | 118,4x6,5x6,0 | 118,4x6,5x6,0 | 118,4x6,5x6,0 | 118,4x6,5x6,0 | 144,2x6,5x6,0 | 144,2x6,5x6,0 | 144,2x6,5x6,0 | 144,2x6,5x6,0 | 176,4x6,5x6,0 | 176,4x6,5x6,0 | 176,4x6,5x6,0 | 176,4x6,5x6,0 | 205,4x6,5x6,0 | 205,4x6,5x6,0 | 205,4x6,5x6,0 | 205,4x6,5x6,0 |
| Luminaire dimensions/ cm | Pallet size/cm L*W*H | Luminaires per row, units | Number of rows on the pallet | QTY per pallet/pcs | Kg per pallet | Volume per pallet, m3 | LDM, m | ||
| Net | Gross | ||||||||
| I | 58,7x6,7x6,1 | 120x80x180 | 10 | 17 | 170 | 304 | 340 | 1,72 | 0,4 |
| II | 86,8x6,7x6,1 | 120x80x170 | 10 | 17 | 170 | 338 | 383 | 1,72 | 0,4 |
| III | 114,9x6,7x6,1 | 120x80x150 | 10 | 15 | 150 | 353 | 390 | 1,72 | 0,4 |
| IIII | 143,0x6,7x6,1 | 146x80x140 | 10 | 14 | 140 | 449 | 505 | 2,10 | 0,49 |
| Package size/cm L*W*H | Kg per package | Volume per package, m3 | ||
| Net | Gross | |||
| I | 64,8x9,0x8,0 | 1,7 | 1,95 | 0,0047 |
| II | 94,7x9,0x8,0 | 1,9 | 2,2 | 0,0069 |
| III | 123,6x9,0x8,0 | 2,25 | 2,5 | 0,0089 |
| IIII | 152,5x9,0x8,0 | 3,1 | 3,5 | 0,0110 |
| IIIII | 181,4x9,0x8,0 | 3,4 | 4 | 0,0131 |
| IIIIII | 210,3x9,0x8,0 | 3,9 | 4,8 | 0,0152 |
