FOCUS 3

Gallery navigation
Gallery navigation

Industrial IP44 luminary with lm output from 17508 to 25603 lm

Reference Case with "FOCUS 3"
Product configurator

Choose the info

Overview arrow
Downloads arrow

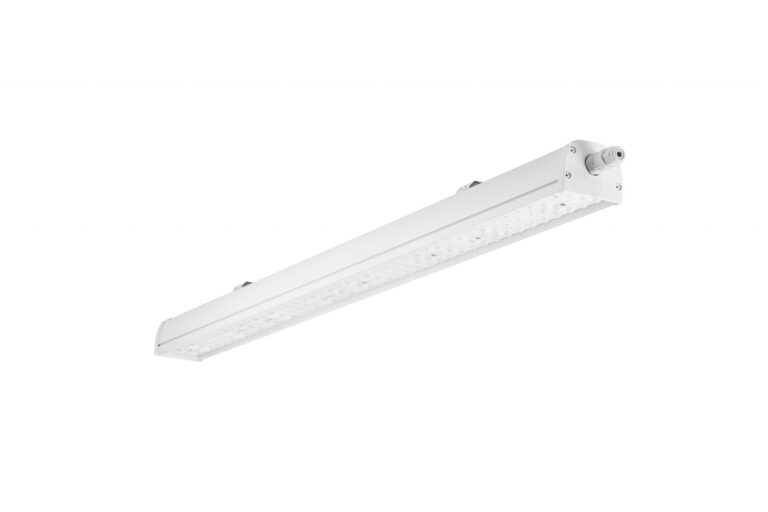

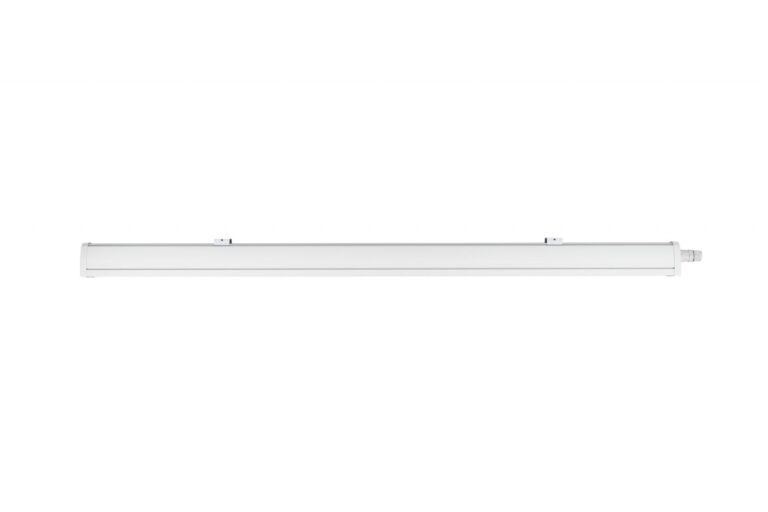

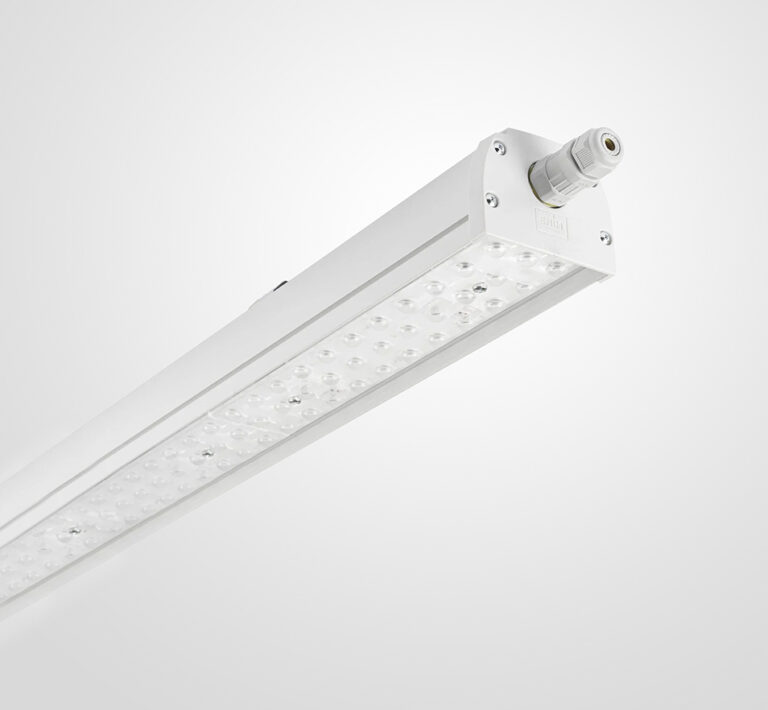

FOCUS 3

Product Color

RAL 7035

Description

Line of the luminaries FOCUS 3 is created for replacement of mid bay and high bay lighting fixtures. The simple design and highest quality components made FOCUS efficient, robust and reliable lighting fixture. Warehouses, factories, refrigerators, shops, parking lots, food and medical industry, car-care centres are most frequently applications. IP44 protection class, very high efficiency, long lifetime and five years warranty gives our customers opportunity to install the fixtures and forget them for long time.

Applications

FOCUS 3 is ideal for high-bay environments such as warehouses, factories, bus stations, airports, parking lots, car washes, gymnasiums, sports venues and cold storage facilities.

Technical information

Electrical
V
Input voltage
220-240
Hz
Frequency
50-60 Hz
W
Luminaire wattage
100-150
Cosφ
Power factor
≥ 0,95
Optical
Lm
Luminous flux
17189-26015
Lm/W
Luminous efficacy
169,8-175,1
CCT K
Color temperature
4000
Ta
Performance temperature
- 25°C ≤ Ta ≤ +50°C
CRI˚
Color rendering index
≥80
Number of LED’s 3X33 4X33
Power 100 150
Luminous Flux, Lm 17189-17354 25466-26015
Efficacy, Lm/W 171-175 169-173
Luminaire dimensions/cm 880X89X68 1160X89X68

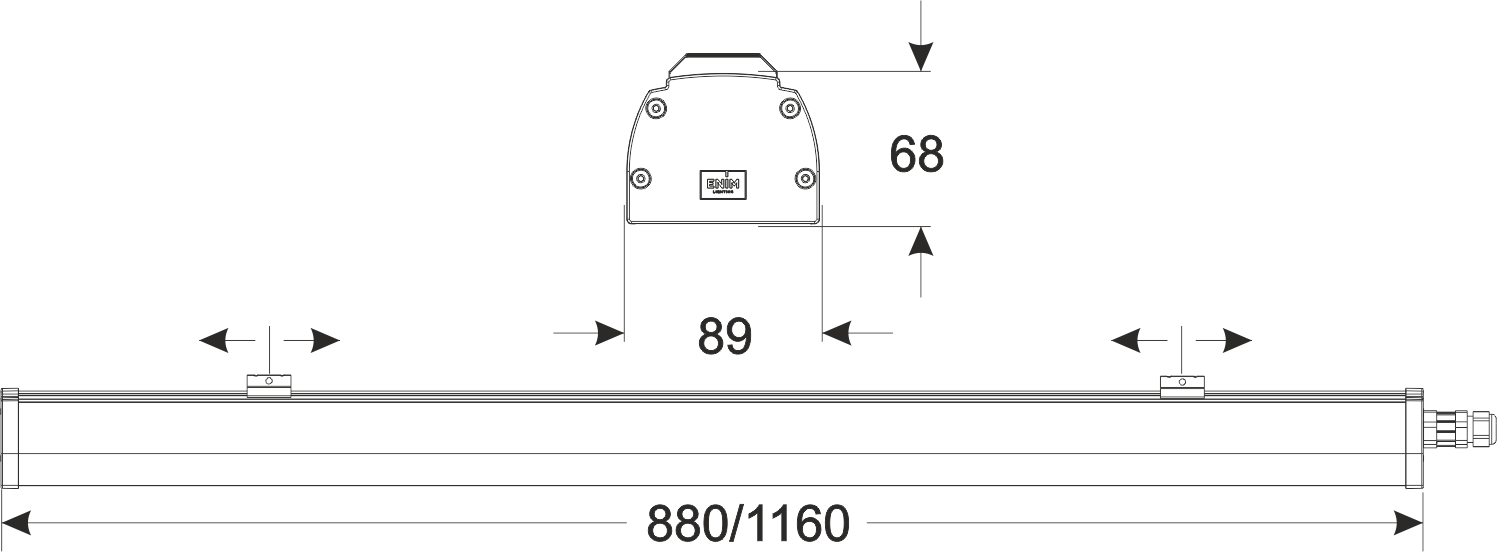

Housing
Size
880 X 89 X 68mm (100W), 1160 X 89 X 68mm (150W),
Weight Gross
2.5-2.8
Weight Net
2.3-2.6
Body material
Heat sink: aluminum extrusion, coated; mounting bracket: steel, ensuring durability
Installation
Ceiling mounting or Pendant (optional)
Optics
Light source
SAMSUNG/OSRAM/LUMILEDS
Maintenance
Optical module sealed for life. No internal cleaning required
Driver
Input voltage
220-240
Surge protection
Up to 2 kV, (4kV optional)
Interfaces
ON-OFF; DALI; Corridor FUNCTION; SwitchDIM; 1-10V
Remarks
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L90 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
Up to 15 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
MET0397
Z_bracket RAL7035
Code
Name
MET520
Bracket fix
Code
Name
MET521
Bracket fix 45deg

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
FOCUS 3 30°
FOCUS 3 60°
FOCUS 3 90°
