Description

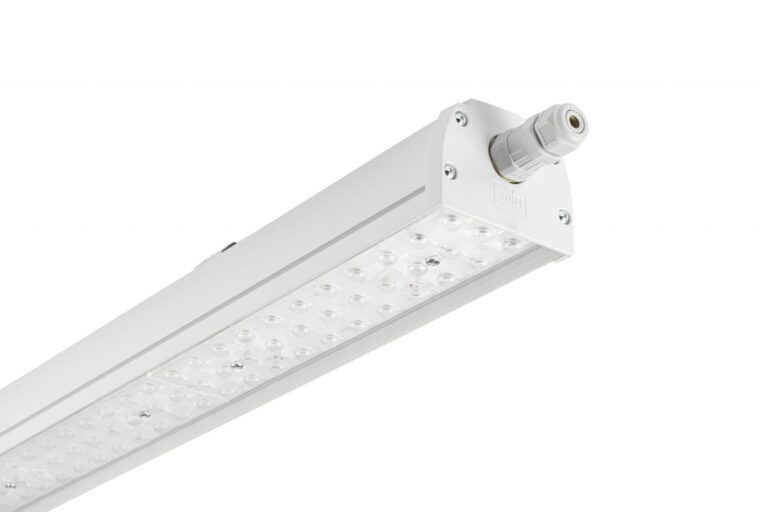

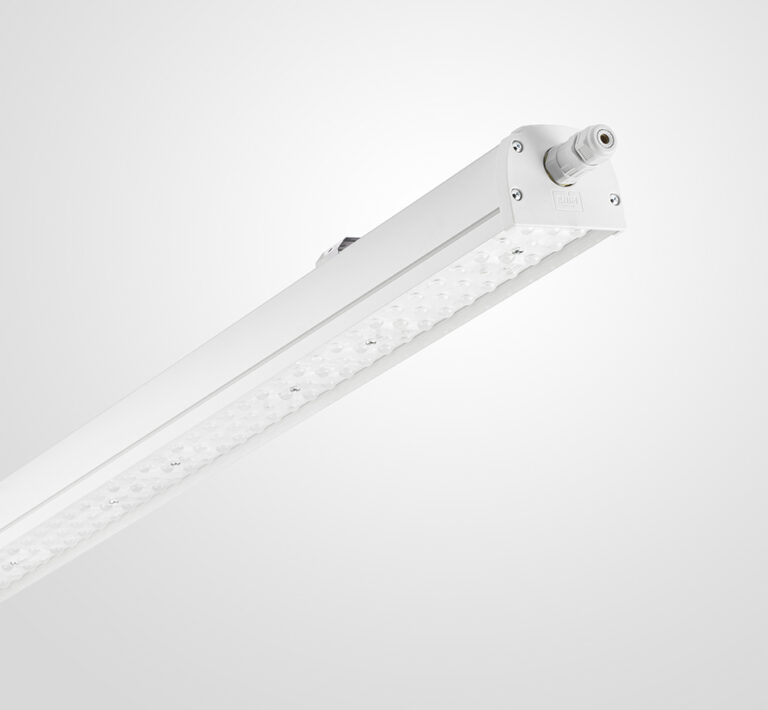

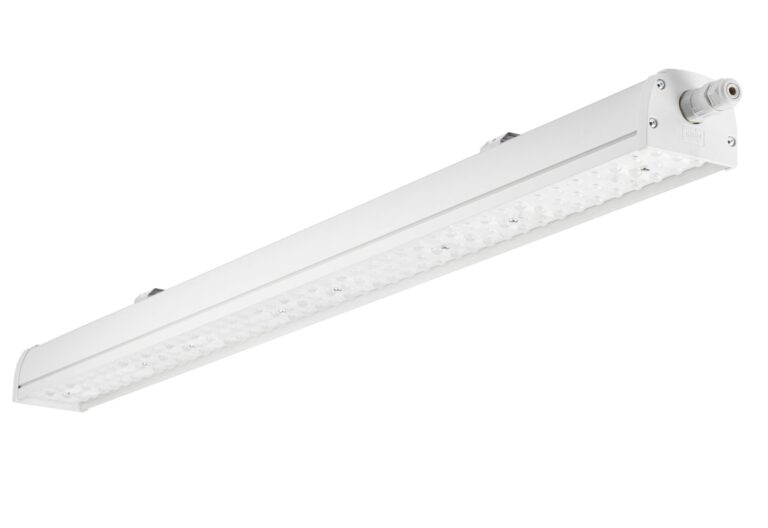

Line of the luminaries FOCUS 2 is created for replacement of mid bay and high bay lighting fixtures. The simple design and highest quality components made FOCUS efficient, robust and reliable lighting fixture. Warehouses, factories, , shops, food and medical industry, car-care centres are most frequently applications. IP44 protection class, high uniformity and low glare, very long lifetime and five years warranty gives our customers opportunity to install the fixtures and forget them for long time.
Do you want to know more?
Click to access our Contact Us page where you can send us an enquiry.
Product details
|
Type FOCUS 2 LED
|
IP Class IP44
|
Resistance to mechanical impact IK08
|
|
Light source LEDs
|
Protection Classes Class I
|
Light color 4000 K
|
|
Connection Supply cable 1,00 m / 3 pin connector
|
Color Rendering Index Ra > 80
|
Power consumption 80W, 100W, 115W, 130W
|
|
Color Light Grey
|
Controls PRESET SENSOR, DALI SENSOR, DALI.
|
Operating temperature -40°C ≤ Ta ≤ +50°C
|
|
Lifetime L90 > 100000 h (Ts-85 °C)
|
Driver 198 ~ 264 VAC / 170 – 280 VDC
|
Inrush current (peak / duration) 60 A / 200 μs
|
|
Remarks Luminaries are ready to install
|
Suitable for mains voltage peaks (burst/surge) up to 2 kV, (4kV optional)
|

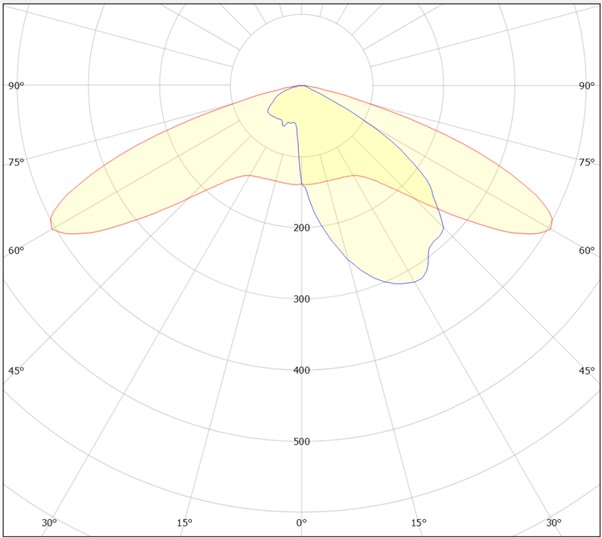

Optics 30 / 60 / 90 / Asymmetric (30 x 90)
|
|
Material Heat sink: aluminum extrusion, coated
Mounting bracket: steel |

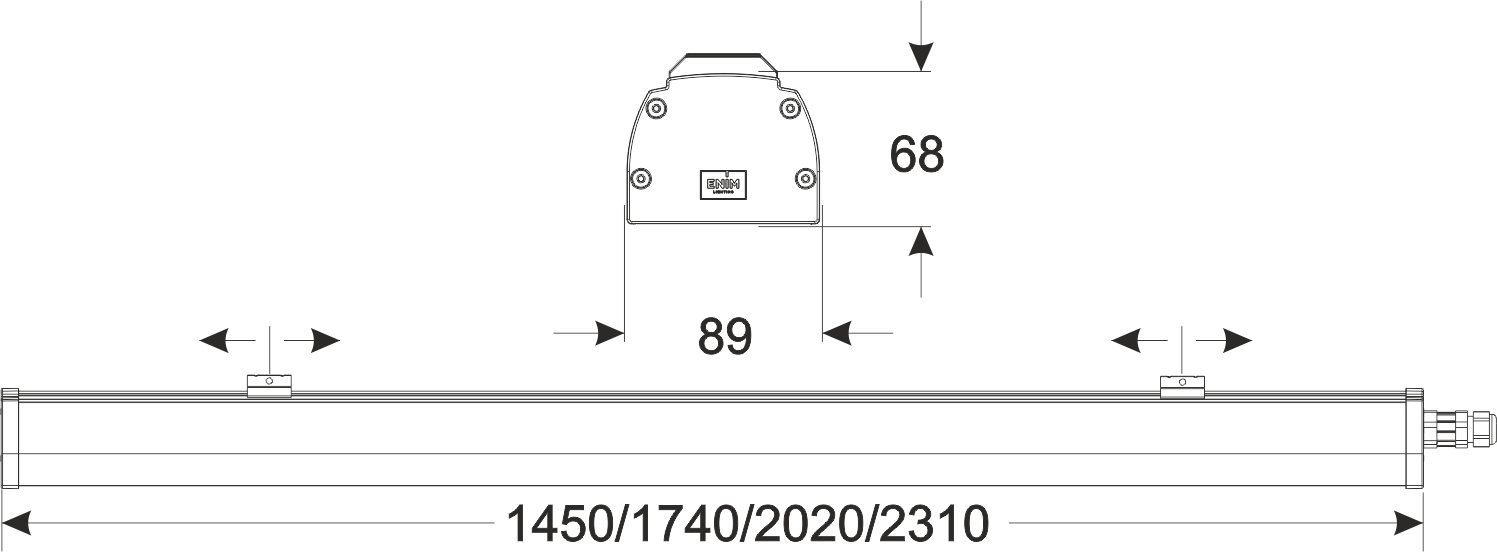

Size 1450 x 85 x 70 mm (80W)
1740 x 85 x 70 mm (100W) 2020 x 85 x 70 mm (115W) 2310 x 85 x 70 mm (130W) |
Maintenance Optical module sealed for life
No internal cleaning required Bracket for suspended mounting |
|
Type FOCUS 2 LED
|
|
IP Class IP44
|
|
Resistance to mechanical impact IK08
|
|
Light source LEDs
|
|
Protection Classes Class I
|
|
Light color 4000 K
|
|
Connection Supply cable 1,00 m / 3 pin connector
|
|
Color Rendering Index Ra > 80
|
|
Power consumption 80W, 100W, 115W, 130W
|
|
Color Light Grey
|
|
Controls PRESET SENSOR, DALI SENSOR, DALI.
|
|
Operating temperature -40°C ≤ Ta ≤ +50°C
|
|
Lifetime L90 > 100000 h (Ts-85 °C)
|
|
Driver 198 ~ 264 VAC / 170 – 280 VDC
|
|
Inrush current (peak / duration) 60 A / 200 μs
|
|
Remarks Luminaries are ready to install
|
|
Suitable for mains voltage peaks (burst/surge) up to 2 kV, (4kV optional)
|
|
Optics 30 / 60 / 90 / Asymmetric (30 x 90)
|
|
Material Heat sink: aluminum extrusion, coated
Mounting bracket: steel |
|
Size 1450 x 85 x 70 mm (80W)
1740 x 85 x 70 mm (100W) 2020 x 85 x 70 mm (115W) 2310 x 85 x 70 mm (130W) |
|
Maintenance Optical module sealed for life
No internal cleaning required Bracket for suspended mounting |
