EFL-M

Gallery navigation
Gallery navigation

Premium quality Floodlight. Up to 27 800 Lm / 60-200 W.

Reference Case with "EFL-M"
Product configurator

Choose the info

Overview arrow
Downloads arrow
EFL-M

Product Color

RAL 7035
RAL 7015

Description

The EFL-M floodlights offer premium quality, exceptional 165 lm/W efficiency and a 60-200 W power range. Designed for durability, they feature C5 corrosion resistance and a robust aluminum housing, ensuring reliable performance in harsh conditions. With a 100,000-hour lifespan and EPD certification, EFL-M floodlights provide a sustainable, low-maintenance lighting solution for large-scale outdoor and industrial applications.

Applications

The EFL-M floodlights excel in providing powerful and reliable illumination in airports, seaports, parking lots, playgrounds, stadiums, tunnels and underground passages, large warehouses and industrial areas.

Technical information

Electrical
V
Input voltage
198V– 264VAC, 176V – 280 VDC 90V-305VAC, 127V - 300 VDC
Hz
Frequency
50-60 Hz
W
Luminaire wattage
60-200
Cosφ
Power factor
≥ 0.95
Optical
Lm
Luminous flux
8607-27800
Lm/W
Luminous efficacy
Up to 165
CCT K
Color temperature
3000/4000/5000
Ta
Performance temperature
- 40 °C ≤ Ta ≤ + 50 °C
CRI˚
Color rendering index
≥70
Number of LED’s 3X12 4X12 5X12
Power 60W 70W 80W 90W 100W 110W 120W 130W 140W 150W 160W 170W 180W 190W 200W
Luminous Flux, Lm 8580-9900 9870-11340 11040-12720 12150-14040 13600-15900 14740-17270 15720-18480 16770-19630 18900-21840 19800-23250 20640-24320 21760-25500 22500-26460 23370-27360 23800-27800
Efficacy, Lm/W 143-165 141-162 138-159 135-156 136-159 134-157 131-154 129-151 135-156 132-155 129-152 128-150 125-147 123-144 119-139
Housing

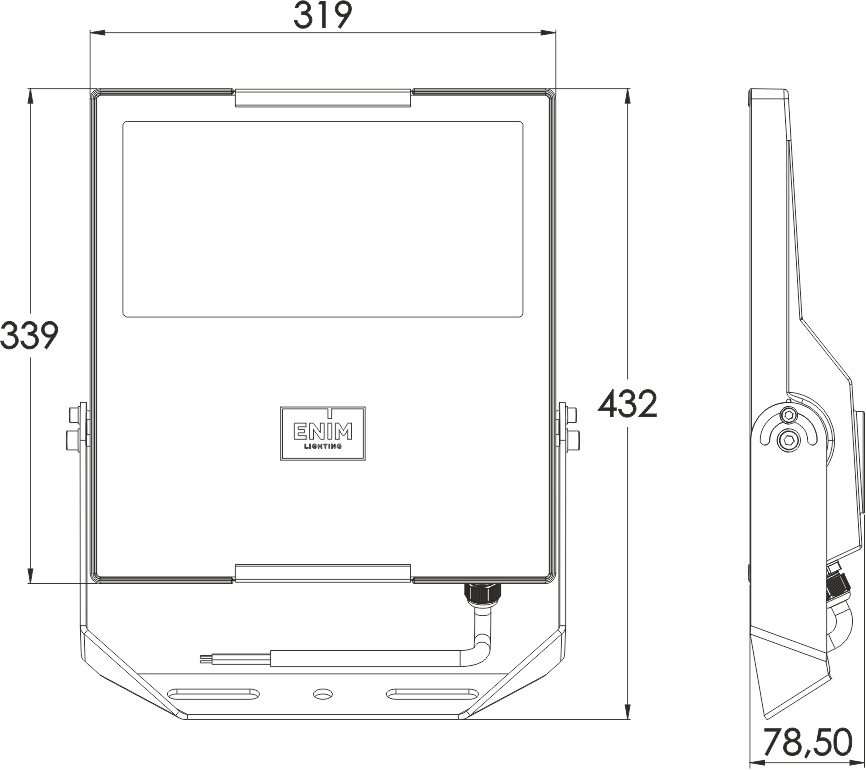

Size
319 mm x 339 mm x 78.5 mm
Weight Gross
7,1
Weight Net
6,8
Body material
Heat sink: Cast aluminum, painted
Protection against fogging
IK09
Installation
Adjustable bracket: angle -90° + 90°
Optics
Optical cover
Tempered Glass
Light source
Power LED
Optics type
30, 60, 90 degrees, Asymmetric
Maintenance
Optical module sealed for life No internal cleaning required
Driver
Input voltage
198V– 264VAC, 176V – 280 VDC 90V-305VAC, 127V - 300 VDC
Surge protection
10kV/6kV
Intelligent temperature Guard (ITG)
The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast
Overvoltage with a variable surge protection
N/L – 6kV, P/(N/L) – 10kV
Interfaces
One4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION V2) ready2mains (configuration and dimming via mains) U6Me2 (configuration of chronoSTEP 2 via mains)
Remarks
CLO
The light output of an LED module reduces over the course of its lifetime. The Constant Light Output ( CLO ) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L95 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
Up to 10 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
FLOODLIGHTS AS23
FLOODLIGHTS AS24
FLOODLIGHTS AS25
FLOODLIGHTS 30˚
FLOODLIGHTS 60˚
FLOODLIGHTS 90˚
FLOODLIGHTS AS83
FLOODLIGHTS AS84
FLOODLIGHTS AS85

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
1. Standart pallet
1. Standart pallet
2. Exceeds the dimensions of a standart pallet
2. Exceeds the dimensions of a standart pallet
Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
I 120 X 80 X 165 4 12 58 394.4 413.2 1.584 0.4
II 120 X 85 X 180 5 15 75 510 530.5 1.836 0.43
