BAT

Gallery navigation
Gallery navigation

Industrial IP66 luminary with lm output from 18000 to 42600 Lm

Reference Case with "BAT"
Product configurator

Choose the info

Overview arrow
Downloads arrow
BAT

Product Color

RAL 7035

Description

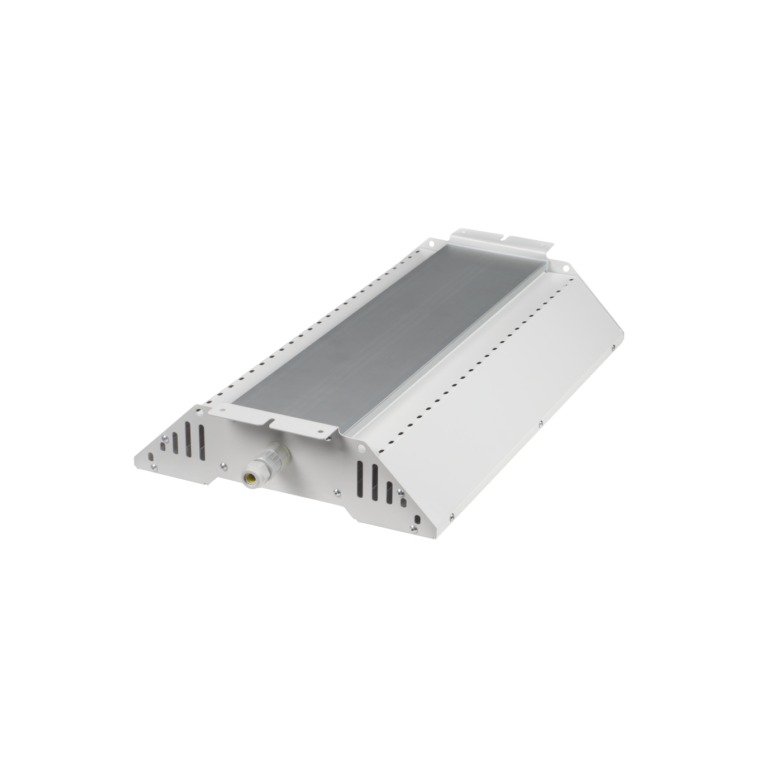

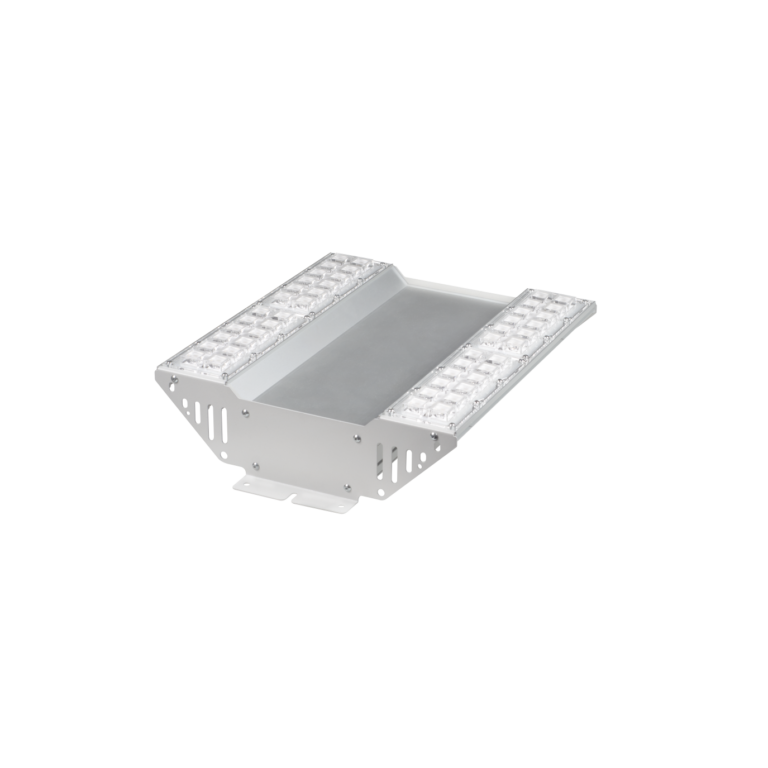

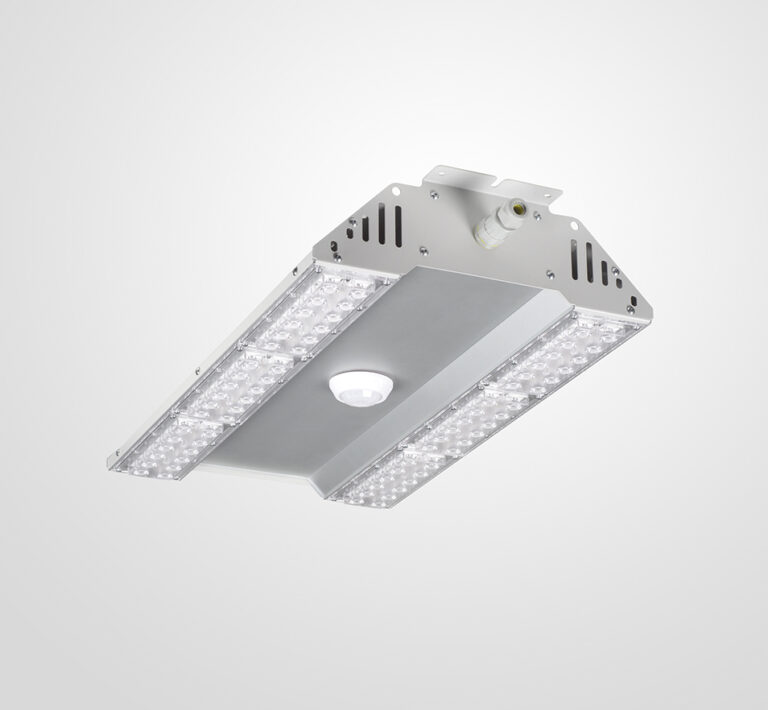

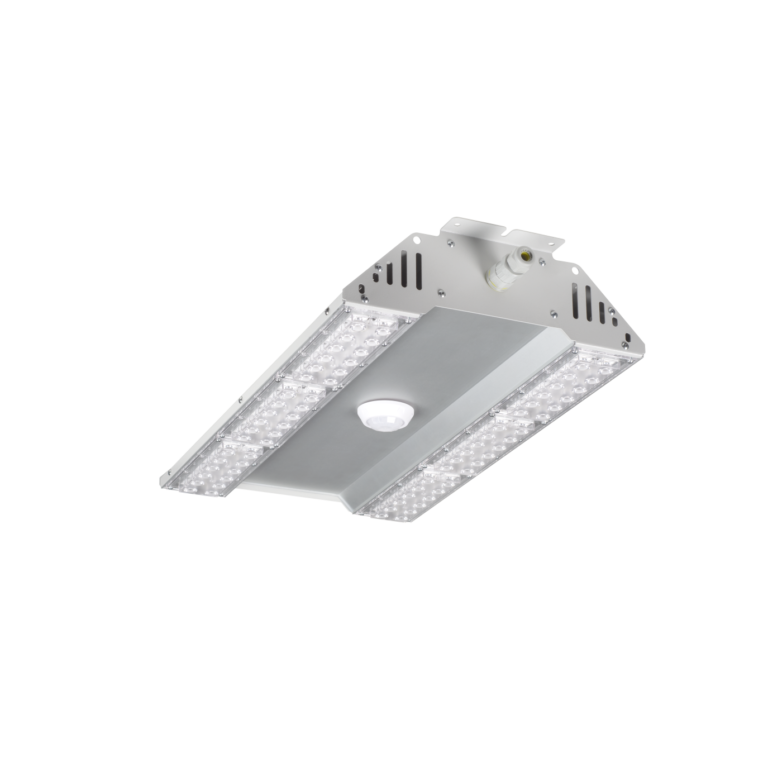

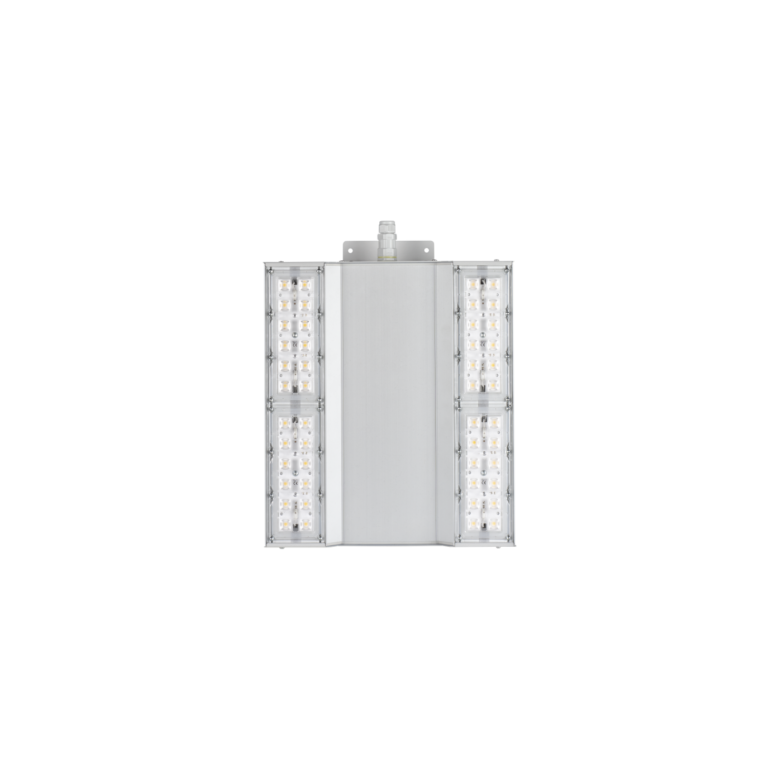

The powerful industrial luminaire BAT delivers exceptional illumination for large – scale areas with high ceilings up to 15 m. Featuring DALI control for energy efficiency and precise lighting, it boasts an IP66 rating and operates between -20°C and +40°C. Available in 120 W to 300 W options, it adapts to various needs. BAT supports both pendant (with optional extended cable) and floor mounting for flexible installation.

Applications

This lighting solution is ideal for high-bay environments such as warehouses, factories, bus stations, airports, parking lots, car washes, gymnasiums, sports venues and cold storage facilities.

Technical information

Electrical
V
Input voltage
90-305 VAC
Hz
Rated voltage
50-60 Hz
W
Luminaire wattage
120 to 300
Cosφ
Power factor
≥ 0,95
Optical
Lm
Luminous flux
18000 - 42600
Lm/W
Luminous efficacy
Up to 158
CCT K
Color temperature
3000 - 6500
Ta
Performance temperature
-20°C ≤ Ta ≤ +40°C
CRI˚
Color rendering index
≥80
Number of LED’s 4X12 6X12 8X12
Power 120 160 200 240 300
Luminous Flux, Lm 18000-18960 24000-25280 28800-30800 33840-34800 41400-42600
Efficacy, Lm/W 150- 158 150-158 144-154 141-145 138-142
Luminaire dimensions/cm 362x317x101 535x317x101 535x317x101 535x317x101 708x317x101
Housing

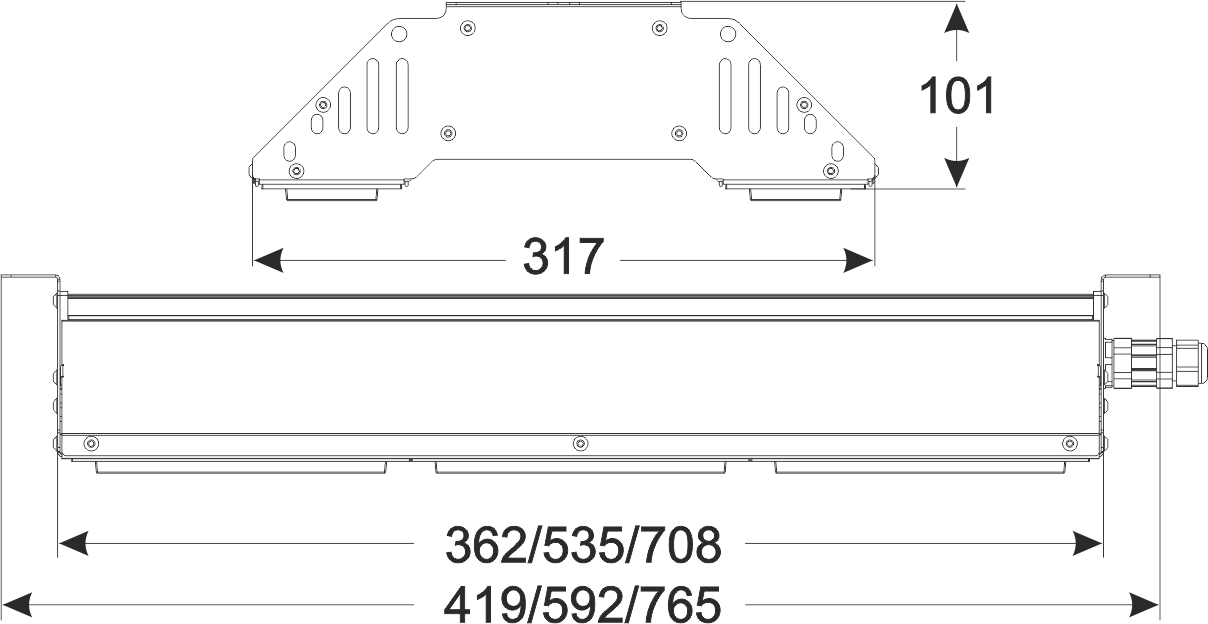

Size
362 x 317 x 101 mm; 535 x 317 x 101 mm; 708 x 317 x 101 mm
Weight Gross
max 8.2 kg
Weight Net
max 7.2 kg
Body material
Heat sink: cast aluminium, painted
Protection against fogging
IP66
Installation
Ceiling mounting/Pendant (optional)
Optics
Light source
LEDs 5050

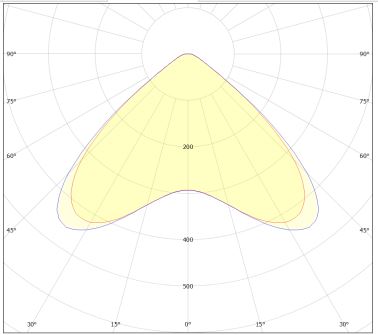

Optics
Asymmetric optics lens
Optics type
Very carefully selected optics suppliers, the optics are transparent to ensure minimal light loss
Maintenance
Optical module sealed for life. No internal cleaning required
Protection against light pollution
0 candela light emission above 90°
Driver
Input voltage
90-305 VAC
Surge protection
2kV/1kV (industry 4kV/4kV)
Intelligent temperature Guard (ITG)
The intelligent temperature guard protects the LED driver from thermal overheating by reducing the output power or switching off in case of operation above the thermal limits of the luminaire or ballast.
Overvoltage with a variable surge protection
Up to 6 kV
Interfaces
DALI, switchDIM, corridor FUNCTION
Remarks
CLO
The light output of an LED module reduces over the course of its lifetime. The Constant Light Output (eCLO) function compensates for this natural decline by constantly increasing the output current of the LED driver throughout its lifetime
Power factor (Cosφ)
≥ 0.95
Chromatic tolerance (original MacAdam)
Not higher than 5
Life expectancy L/B
L90 B10 by 100000 hrs (Ta = 25 °C)
Warranty
5 year
Recommended mounting height
Up to 15 m

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Code
Name
IL11009
BAT suspension cable set

Do you want to know more?

Send us an enquiry.

info@enimlighting.com

Do you want to know more?

Send us an enquiry.

info@enimlighting.com
Luminaire dimensions/ cm Pallet size/cm L*W*H Luminaires per row, units Number of rows on the pallet QTY per pallet/pcs Kg per pallet Volume per pallet, m3 LDM, m
Net Gross
I 362x317x101 120x80x145 3 10 30 117 150.6 1.39 0.4
II 535x317x101 120x80x145 3 10 30 165 198.6 1.39 0.4
III 708x317x101 120x80x145 3 10 30 216 248 1.39 0.4
