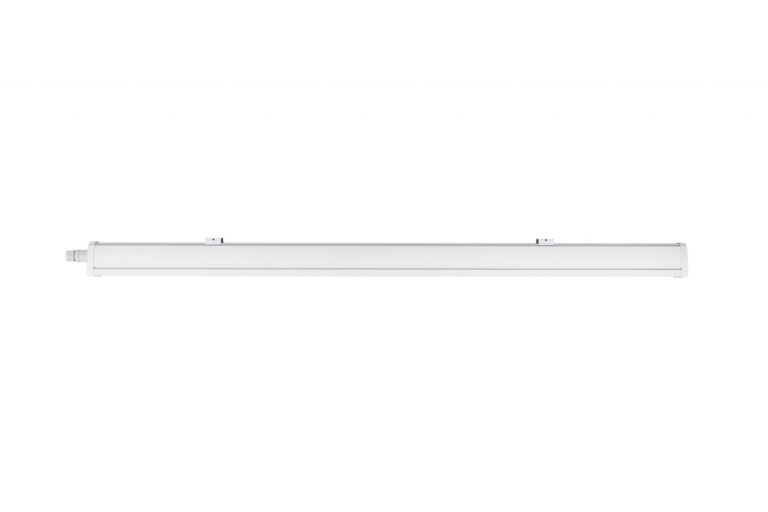

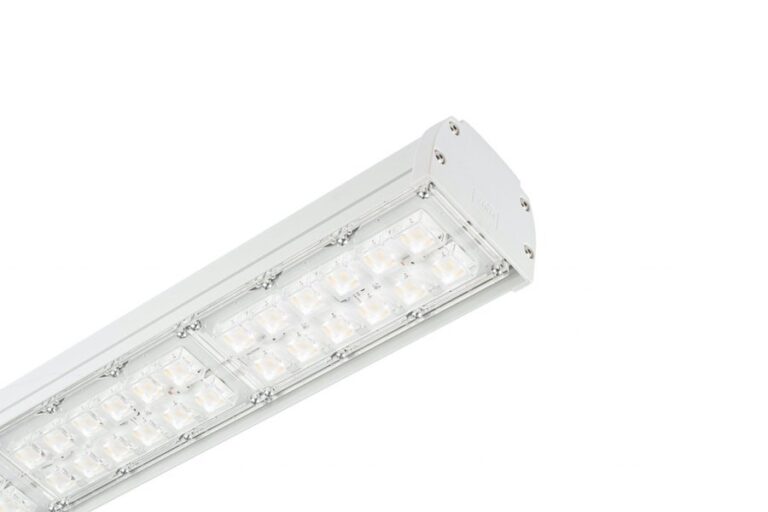

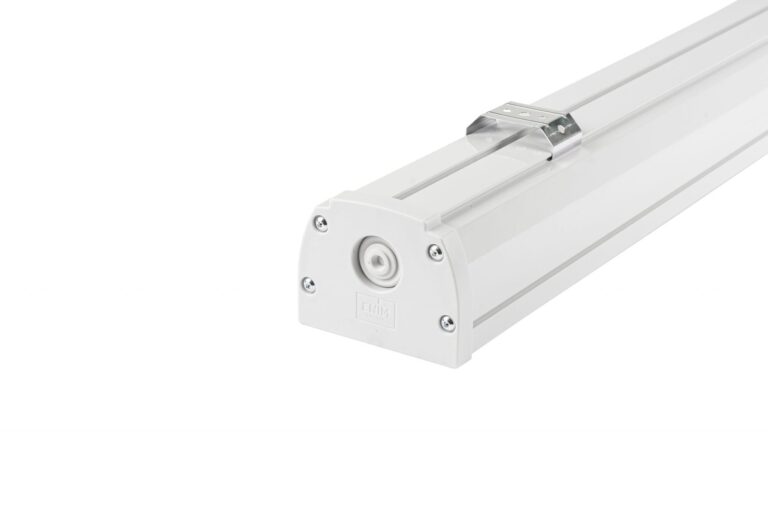

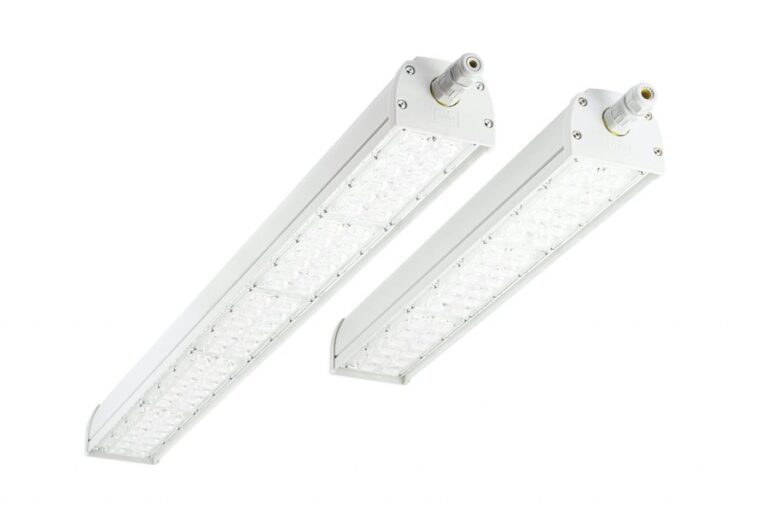

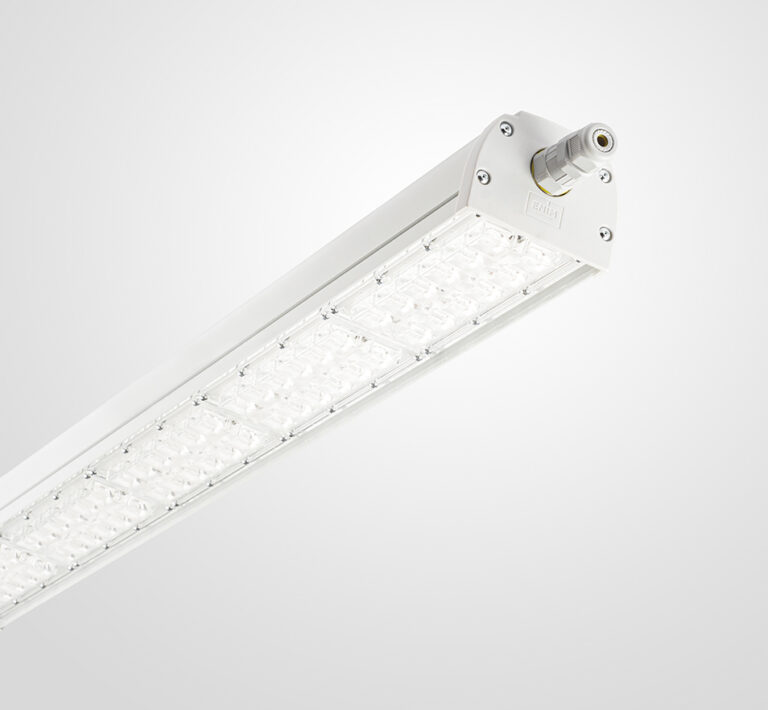

FOCUS 1

Line of the luminaries FOCUS1 is created for replacement of mid bay and high bay lighting fixtures. The simple design and highest quality components made FOCUS efficient, robust and reliable lighting fixture.  Warehouses, factories, refrigerators, shops, parking lots, food and medical industry, car-care centres are most frequently applications. IP66 protection class, very long lifetime and five years warranty gives our customers opportunity to install the fixtures and forget them for long time.

Article No Title W Lm Lm / W Louvre CCT(k) Kg (Netto) Kg (Brutto) IES File PDF File
S121001 FOCUS1 80 - 710 4x12 5050 12715lm IP66 840 60 ND 80 12715 159 60 4000 1.95 2.55 --- ---
S121009 FOCUS1 80 - 710 4x12 5050 12232lm IP66 840 90 ND 80 12232 153 90 4000 1.95 2.55 --- ---
S121017 FOCUS1 80 - 710 4x12 5050 12260lm IP66 840 30 ND 80 12260 153 30 4000 1.95 2.55 --- ---
S121259 FOCUS1 80 - 710 4x12 5050 12238lm IP66 840 30x90 ND 80 12238 153 30x90 4000 1.95 2.55 --- ---
S121025 FOCUS1 100 - 890 5x12 5050 16215lm IP66 840 60 ND 100 16215 162 60 4000 2.10 2.70 --- ---
S121033 FOCUS1 100 - 890 5x12 5050 15442lm IP66 840 90 ND 100 15442 154 90 4000 2.10 2.70 --- ---
S121041 FOCUS1 100 - 890 5x12 5050 15570lm IP66 840 30 ND 100 15570 156 30 4000 2.10 2.70 --- ---
S121260 FOCUS1 100 - 890 5x12 5050 15442lm IP66 840 30x90 ND 100 15193 152 30x90 4000 2.10 2.70 --- ---
S121049 FOCUS1 120 - 1060 6x12 5050 19320lm IP66 840 60 ND 120 19320 161 60 4000 2.45 3.2 --- ---
S121057 FOCUS1 120 - 1060 6x12 5050 18356lm IP66 840 90 ND 120 18356 153 90 4000 2.45 3.2 --- ---
S121065 FOCUS1 120 - 1060 6x12 5050 18632lm IP66 840 30 ND 120 18632 155 30 4000 2.45 3.2 --- ---
S121261 FOCUS1 120 - 1060 6x12 5050 18421lm IP66 840 30x90 ND 120 18421 154 30x90 4000 2.45 3.2 --- ---
S121073 FOCUS1 150 - 1230 7x12 5050 24149lm IP66 840 60 ND 150 24149 161 60 4000 2.85 3.75 --- ---
S121081 FOCUS1 150 - 1230 7x12 5050 22948lm IP66 840 90 ND 150 22948 153 90 4000 2.85 3.75 --- ---
S121089 FOCUS1 150 - 1230 7x12 5050 23251lm IP66 840 30 ND 150 23251 155 30 4000 2.85 3.75 --- ---
S121262 FOCUS1 150 - 1230 7x12 5050 23246lm IP66 840 30x90 ND 150 23246 155 30x90 4000 2.85 3.75 --- ---

Generate PDF

Type
FOCUS 1 LED

Light source
LEDs

Light color
4000 K

Color Rendering Index
Ra > 80

Power consumption
80W, 100W, 120W, 150W

Controls
PRESET SENSOR, DALI SENSOR, DALI.

Emergency module 3h (optional)

Integrated motion and daylight sensor (optional)

Driver
198 ~ 264 VAC / 170 – 280 VDC

Inrush current (peak / duration)
60 A / 200 μs

Suitable for mains voltage peaks (burst/surge)
up to 2 kV, (4kV optional)

Optics

30 / 60 / 90 / Asymmetric (30 x 90)

Resistance to mechanical impact
IK08

Protection Classes
Class I

Connection
Supply cable 1,00 m / 3 pin connector

Material
Heat sink: aluminum extrusion, coated
Mounting bracket: steel

Color
Light Grey

Operating temperature
-40°C ≤ Ta ≤ +50°C

Lifetime
L90 > 100000 h (Ts-85 °C)

Maintenance
Optical module sealed for life
No internal cleaning required

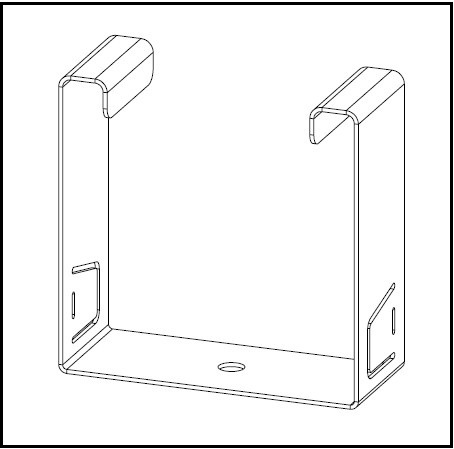

Bracket for suspended mounting

Remarks
Luminaries are ready to install

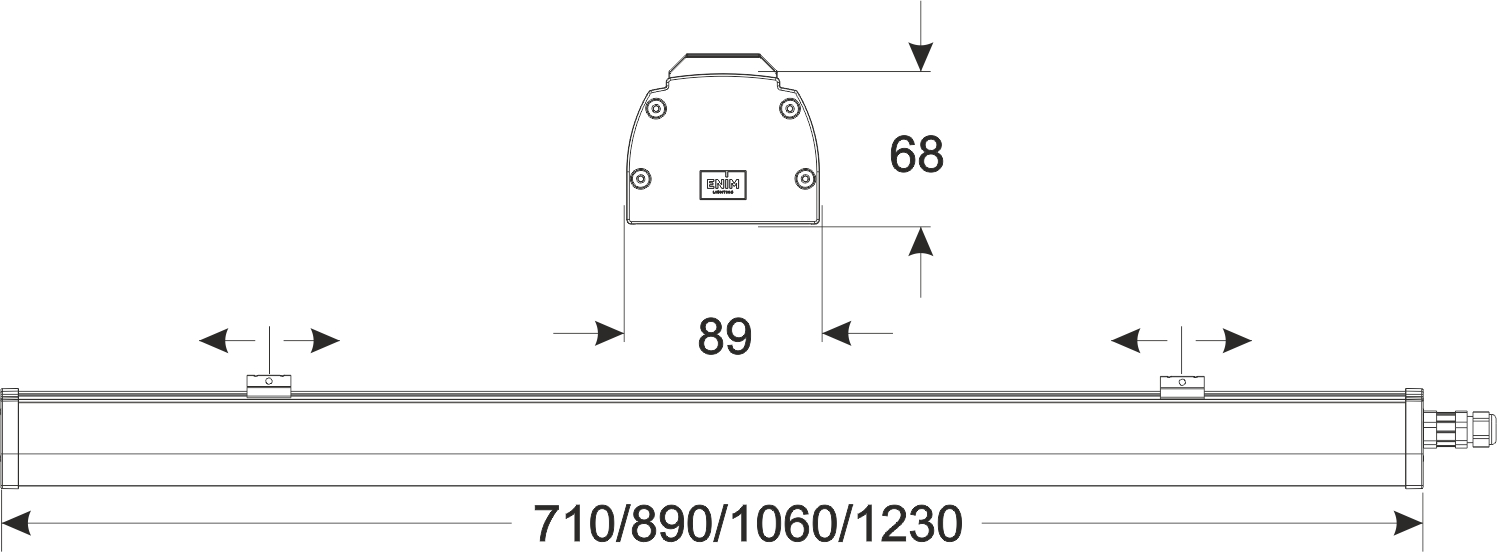

Size
 710 x 85 x 70 mm (80W)
 890 x 85 x 70 mm (100W)
1060 x 85 x 70 mm (120W)

1230 x 85 x 70 mm (150W)
