STEELO PRO

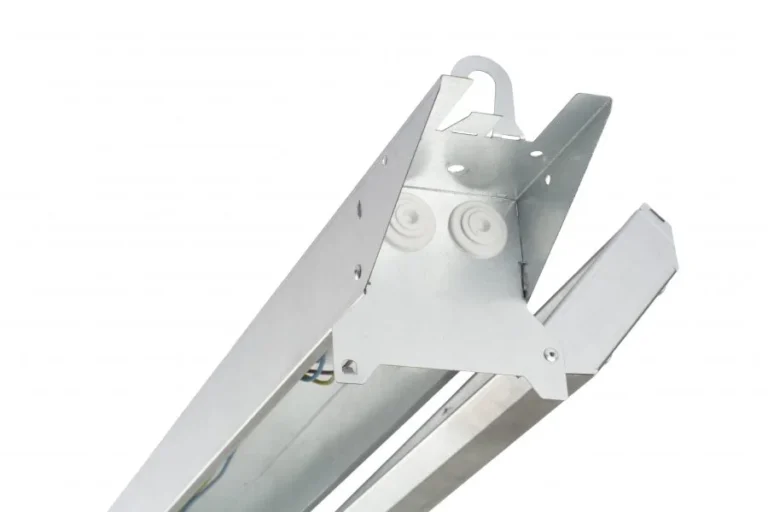

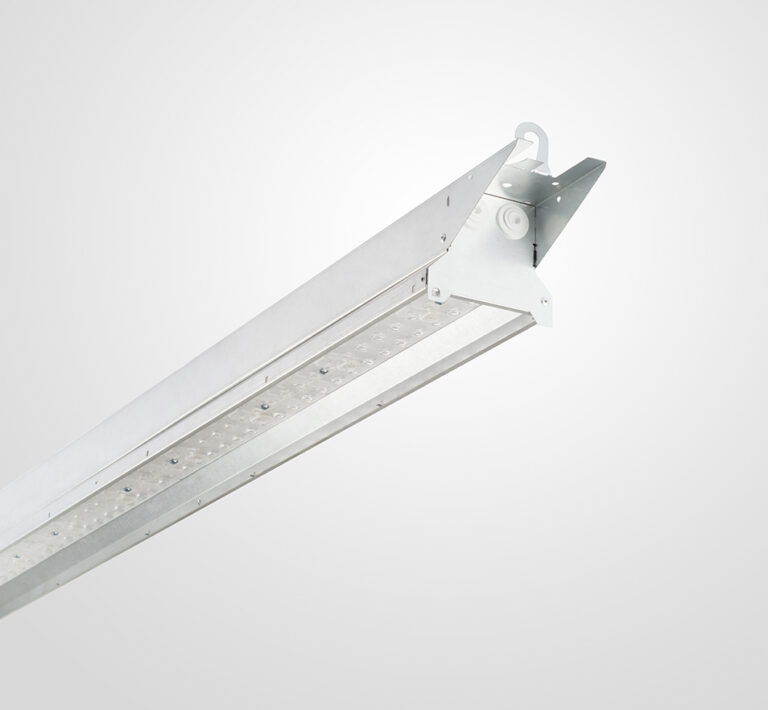

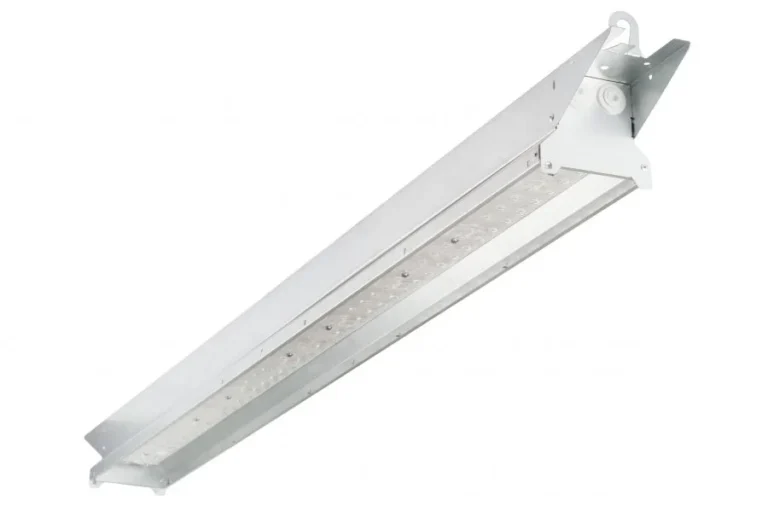

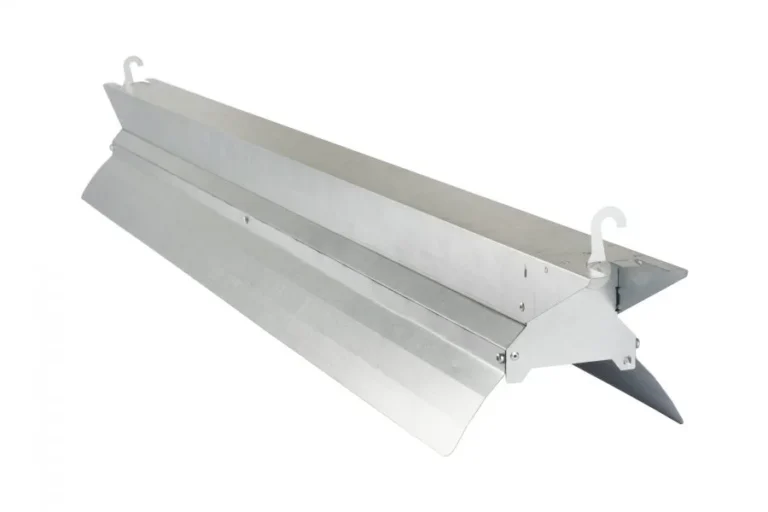

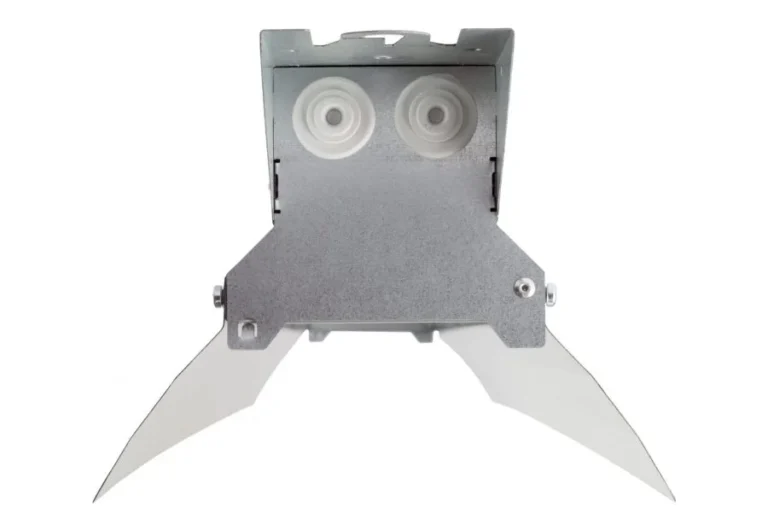

A new generation of high-efficiency industrial LED luminaires with an easy installation solutions. Opening without tools for wire connection. Through-wiring included. General lighting for industries, shops, warehouses and similar premises. The luminaire is available with different light distributions: narrow, medium, wide beam and also asymmetric light distribution for proper lighting for shelves. Suitable for different locations and ceilings. Additional brackets for fixing in to one line. Available versions without reflectors and with reflectors for reducing side glare. Control: On-Off, DALI, SwitchDIM, CorridorFUNCTION.

Coming soon!

Article No Title W Lm Lm / W Louvre CCT(k) Kg (Netto) Kg (Brutto) IES File PDF File
S113007N STEELO PRO 1400 55W 8855lm 30° 840 NoRefl ND 55 8855 161 30° 4000 3,5 4,1 --- ---
S113008N STEELO PRO 1600 70W 11200lm 30° 840 NoRefl ND 70 11200 160 30° 4000 3,5 4,1 --- ---
S113009N STEELO PRO 1600 85W 13430lm 30° 840 NoRef ND 85 13430 158 30° 4000 3,5 4,1 --- ---
S113010N STEELO PRO 1400 55W 8855lm 30° 840 Ref ND 55 8855 161 30° 4000 3,5 4,1 --- ---
S113011N STEELO PRO 1600 70W 11200lm 30° 840 Ref ND 70 11200 160 30° 4000 3,5 4,1 --- ---
S113012N STEELO PRO 1600 85W 13515lm 30° 840 Ref ND 85 13515 159 30° 4000 3,5 4,1 --- ---
S113013N STEELO PRO 1400 55W 8635lm 60° 840 NoRefl ND 55 8635 157 60° 4000 3,5 4,1 --- ---
S113014N STEELO PRO 1600 70W 10850lm 60° 840 NoRefl ND 70 10850 155 60° 4000 3,5 4,1 --- ---
S113015N STEELO PRO 1600 85W 13175lm 60° 840 NoRefl ND 85 13175 155 60° 4000 3,5 4,1 --- ---
S113016N STEELO PRO 1400 55W 8635lm 60° 840 Ref ND 55 8635 157 60° 4000 3,5 4,1 --- ---
S113017N STEELO PRO 1600 70W 10920lm 60° 840 Ref ND 70 10920 156 60° 4000 3,5 4,1 --- ---
S113018N STEELO PRO 1600 85W 13090lm 60° 840 Ref ND 85 13090 154 60° 4000 3,5 4,1 --- ---
S113019N STEELO PRO 1400 55W 8580lm 90° 840 NoRefl ND 55 8580 156 90° 4000 3,5 4,1 --- ---
S113020N STEELO PRO 1600 70W 10850lm 90° 840 NoRefl ND 70 10850 155 90° 4000 3,5 4,1 --- ---
S113021N STEELO PRO 1600 85W 13090lm 90° 840 NoRefl ND 85 13090 154 90° 4000 3,5 4,1 --- ---
S113022N STEELO PRO 1400 55W 8580lm 90° 840 Ref ND 55 8580 156 90° 4000 3,5 4,1 --- ---
S113023N STEELO PRO 1600 70W 10850lm 90° 840 Ref ND 70 10850 155 90° 4000 3,5 4,1 --- ---
S113024N STEELO PRO 1600 85W 13260lm 90° 840 Ref ND 85 13260 156 90° 4000 3,5 4,1 --- ---

Generate PDF

Type
STEELO PRO LED

 Light source
Mid power LEDs

Light color
3000K-4000K-5000K

Color Rendering Index
Ra > 80

Power consumption
55 W, 70 W, 85 W

Driver
 Tridonic - 230V

Optical cover
PMMA

Protection Classes
Class II

Material
Housing - Alusink-Zinc, cover - PMMA.

Operating temperature
- 15 °C ≤ Ta ≤ + 35 °C

Lifetime
L70 > 30000 h (Ts = 85°C)

Remarks
Luminaries are ready to install

Size
1653 mm x 158 mm x 121 mm (with reflector)
1366 mm x 158 mm x 121 mm (with reflector)

1653 mm x 100 mm x 90 mm
1366 mm x 100 mm x 90 mm
