STEELO

A new generation of high-efficiency industrial LED luminaires with an easy installation solutions. Opening without tools for wire connection. Through-wiring included. General lighting for industries, shops, warehouses and similar premises. The luminaire is available with different light distributions: narrow, medium, wide beam and also asymmetric light distribution for proper lighting for shelves. Suitable for different locations and ceilings. Additional brackets for fixing in to one line. Available versions without reflectors and with reflectors for reducing side glare. Control: On-Off, DALI, SwitchDIM, CorridorFUNCTION.

Coming soon!

Article No Title W Lm Lm / W Louvre CCT(k) Kg (Netto) Kg (Brutto) IES File PDF File
S113003N STEELO 1400 55W 8525lm 840 PC NoReflector ND 55 8525 155 115° 4000 3,5 4,1 --- ---
S113002N STEELO 1600 70W 10710lm 840 PC NoReflector ND 70 10710 153 115° 4000 3,5 4,1 --- ---
S113003N STEELO 1600 85W 12920lm 840 PC NoReflector ND 85 12920 152 115° 4000 3,5 4,1 --- ---
S113004N STEELO 1400 55W 8525lm 840 PC WithReflector ND 55 8525 155 115° 4000 3,5 4,1 --- ---
S113005N STEELO 1600 70W 10710lm 840 PC WithReflector 70 10710 153 115° 4000 3,5 4,1 --- ---
S113006N STEELO 1600 85W 12835lm 840 PC WithReflector 85 12835 151 115° 4000 3,5 4,1 --- ---

Generate PDF

Type
STEELO LED

 Light source
Mid power LEDs

Light color
3000K-4000K-5000K

Color Rendering Index
Ra > 80

Power consumption
55 W, 70 W, 85 W

Efficacy

Up to 165 lm/W

Driver
 Tridonic - 230V

Optical cover
PMMA

Protection Classes
Class II



Material
Housing - Alusink-Zinc, cover - PMMA.

Operating temperature
- 15 °C ≤ Ta ≤ + 35 °C

Lifetime
L70 > 30000 h (Ts = 85°C)

Remarks
Luminaries are ready to install

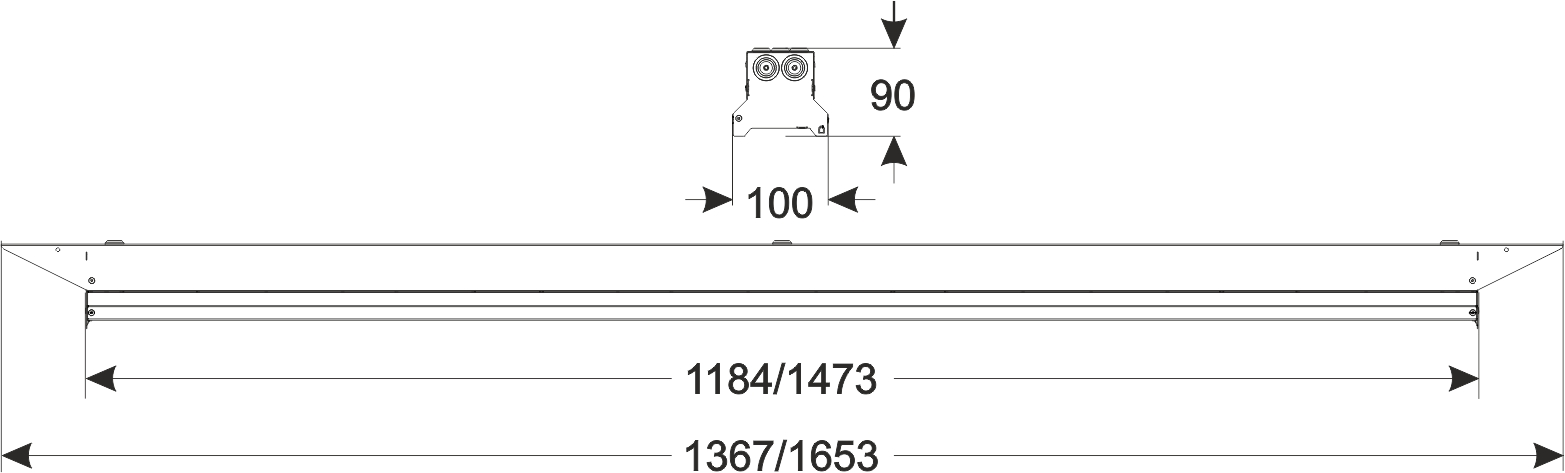

Size
1653 mm x 158 mm x 121 mm (with reflector)
1366 mm x 158 mm x 121 mm (with reflector)

1653 mm x 100 mm x 90 mm
1366 mm x 100 mm x 90 mm

Reference Cases

UAB Lietmeta, Šiauliai, Lithuania

Products used: Indus1, Indus2

DIAMANDE ( Estonia, Tallin)

Jewellery shop in shoping centre. Products used: INDUS 1 (24-900).
