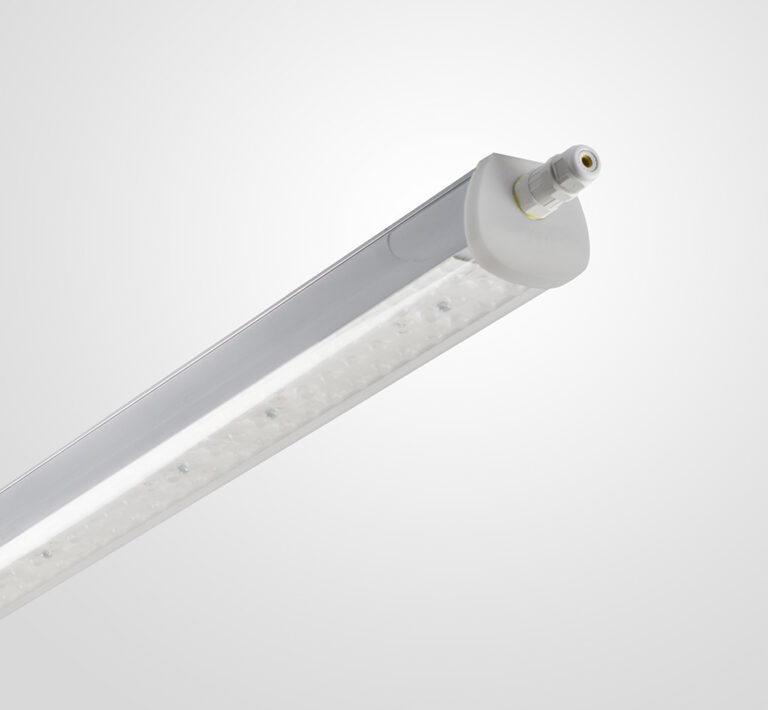

LEDIS PRO

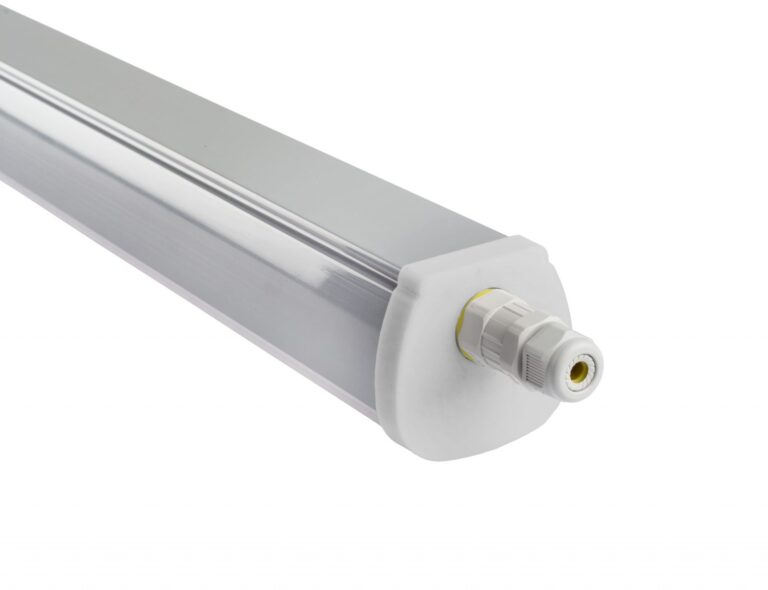

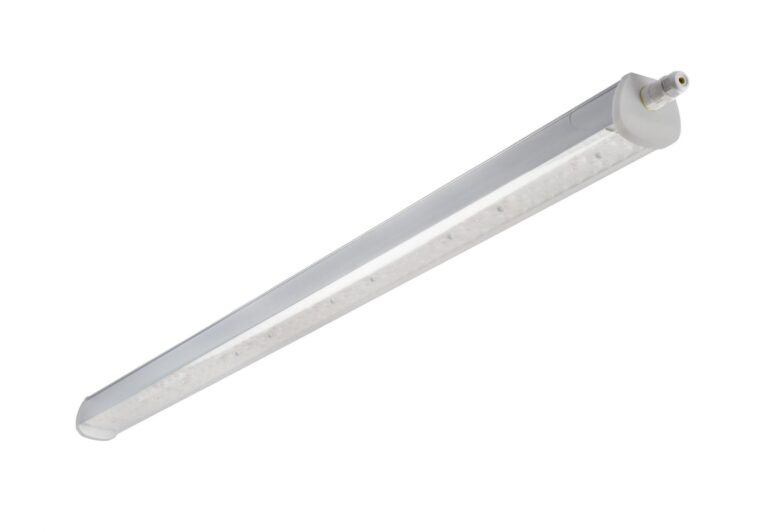

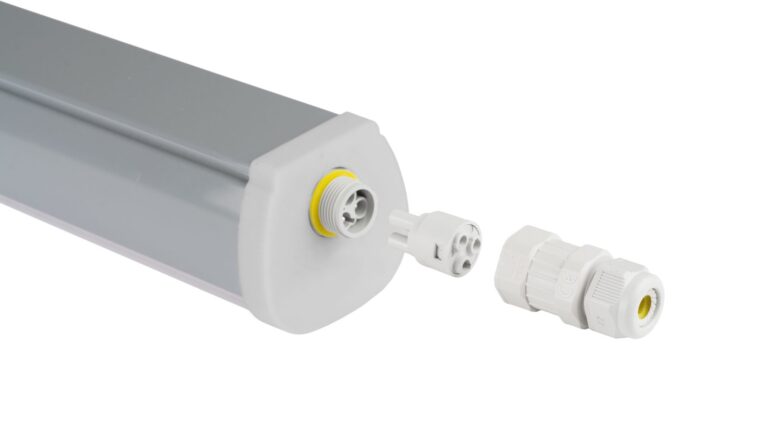

Waterproof (IP66) LED luminaire for industry. Multiple lengths and light levels available. Polycarbonate case with matt and clear diffusers. Through-wiring possible. General lighting for industries, shops, warehouses, parking places and similar premises. Possible with secondary optics with narrow, medium and wide beam. Mounting brackets from spring steel or stainless steel. Brackets can be positioned over full length of luminaire.

Article No Title W Lm Lm / W Louvre CCT(k) Kg (Netto) Kg (Brutto) IES File PDF File
S111211 LEDIS PRO 1,2m 40W 830 30° 5460Lm ND Quick Conn 40 5460 137 30° 3000 1,6 2,1 --- ---
S111212 LEDIS PRO 1,2m 40W 840 30° 5480Lm ND Quick Conn 40 5480 137 30° 4000 1,6 2,1 --- ---
S111213 LEDIS PRO 1,2m 40W 850 30° 5500Lm ND Quick Conn 40 5500 138 30° 5000 1,6 2,1 --- ---
S111214 LEDIS PRO 1,2m 40W 830 60° 5475Lm ND Quick Conn 40 5475 137 60° 3000 1,6 2,1 --- ---
S111215 LEDIS PRO 1,2m 40W 840 60° 5485Lm ND Quick Conn 40 5485 137 60° 4000 1,6 2,1 --- ---
S111216 LEDIS PRO 1,2m 40W 850 60° 5512Lm ND Quick Conn 40 5512 138 60° 5000 1,6 2,1 --- ---
S111217 LEDIS PRO 1,2m 40W 830 90° 5475Lm ND Quick Conn 40 5475 137 90° 3000 1,6 2,1 --- ---
S111218 LEDIS PRO 1,2m 40W 840 90° 5485Lm ND Quick Conn 40 5485 137 90° 4000 1,6 2,1 --- ---
S111219 LEDIS PRO 1,2m 40W 850 90° 5512Lm ND Quick Conn 40 5512 138 90° 5000 1,6 2,1 --- ---
S111220 LEDIS PRO 1,2m 40W 830 Asym° 5475Lm ND Quick Conn 40 5475 137 Asym° 3000 1,6 2,1 --- ---
S111221 LEDIS PRO 1,2m 40W 840 Asym° 5485Lm ND Quick Conn 40 5485 137 Asym° 4000 1,6 2,1 --- ---
S111222 LEDIS PRO 1,2m 40W 850 Asym° 5512Lm ND Quick Conn 40 5512 138 Asym° 5000 1,6 2,1 --- ---
S111223 LEDIS PRO 1,5m 60W 830 30° 8100Lm ND Quick Conn 60 8100 135 30° 3000 2,0 2,5 --- ---
S111224 LEDIS PRO 1,5m 60W 840 30° 8150Lm ND Quick Conn 60 8150 136 30° 4000 2,0 2,5 --- ---
S111225 LEDIS PRO 1,5m 60W 850 30° 8201Lm ND Quick Conn 60 8201 137 30° 5000 2,0 2,5 --- ---
S111226 LEDIS PRO 1,5m 60W 830 60° 8101Lm ND Quick Conn 60 8101 135 60° 3000 2,0 2,5 --- ---
S111227 LEDIS PRO 1,5m 60W 840 60° 8121Lm ND Quick Conn 60 8121 135 60° 4000 2,0 2,5
S111228 LEDIS PRO 1,5m 60W 850 60° 8199Lm ND Quick Conn 60 8199 137 60° 5000 2,0 2,5 --- ---
S111229 LEDIS PRO 1,5m 60W 830 90° 8097Lm ND Quick Conn 60 8097 135 90° 3000 2,0 2,5 --- ---
S111230 LEDIS PRO 1,5m 60W 840 90° 8145Lm ND Quick Conn 60 8145 136 90° 4000 2,0 2,5 --- ---
S111231 LEDIS PRO 1,5m 60W 850 90° 8197Lm ND Quick Conn 60 8197 137 90° 5000 2,0 2,5 --- ---
S111232 LEDIS PRO 1,5m 60W 830 Asym° 8100Lm ND Quick Conn 60 8100 135 Asym° 3000 2,0 2,5 --- ---
S111233 LEDIS PRO 1,5m 60W 840 Asym° 8150Lm ND Quick Conn 60 8150 136 Asym° 4000 2,0 2,5 --- ---
S111234 LEDIS PRO 1,5m 60W 850 Asym° 8201Lm ND Quick Conn 60 8201 137 Asym° 5000 2,0 2,5 --- ---
S112011N LEDIS PRO 1,2m 40W 830 30° 6400Lm ND Quick Conn 40 6400 160 30° 3000 1,6 2,1 --- ---
S112012N LEDIS PRO 1,2m 40W 840 30° 6480Lm ND Quick Conn 40 6480 162 30° 4000 1,6 2,1 --- ---
S112013N LEDIS PRO 1,2m 40W 850 30° 6600Lm ND Quick Conn 40 6600 165 30° 5000 1,6 2,1 --- ---
S112014N LEDIS PRO 1,2m 40W 830 60° 6200Lm ND Quick Conn 40 6200 155 60° 3000 1,6 2,1 --- ---
S112015N LEDIS PRO 1,2m 40W 840 60° 6280Lm ND Quick Conn 40 6280 157 60° 4000 1,6 2,1 --- ---
S112016N LEDIS PRO 1,2m 40W 850 60° 6360Lm ND Quick Conn 40 6360 159 60° 5000 1,6 2,1 --- ---
S112017N LEDIS PRO 1,2m 40W 830 90° 6040Lm ND Quick Conn 40 6040 151 90° 3000 1,6 2,1 --- ---
S112018N LEDIS PRO 1,2m 40W 840 90° 6120Lm ND Quick Conn 40 6120 153 90° 4000 1,6 2,1 --- ---
S112019N LEDIS PRO 1,2m 40W 850 90° 6160Lm ND Quick Conn 40 6160 154 90° 5000 1,6 2,1 --- ---
S112020N LEDIS PRO 1,2m 40W 830 Asym° 6160Lm ND Quick Conn 40 6160 154 Asym° 3000 1,6 2,1 --- ---
S112021N LEDIS PRO 1,2m 40W 840 Asym° 6240Lm ND Quick Conn 40 6240 156 Asym° 4000 1,6 2,1 --- ---
S112022N LEDIS PRO 1,2m 40W 850 Asym° 6280Lm ND Quick Conn 40 6280 157 Asym° 5000 1,6 2,1 --- ---
S112023N LEDIS PRO 1,5m 60W 830 30° 9600Lm ND Quick Conn 60 9600 160 30° 3000 2,0 2,5 --- ---
S112024N LEDIS PRO 1,5m 60W 840 30° 9660Lm ND Quick Conn 60 9660 161 30° 4000 2,0 2,5 --- ---
S112025N LEDIS PRO 1,5m 60W 850 30° 9840Lm ND Quick Conn 60 9840 164 30° 5000 2,0 2,5 --- ---
S112026N LEDIS PRO 1,5m 60W 830 60° 9240Lm ND Quick Conn 60 9240 154 60° 3000 2,0 2,5 --- ---
S112027N LEDIS PRO 1,5m 60W 840 60° 9300Lm ND Quick Conn 60 9300 155 60° 4000 2,0 2,5 --- ---
S112028N LEDIS PRO 1,5m 60W 850 60° 9360Lm ND Quick Conn 60 9360 156 60° 5000 2,0 2,5 --- ---
S112029N LEDIS PRO 1,5m 60W 830 90° 9060Lm ND Quick Conn 60 9060 151 90° 3000 2,0 2,5 --- ---
S112030N LEDIS PRO 1,5m 60W 840 90° 9180Lm ND Quick Conn 60 9180 153 90° 4000 2,0 2,5 --- ---
S112031N LEDIS PRO 1,5m 60W 850 90° 9240Lm ND Quick Conn 60 9240 154 90° 5000 2,0 2,5 --- ---
S112032N LEDIS PRO 1,5m 60W 830 Asym° 9240Lm ND Quick Conn 60 9240 154 Asym° 3000 2,0 2,5 --- ---
S112033N LEDIS PRO 1,5m 60W 840 Asym° 9360Lm ND Quick Conn 60 9360 156 Asym° 4000 2,0 2,5 --- ---
S112034N LEDIS PRO 1,5m 60W 850 Asym° 9420Lm ND Quick Conn 60 9420 157 Asym° 5000 2,0 2,5 --- ---
S112035N LEDIS PRO 1,5m 71W 840 30° 10792Lm ND Quick Conn 71 10792 152 30° 4000 2,0 2,5 --- ---
S112036N LEDIS PRO 1,5m 71W 840 60° 10721Lm ND Quick Conn 71 10721 151 60° 4000 2,0 2,5 --- ---

Generate PDF

Type
LEDIS PRO LED

 Light source
Mid power LEDs

Light color
3000K-4000K-5000K

Color Rendering Index
Ra > 80

Power consumption
40 W, 60W, 70Wmax

Efficacy

Up to 165 lm/W

Driver
 Helvar - 230V

DIFFUSER
Clear

Protection Classes
Class II

Material
Housing - PC, cover - PC.
Mounting bracket - spring steel.





Color
Light gray

Operating temperature
- 15 °C ≤ Ta ≤ + 40 °C

Lifetime
L70 > 60000 h (Ts = 85°C), L70B10 - 80000 h

Remarks
Luminaries are ready to install

Size
1200 mm x 72 mm x 68 mm,
1500 mm x 72 mm x 68 mm
