IRIS 1 5050

NEW Energy efficient luminaires „IRIS1“. Harmonious shape and aesthetic design, highperformance and efficiency. Photometric solutions for lighting streets, highways, parking stations, railway platforms, pedestrian areas, parks, and bike paths and etc. Various types of power (up to 130W and various optical light distributions. Maintenance without tools. Control: 1-10V, DALI, DSI, chronoSTEP. Housing: high-pressure die-cast aluminum, painted. Recommended mounting height: 6 – 12 m.



Article No Title W Lm Lm / W Louvre CCT(k) Kg (Netto) Kg (Brutto) IES File PDF File
S115002 IRIS1-16 740 20W 3184Lm AS8 20 3184 159 AS8 4000 5,5 6,5 --- ---
S115003 IRIS1-16 740 20W 3227Lm AS9 20 3227 161 AS9 4000 5,5 6,5 --- ---
S115005 IRIS1-16 740 20W 3213Lm AS14 20 3213 161 AS14 4000 5,5 6,5 --- ---
S115012 IRIS1-16 740 30W 4724Lm AS8 30 4724 157 AS8 4000 5,5 6,5 --- ---
S115013 IRIS1-16 740 30W 4786Lm AS9 30 4786 160 AS9 4000 5,5 6,5 --- ---
S115015 IRIS1-16 740 30W 4775Lm AS14 30 4775 159 AS14 4000 5,5 6,5 --- ---
S115022 IRIS1-16 740 40W 6041Lm AS8 40 6041 151 AS8 4000 5,5 6,5 --- ---
S115023 IRIS1-16 740 40W 6124Lm AS9 40 6124 153 AS9 4000 5,5 6,5 --- ---
S115025 IRIS1-16 740 40W 6109Lm AS14 40 6109 153 AS14 4000 5,5 6,5 --- ---
S115035 IRIS1-32 740 30W 5058Lm AS9 30 5058 169 AS9 4000 5,5 6,5 --- ---
S115037 IRIS1-32 740 30W 5048Lm AS14 30 5048 168 AS14 4000 5,5 6,5 --- ---
S115045 IRIS1-32 740 40W 6583Lm AS9 40 6583 165 AS9 4000 5,5 6,5 --- ---
S115047 IRIS1-32 740 40W 6717Lm AS14 40 6717 168 AS14 4000 5,5 6,5 --- ---
S115057 IRIS1-32 740 50W 8225Lm AS9 50 8225 165 AS9 4000 5,5 6,5 --- ---
S115059 IRIS1-32 740 50W 8132Lm AS14 50 8132 163 AS14 4000 5,5 6,5 --- ---
S115069 IRIS1-32 740 60W 9631Lm AS9 60 9631 161 AS9 4000 5,5 6,5 --- ---
S115071 IRIS1-32 740 60W 9610Lm AS14 60 9610 160 AS14 4000 5,5 6,5 --- ---
S115081 IRIS1-32 740 70W 10958Lm AS9 70 10958 157 AS9 4000 5,5 6,5 --- ---
S115083 IRIS1-32 740 70W 10947Lm AS14 70 10947 156 AS14 4000 5,5 6,5 --- ---
S115093 IRIS1-32 740 80W 12214Lm AS9 80 12214 153 AS9 4000 5,5 6,5 --- ---
S115105 IRIS1-32 740 90W 13432Lm AS9 90 13432 149 AS9 4000 5,5 6,5 --- ---
S115107 IRIS1-32 740 90W 13434Lm AS14 90 13434 149 AS14 4000 5,5 6,5 --- ---
S115095 IRIS1-32 740 80W 12155Lm AS14 80 12155 152 AS14 4000 5,5 6,5 --- ---
S115104 IRIS1-32 740 90W 13220Lm AS8 90 13220 147 AS8 4000 5,5 6,5 --- ---
S115092 IRIS1-32 740 80W 12061Lm AS8 80 12061 151 AS8 4000 5,5 6,5 --- ---
S115080 IRIS1-32 740 70W 10810Lm AS8 70 10810 154 AS8 4000 5,5 6,5 --- ---
S115034 IRIS1-32 740 30W 4993Lm AS8 30 4993 166 AS8 4000 5,5 6,5 --- ---
S115056 IRIS1-32 740 50W 8162Lm AS8 50 8162 163 AS8 4000 5,5 6,5 --- ---
S115044 IRIS1-32 740 40W 6647Lm AS8 40 6647 166 AS8 4000 5,5 6,5 --- ---
S115068 IRIS1-32 740 60W 9479Lm AS8 60 9479 158 AS8 4000 5,5 6,5 --- ---
S115115 IRIS1-32 740 100W 14344Lm AS8 100 14344 143 AS8 4000 5,5 6,5 --- ---
S115116 IRIS1-32 740 100W 14585Lm AS9 100 14585 146 AS9 4000 5,5 6,5 --- ---
S115118 IRIS1-32 740 100W 14357Lm AS14 100 14357 144 AS14 4000 5,5 6,5 --- ---
S115139 IRIS1-48 740 70W 11374Lm AS8 70 11374 162 AS8 4000 5,5 6,5 --- ---
S115130 IRIS1-48 740 60W 9876Lm AS14 60 9876 165 AS14 4000 5,5 6,5 --- ---
S115127 IRIS1-48 740 60W 9815Lm AS8 60 9815 164 AS8 4000 5,5 6,5 --- ---
S115142 IRIS1-48 740 70W 11371Lm AS14 70 11371 162 AS14 4000 5,5 6,5 --- ---
S115128 IRIS1-48 740 60W 9926Lm AS9 60 9926 165 AS9 4000 5,5 6,5 --- ---
S115140 IRIS1-48 740 70W 11418Lm AS9 70 11418 163 AS9 4000 5,5 6,5 --- ---
S115152 IRIS1-48 740 80W 13065Lm AS9 80 13065 163 AS9 4000 5,5 6,5 --- ---
S115164 IRIS1-48 740 90W 14467Lm AS9 90 14467 161 AS9 4000 5,5 6,5 --- ---
S115176 IRIS1-48 740 100W 15822Lm AS9 100 15822 158 AS9 4000 5,5 6,5 --- ---
S115188 IRIS1-48 740 110W 17062Lm AS9 110 17062 155 AS9 4000 5,5 6,5 --- ---
S115200 IRIS1-48 740 120W 18215Lm AS9 120 18215 152 AS9 4000 5,5 6,5 --- ---
S115212 IRIS1-48 740 130W 19359Lm AS9 130 19359 149 AS9 4000 5,5 6,5 --- ---
S115214 IRIS1-48 740 130W 19303Lm AS14 130 19303 148 AS14 4000 5,5 6,5 --- ---
S115202 IRIS1-48 740 120W 18145Lm AS14 120 18145 151 AS14 4000 5,5 6,5 --- ---
S115190 IRIS1-48 740 110W 16913Lm AS14 110 16913 154 AS14 4000 5,5 6,5 --- ---
S115178 IRIS1-48 740 100W 15691Lm AS14 100 15691 157 AS14 4000 5,5 6,5 --- ---
S115166 IRIS1-48 740 14599Lm 90W AS14 90 14599 162 AS14 4000 5,5 6,5 --- ---
S115154 IRIS1-48 740 80W 13014Lm AS14 80 13014 163 AS14 4000 5,5 6,5 --- ---
S115151 IRIS1-48 740 80W Lm12951Lm AS8 80 12951 162 AS8 4000 5,5 6,5 --- ---
S115262 IRIS1-48 740 90W 14283Lm AS8 80 14283 179 AS8 4000 5,5 6,5 --- ---
S115175 IRIS1-48 740 100W 15630Lm AS8 100 15630 156 AS8 4000 5,5 6,5 --- ---
S115199 IRIS1-48 740 120W 17965Lm AS8 120 17965 150 AS8 4000 5,5 6,5 --- ---
S115187 IRIS1-48 740 110W 16816Lm AS8 110 16816 153 AS8 4000 5,5 6,6 --- ---
S115211 IRIS1-48 740 130W 19081Lm AS8 130 19081 147 AS8 4000 5,5 6,6 --- ---
S115007 IRIS1-16 730 20W 3024Lm AS8 20 3024 151 AS8 3000 5,5 6,6 --- ---
S115017 IRIS1-16 730 30W 4470Lm AS8 30 4470 149 AS8 3000 5,5 6,6 --- ---
S115027 IRIS1-16 730 5758Lm 40W AS8 40 5758 144 AS8 3000 5,5 6,6 --- ---
S115028 IRIS1-16 730 5811Lm 40W AS9 40 5811 145 AS9 3000 5,5 6,6 --- ---
S115018 IRIS1-16 730 4494Lm 30W AS9 30 4494 150 AS9 3000 5,5 6,6 --- ---
S115008 IRIS1-16 730 3074Lm 20W AS9 20 3074 154 AS9 3000 5,5 6,6 --- ---
S115010 IRIS1-16 730 3044Lm 20W AS14 20 3044 152 AS14 3000 5,5 6,6 --- ---
S115020 IRIS1-16 730 30W 4514Lm AS14 30 4514 150 AS14 3000 5,5 6,6 --- ---
S115030 IRIS1-16 730 5802Lm 40W AS14 40 5802 145 AS14 3000 5,5 6,6 --- ---
S115039 IRIS1-32 730 4761Lm 30W AS8 30 4761 159 AS8 3000 5,5 6,6 --- ---
S115042 IRIS1-32 730 4810Lm 30W AS14 30 4810 160 AS14 3000 5,5 6,6 --- ---
S115049 IRIS1-32 730 6339Lm 40W AS8 40 6339 158 AS8 3000 5,5 6,6 --- ---
S115050 IRIS1-32 730 6380Lm 40W AS9 40 6380 160 AS9 3000 5,5 6,6 --- ---
S115052 IRIS1-32 730 6364Lm 40W AS14 40 6364 159 AS14 3000 5,5 6,6 --- ---
S115061 IRIS1-32 730 7783Lm 50W AS8 50 7783 156 AS8 3000 5,5 6,6 --- ---
S115062 IRIS1-32 730 7829Lm 50W AS9 50 7829 157 AS9 3000 5,5 6,6 --- ---
S115064 IRIS1-32 730 7713Lm 50W AS14 50 7713 154 AS14 3000 5,5 6,6 --- ---
S115073 IRIS1-32 730 9087Lm 60W AS8 60 9087 151 AS8 3000 5,5 6,6 --- ---
S115074 IRIS1-32 730 9182Lm 60W AS9 60 9182 153 AS9 3000 5,5 6,6 --- ---
S115076 IRIS1-32 730 9135Lm 60W AS14 60 9135 152 AS14 3000 5,5 6,6 --- ---
S115085 IRIS1-32 730 10398Lm 70W AS8 70 10398 149 AS8 3000 5,5 6,6 --- ---
S115086 IRIS1-32 730 10433Lm 70W AS9 70 10433 149 AS9 3000 5,5 6,6 --- ---
S115088 IRIS1-32 730 10313Lm 70W AS14 70 10313 147 AS14 3000 5,5 6,6 --- ---
S115097 IRIS1-32 730 11486Lm 80W 80 11486 144 AS8 3000 5,5 6,6 --- ---
S115098 IRIS1-32 730 11662Lm 80W AS9 80 11662 146 AS9 3000 5,5 6,6 --- ---
S115100 IRIS1-32 730 11545Lm 80W AS14 80 11545 144 AS14 3000 5,5 6,6 --- ---
S115109 IRIS1-32 730 12616Lm 90W AS8 90 12616 140 AS8 3000 5,5 6,6 --- ---
S115110 IRIS1-32 730 12612Lm 90W AS9 90 12612 140 AS9 3000 5,5 6,6 --- ---
S115112 IRIS1-32 730 12661Lm 90W AS14 90 12661 141 AS14 3000 5,5 6,6 --- ---
S115120 IRIS1-32 730 13741Lm 100W AS8 100 13741 137 AS8 3000 5,5 6,6 --- ---
S115121 IRIS1-32 730 13700Lm 100W AS9 100 13700 137 AS9 3000 5,5 6,6 --- ---
S115123 IRIS1-32 730 13683Lm 100W AS14 100 13683 137 AS14 3000 5,5 6,6 --- ---
S115132 IRIS1-48 730 9724Lm 60W AS8 60 9724 162 AS8 3000 5,5 6,6 --- ---
S115133 IRIS1-48 730 9884Lm 60W AS9 60 9884 165 AS9 3000 5,5 6,6 --- ---
S115135 IRIS1-48 730 9763Lm 60W AS14 60 9763 163 AS14 3000 5,5 6,6 --- ---
S115144 IRIS1-48 730 11121Lm 70W AS8 70 11121 159 AS8 3000 5,5 6,6 --- ---
S115145 IRIS1-48 730 11196Lm 70W AS9 70 11196 160 AS9 3000 5,5 6,6 --- ---
S115147 IRIS1-48 730 10983Lm 70W AS14 70 10983 157 AS14 3000 5,5 6,6 --- ---
S115156 IRIS1-48 730 12427Lm 80W AS8 80 12427 155 AS8 3000 5,5 6,6 --- ---
S115157 IRIS1-48 730 12579Lm 80W AS9 80 12579 157 AS9 3000 5,5 6,6 --- ---
S115159 IRIS1-48 730 12479Lm 80W AS14 80 12478 156 AS14 3000 5,5 6,6 --- ---
S115168 IRIS1-48 730 13746Lm 90W AS8 90 13746 153 AS8 3000 5,5 6,6 --- ---
S115169 IRIS1-48 730 13918Lm 90W AS9 90 13918 155 AS9 3000 5,5 6,6 --- ---
S115171 IRIS1-48 730 13849Lm 90W AS14 90 13849 154 AS14 3000 5,5 6,6 --- ---
S115180 IRIS1-48 730 15093Lm 100W AS8 100 15093 151 AS8 3000 5,5 6,6 --- ---
S115181 IRIS1-48 730 15082Lm 100W AS9 100 15082 151 AS9 3000 5,5 6,6 --- ---
S115183 IRIS1-48 730 15019Lm 100W AS14 100 15019 150 AS14 3000 5,5 6,6 --- ---
S115192 IRIS1-48 730 16064Lm 110W AS8 110 16064 146 AS8 3000 5,5 6,6 --- ---
S115193 IRIS1-48 730 16290Lm 110W AS9 110 16290 148 AS9 3000 5,5 6,6 --- ---
S115195 IRIS1-48 730 16087Lm 110W AS14 110 16087 146 AS14 3000 5,5 6,6 --- ---
S115204 IRIS1-48 730 17125Lm 120W AS8 120 17125 143 AS8 3000 5,5 6,6 --- ---
S115205 IRIS1-48 730 17343Lm 120W AS9 120 17343 145 AS9 3000 5,5 6,6 --- ---
S115207 IRIS1-48 730 17277Lm 120W AS14 120 17277 144 AS14 3000 5,5 6,6 --- ---
S115216 IRIS1-48 730 18156Lm 130W AS8 130 18156 140 AS8 3000 5,5 6,6 --- ---
S115217 IRIS1-48 730 18445Lm 130W AS9 130 18445 142 AS9 3000 5,5 6,6 --- ---
S115219 IRIS1-48 730 18327Lm 130W AS14 130 18327 141 AS14 3000 5,5 6,6 --- ---

Generate PDF

     AS9                                                          AS8                                                          AS14

Type

IRIS 1

Light source

Power LED

Light color

2700 - 6500K

Color Rendering Index

Ra > 70

Power

From 20 W to 130 W

Efficacy

Up to 169 lm/W

Interfaces ( optional)

- one4all (DALI DT 6, DSI,

switchDIM, corridorFUNCTION V2) - ready2mains (configuration and

dimming via mains)

- U6Me2 (configuration of

chronoSTEP 2 via mains)

Suitable for mains voltage peaks

(burst/surge)

10kV

Driver

180 – 264VAC, 176 – 280 VDC

Class I, Class II





Optics

Asymmetric optics lens(PMMA).

Optical cover

Glass, thermally hardened

Tool-less

Lid opening and driver change

Safe Maintenance Technology safety switch disconnects power on opening

Material

Heat sink: Cast aluminum, painted

Color

Grey RAL 7015 or RAL7035

Operating temperature

-40°C ≤ Ta ≤ +40°C

Life expectancy L/B

L90 B10 by 100000 hrs (Ts = 25°C)

Maintenance

Optical module sealed for life No internal cleaning required

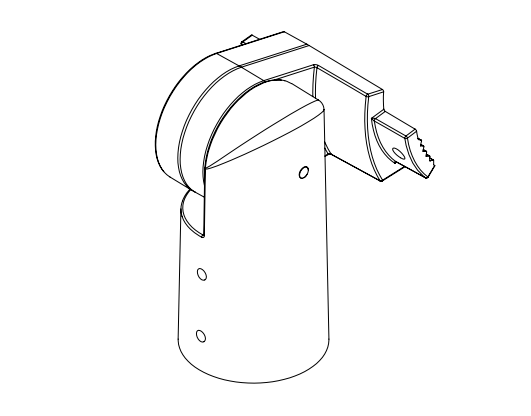

Installation

Adjustable bracket:

angle -20° +20°, Ø 42- 60mm, (60-76 mm optional)

Remarks

Luminaries are ready to install

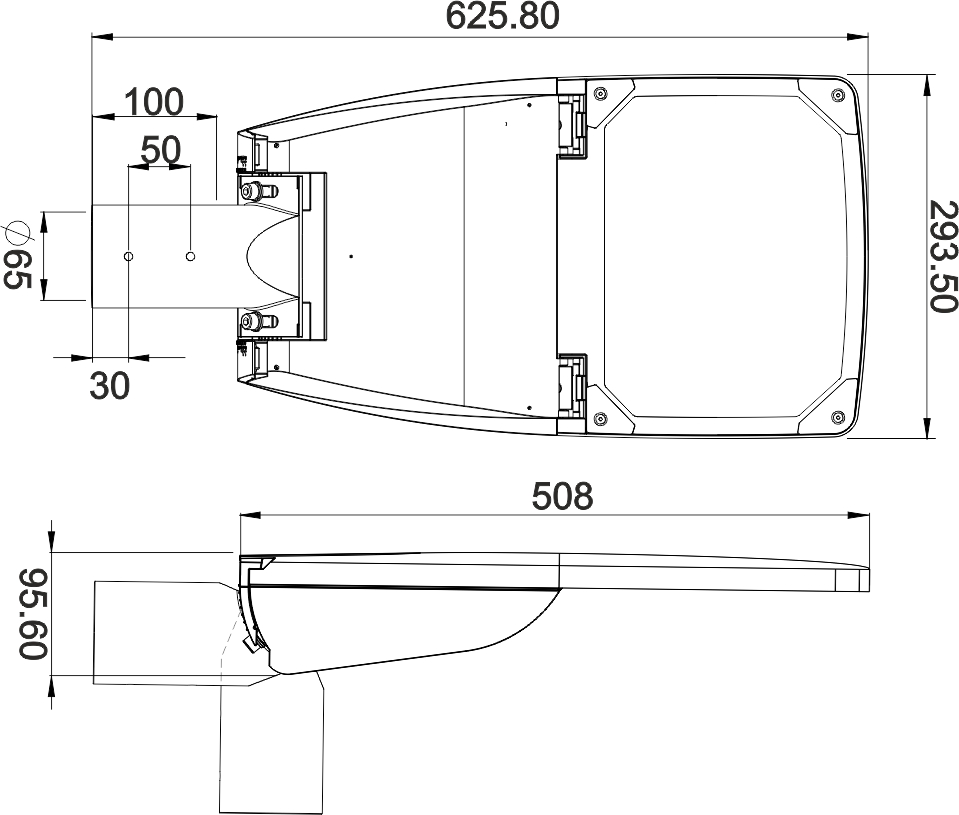

Size

510 x 290 x 95 mm
