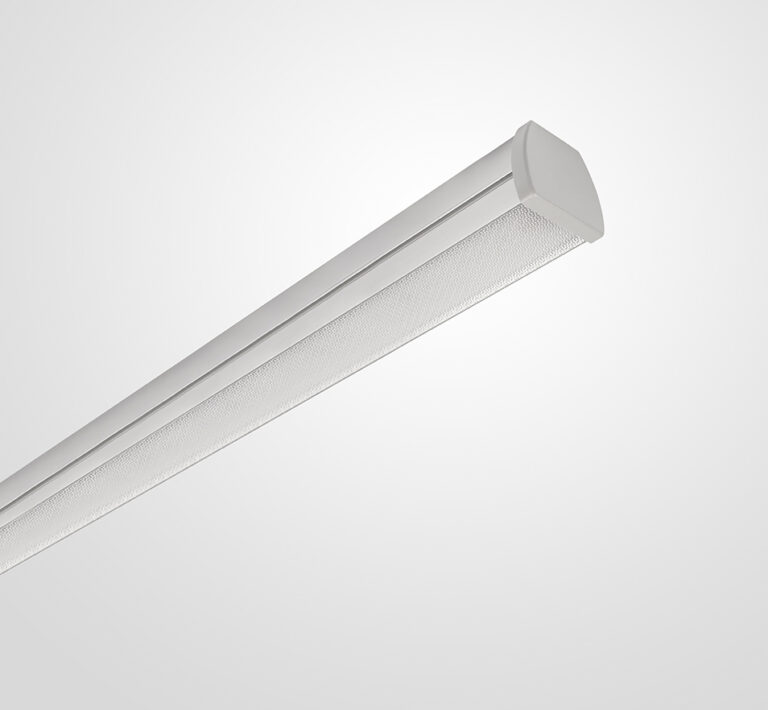

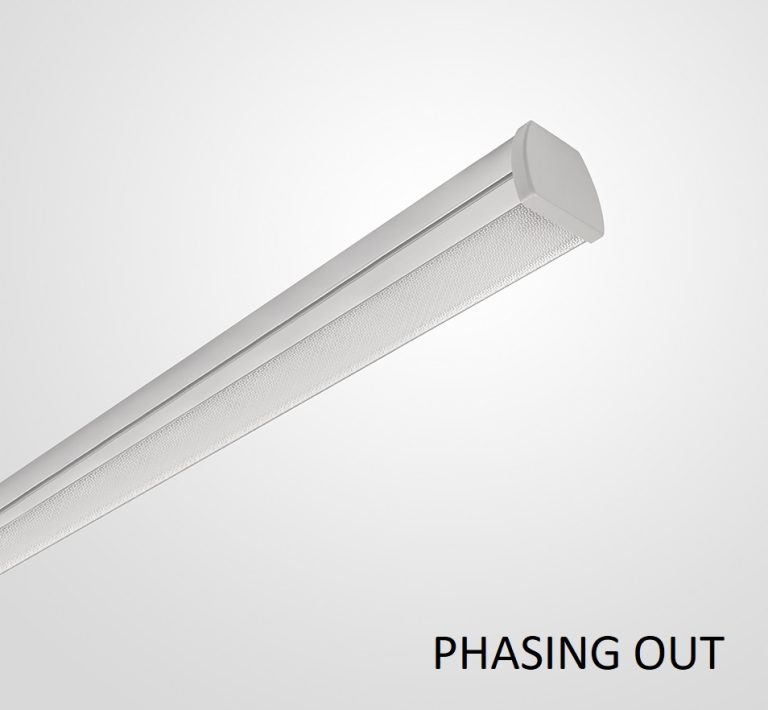

INDUS 2 (Midpower Led)

Line of the luminaries INDUS 2 is created for replacement of traditional light sources or for the low bay applications. The simple design, high reliability, and powerful light emitting diodes of company Osram or  LG Innotek, – here, what distinguishes our products. Parking places, warehouses, terminals, industrial refrigerators, shops, shops on processing, the food and medical industry, the furniture industry, car-care centers and parking places – most frequently used applications. The aluminum case, plastic details completely are a subject to processing.

Article No Title W Lm Lm / W Louvre CCT(k) Kg (Netto) Kg (Brutto) IES File PDF File
101001 INDUS2 4-300M 32LED 1026Lm IP66 840 9W PC1 ND 9 1 0 PC1 4000 0.57 0.81 ---
101046 INDUS2 4-300M 64 LED 2100Lm IP66 840 18W PC1 ND 18 0 PC1 4000 0,57 0,81 ---
101047 INDUS2 4-300M 64 LED 2050Lm IP66 840 18W PC3 ND 18 0 PC3 4000 0,57 0,81 ---
101003 INDUS2 8-600M 64LED 2090Lm IP66 840 18W PC1 ND 18 0 PC1 4000 1,07 1,29 ---
101048 INDUS2 8-600M 64LED 2090Lm IP66 840 18W PC3 ND 18 0 PC3 4000 1,07 1,29 ---
S101007 INDUS2 16-600MLED 4499Lm IP66 840 35W PC1 ND 35 4499 129 PC1 4000 1,07 1,29
S101035 INDUS2 16-600MLED 4499Lm IP66 840 35W PC1 DM 35 4499 129 PC1 4000 1,07 1,29
S101023 INDUS2 16-600MLED 4349Lm IP66 840 35W PC3 ND 35 4349 124 PC3 4000 1,07 1,29 ---
S101049 INDUS2 16-600MLED 4349Lm IP66 840 35W PC3 DM 35 4349 124 PC3 4000 1,07 1,29 ---
101011 INDUS2 12-900M 96LED 3190Lm IP66 840 28W PC1 ND 28 0 PC1 4000 1,8 2,12 ---
101037 INDUS2 12-900M 96LED 3190Lm IP66 840 28W PC1 DM 28 0 PC1 4000 1,8 2,12 ---
101024 INDUS2 12-900M 96LED 3100Lm IP66 840 28W PC3 ND 28 0 PC3 4000 1,8 2,12 ---
101050 INDUS2 12-900M 96LED 3100Lm IP66 840 28W PC3 DM 28 0 PC3 4000 1,8 2,12 ---
S101014 INDUS2 24-900MLED 6748Lm IP66 840 50W PC1 ND 50 6748 135 PC1 4000 1,8 2,12 ---
S101025 INDUS2 24-900MLED 6610Lm IP66 840 50W PC3 ND 50 6610 132 PC3 4000 1,8 2,12 ---
S101017 INDUS2 24-900MLED 6748Lm IP66 840 50W PC1 DM 50 6748 135 PC1 4000 1,8 2,12 ---
S101026 INDUS2 24-900MLED 6610Lm IP66 840 50W PC3 DM 50 6610 132 PC3 4000 1,8 2,12 ---
S101021 INDUS2 24-900MLED 6748Lm IP66 840 50W PC1 ND EM 1-3h 50 6748 135 PC1 4000 1,8 2,12 ---
S101031 INDUS2 24-900MLED 6610Lm IP66 840 50W PC3 ND EM 1-3h 50 6610 132 PC3 4000 1,8 2,12 ---
101042 INDUS2 24-900MLED 6748Lm IP66 840 50W PC1 ND RF60 50 6748 135 PC1 4000 1,8 2,12 ---
101043 INDUS2 24-900MLED 6610Lm IP66 840 50W PC3 ND RF60 50 6610 132 PC3 4000 1,8 2,12 ---
101044 INDUS2 24-900MLED 6748Lm IP66 840 50W PC1 DM RF60 50 6748 135 PC1 4000 1,8 2,12 ---
101045 INDUS2 24-900MLED 6610Lm IP66 840 50W PC3 DM RF60 50 6610 132 PC3 4000 1,8 2,12 ---
S101051 INDUS2 32-1210MLED 8890Lm IP66 840 70W PC1 ND 70 8890 127 PC1 4000 1,99 2,43
101052 IINDUS2 32-1210MLED 8610Lm IP66 840 70W PC3 ND 70 8610 123 PC3 4000 1,99 2,43 ---
101053 INDUS2 32-1210MLED 8890Lm IP66 840 70W PC1 DM 70 8890 127 PC1 4000 1,99 2,43
101054 IINDUS2 32-1210MLED 8610Lm IP66 840 70W PC3 DM 70 8610 123 PC3 4000 1,99 2,43 ---
SP101052 INDUS2 32-1210MLED 5160Lm IP66 840 40W PC3 ND 40 5160 129 PC3 4000 1.99 2.43 --- ---

Generate PDF

Package dimensions
L370 x W90 x H90 mm - 0,003, L670 x W90 x H90 mm  -   0,005 CBM, L970 x W90 x H90 mm  -   0,007 CBM, L1270 x W90 x H90 mm - 0,010 CBM



Optic Type PC1 OPTIC Type PC2 Optic Type PC3
111+1 222+2





Suspension Bracket ( Included) Rotating wall bracket 1pc (optional)
18 17

Type
INDUS 2 Midpower LED

Light source
Mid Power LED

Light color
2700 - 6500 K

Color Rendering Index
Ra > 80

Power consumption
9 W, 18 W, 28W, 35W, 40W, 50W, 70W

Interfaces ( optional)

  • DALI Device Type 6
  • DSI
  • switchDIM (with memory function)
  • corridorFUNCTION

Emergency module 1-3h (optional)

Integrated motion senor (optional)

Driver
198 – 264 VAC/ 176 – 280 VDC

Inrush current (peak / duration)
25 A / 246 μs

Suitable for mains voltage peaks (burst/surge)
up to 2 kV

Optical cover
PC, PMMA

Resistance to mechanical impact
IK07 / IK08

Protection Classes
Class I

Connection
Supply cable 1,00 m

Material
Heat sink: aluminum extrusion, anodized
Mounting bracket: steel

Color
Grey

Operating temperature
-30°C ≤ Ta ≤ +55°C

Lifetime
L70 > 60000 h (Ts = 85°C), L70B10 - 80000h

Maintenance
Optical module sealed for life
No internal cleaning required
Bracket for suspended mounting

Remarks
Luminaries are ready to install

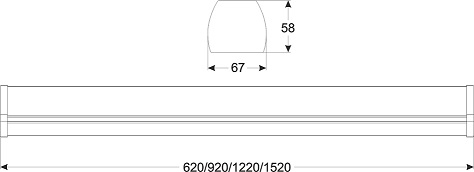

Size
320 x 58 x 55 mm
620 x 58 x 55 mm
920 x 58 x 55 mm

1210 x 58 x 55 mm

Reference Cases

UAB Trivilita, Šiauliai, Lithuania

Products used: Indus1, Indus2

Shop KOTRYNA (Lithuania, Vilnius)

Shop illumination. Products used: SIGMA20, OFI.

SC Mandarinas ( Lithuania, Vilnius)

Shopping centre renovation. Customized products.

TUVLITA Technical Inspection Centre (Lithuania, Vilnius)

Products used: INDUS 1, AREA 1, LOTUS 1.
