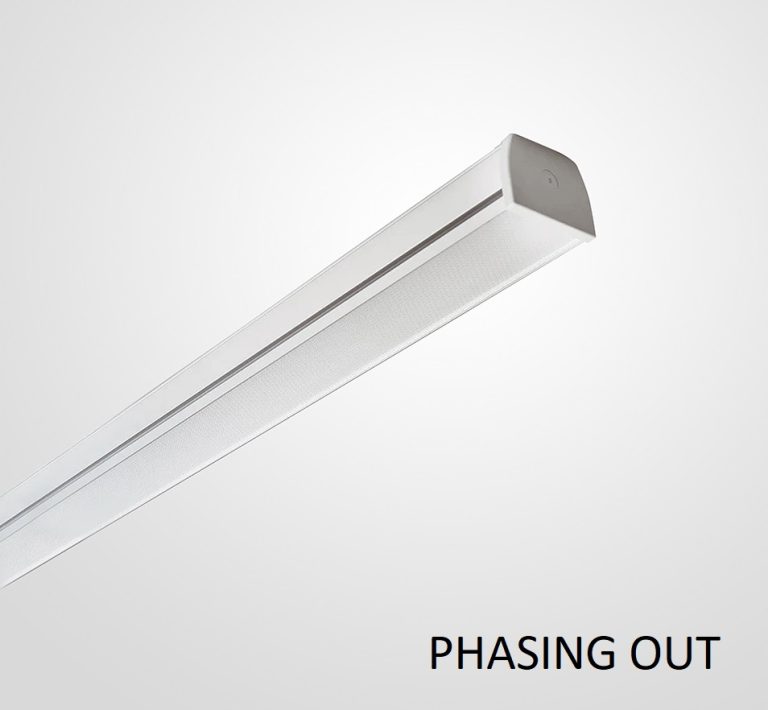

INDUS 1 (Power LED)

Line of the luminaries INDUS 1 is created for replacement of traditional light sources or for the high bay applications. The simple design, high reliability, and powerful light emitting diodes of company Lumileds® or Osram – here, what distinguishes our products. Warehouses, terminals, industrial refrigerators, shops, shops on processing, the food and medical industry, the furniture industry, car care centers and parking places, other – most frequently used applications. The aluminum case, tempered glass, plastic details completely are a subject to processing.

Article No Title W Lm Lm / W Louvre CCT(k) Kg (Netto) Kg (Brutto) IES File PDF File
100001 INDUS1 16-600 16LED 3640m IP66 740 36W S11 CG ND 36 3640 101 S11 4000 2.1 2,39 ---
100002 INDUS1 16-600 16LED 3530Lm IP66 740 36W AS1 CG ND 36 3530 98 AS1 4000 2,1 2,39 ---
100003 INDUS1 16-600 16LED 3640Lm IP66 740 36W AS2 CG ND 36 3640 101 AS2 4000 2,1 2,39 ---
100004 INDUS1 16-600 16LED 3640Lm IP66 740 36W S18 CG ND 36 3640 101 S18 4000 2,1 2,39 ---
100005 INDUS1 16-600 16LED 3640Lm IP66 740 36W S11 CG DM 36 3640 101 S11 4000 2,1 2,39 ---
100006 INDUS1 16-600 16LED 3530Lm IP66 740 36W AS1 CG DM 36 3530 98 AS1 4000 2,1 2,39 ---
100007 INDUS1 16-600 16LED 3640Lm IP66 740 36W AS2 CG DM 36 3640 101 AS2 4000 2,1 2,39 ---
100008 INDUS1 16-600 16LED 3640Lm IP66 740 36W S18 CG DM 36 3640 101 S18 4000 2,1 2,39 ---
100009 INDUS1 24-900 24LED 5450Lm IP66 740 54W S11 CG ND 54 5450 101 S11 4000 3,65 4,06 ---
100010 INDUS1 24-900 24LED 5350Lm IP66 740 54W AS1 CG ND 54 5350 99 AS1 4000 3,65 4,06 ---
100011 INDUS1 24-900 24LED 5450Lm IP66 740 54W AS2 CG ND 54 5450 101 AS2 4000 3,65 4,06 ---
100012 INDUS1 24-900 24LED 5450Lm IP66 740 54W S18 CG ND 54 5450 101 S18 4000 3,65 4,06 ---
100013 INDUS1 24-900 24LED 5450Lm IP66 740 54W S11 CG DM 54 5450 101 S11 4000 3,65 4,06 ---
100014 INDUS1 24-900 24LED 5350Lm IP66 740 54W AS1 CG DM 54 5350 99 AS1 4000 3,65 4,06 ---
100015 INDUS1 24-900 24LED 5450Lm IP66 740 54W AS2 CG DM 54 5450 101 AS2 4000 3,65 4,06 ---
100016 INDUS1 24-900 24LED 5450Lm IP66 740 54W S18 CG DM 54 5450 101 S18 4000 3,65 4,06 ---
100039 INDUS1 32-900 32LED 7270Lm IP66 740 72W S11 CG ND 72 7270 101 S11 4000 3,75 4,16 ---
S100086 INDUS1 32-900 LED 10913Lm IP66 740 85W AS7 CG ND 85 10913 128 AS7 4000 3,75 4,16 ---
100087 INDUS1 32-900 32LED 7270Lm IP66 740 72W S11 CG ND, EN 1-3 H 72 7270 101 S11 4000 4,31 4,72 ---
S100040 INDUS1 32-900LED 7848Lm IP66 740 72W AS1 CG ND 72 7848 109 AS1 4000 3,75 4,16 ---
100041 INDUS1 32-900 32LED 7270Lm IP66 740 72W AS2 CG ND 72 7270 101 AS2 4000 3,75 4,16 ---
100042 INDUS1 32-900 32LED 7270Lm IP66 740 72W S18 CG ND 72 7270 101 S18 4000 3,75 4,16 ---
100043 INDUS1 32-900 32LED 7270Lm IP66 740 72W S11 CG DM 72 7270 101 S11 4000 3,75 4,16 ---
100044 INDUS1 32-900 32LED 7130Lm IP66 740 72W AS1 CG DM 72 7130 99 AS1 4000 3,75 4,16 ---
100045 INDUS1 32-900 32LED 7270Lm IP66 740 72W AS2 CG DM 72 7270 101 AS2 4000 3,75 4,16 ---
100046 INDUS1 32-900 32LED 7270Lm IP66 740 72W S18 CG DM 72 7270 101 S18 4000 3,75 4,16 ---
100047 INDUS1 48-1400 48LED 10710Lm IP66 740 102W S11 CG ND 102 10710 105 S11 4000 5,49 6,05 ---
100048 INDUS1 48-1400 48LED 10400Lm IP66 740 102W AS1 CG ND 102 10400 102 AS1 4000 5,49 6,05 ---
100049 INDUS1 48-1400 48LED 10250Lm IP66 740 102W AS2 CG ND 102 10250 100 AS2 4000 5,49 6,05 ---
100050 INDUS1 48-1400 48LED 10250Lm IP66 740 102W S18 CG ND 102 10250 100 S18 4000 5,49 6,05 ---
100082 INDUS1 48-1400 48LED 11270Lm IP66 740 102W AS7 CG ND 102 11270 110 AS7 4000 5,49 6,05 ---
S100051 INDUS1 48-1400 10710Lm IP66 740 102W S11 CG DM 102 10710 105 S11 4000 5,49 6,05 ---
100052 INDUS1 48-1400 48LED 10400Lm IP66 740 102W AS1 CG DM 102 10400 102 AS1 4000 5,49 6,05 ---
100053 INDUS1 48-1400 48LED 10250Lm IP66 740 102W AS2 CG DM 102 10250 100 AS2 4000 5,49 6,05 ---
100054 INDUS1 48-1400 48LED 11270Lm IP66 740 102W S18 CG DM 102 11270 110 S18 4000 5,49 6,05 ---
100074 INDUS1 64-1400 64LED 13370Lm IP66 740 144W S11 CG DM 144 13370 93 S11 4000 5,92 6,48 ---
100075 INDUS1 64-1400 64LED 13536Lm IP66 740 144W AS1 CG DM 144 13536 94 AS1 4000 5,92 6,48 ---
100076 INDUS1 64-1400 64LED 14544Lm IP66 740 144W AS2 CG DM 144 14544 101 AS2 4000 5,92 6,48 ---
100077 INDUS1 64-1400 64LED 13680Lm IP66 740 144W S18 CG DM 144 13680 95 S18 4000 5,92 6,48 ---
100078 INDUS1 64-1400 64LED 13370Lm IP66 740 144W S11 CG ND 144 13370 93 S11 4000 5,92 6,48 ---
100079 INDUS1 64-1400 64LED 13536Lm IP66 740 144W AS1 CG ND 144 13536 94 AS1 4000 5,92 6,48 ---
100080 INDUS1 64-1400 64LED 14544Lm IP66 740 144W AS2 CG ND 144 14544 101 AS2 4000 5,92 6,48 ---
100081 INDUS1 64-1400 64LED 13680Lm IP66 740 144W S18 CG ND 144 13680 95 S18 4000 5,92 6,48 ---
100088 INDUS1 64-1400 64LED 15169Lm IP44 740 165W S11 CG DM Emergency 3H 144 15169 105 S11 4000 6,48 7,04 ---

Generate PDF

Package dimensions
L665 x W130 x H115 mm  -   0,010 CBM
L980 x W130 x H115 mm  -   0,015 CBM
L1470 x W130 x H115 mm  -   0,022 CBM



Optic Type AS2 Optic Type S11 Optic Type AS1 Optic Type S18
555+5  444+4  Heidi_o Tina 3-www



Suspension Bracket ( Included)

4-1

Wall mounting bracket ( Optional)

17

Type

INDUS 1 power LED

Light source
Power LEDs

Light color
2700 - 5650 K

Color Rendering Index
Ra > 70

Power consumption
40 W, 55 W, 72W, 85W, 103W, 144W

Interfaces (optional)
DALI DT 6, DSI, switchDIM, corridorFUNCTION

Emergency module 1-3h (optional)

Integrated motion senor (optional)

Driver
198 – 264 VAC / 170 – 280 VDC

Inrush current (peak / duration)
60 A / 200 μs

Suitable for mains voltage peaks (burst/surge)
up to 4 kV

Optic
Medium beam (MB),  Wide beam (WB), Asymmetric (AS)

Optical cover
PC, PMMA, Class

Resistance to mechanical impact
IK07 / IK08

Protection Classes
Class I

Connection
Supply cable 1,00 m

Material
Heat sink: aluminum extrusion, anodized
Mounting bracket: steel

Color
Grey

Operating temperature
-40°C ≤ Ta ≤ +70°C

Lifetime
L80B10    60000 h (Ts = 85°)

Maintenance
Optical module sealed for life
No internal cleaning required
Bracket for suspended mounting

Remarks
Luminaries are ready to install

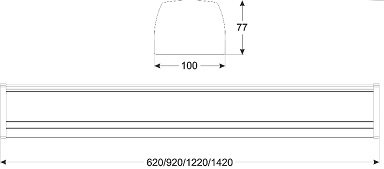

Size
620 x 97 x 70 mm
920 x 97 x 70 mm
1420 x 97 x 70 mm
